Hood Primary Latch Release Cable Handle Replacement

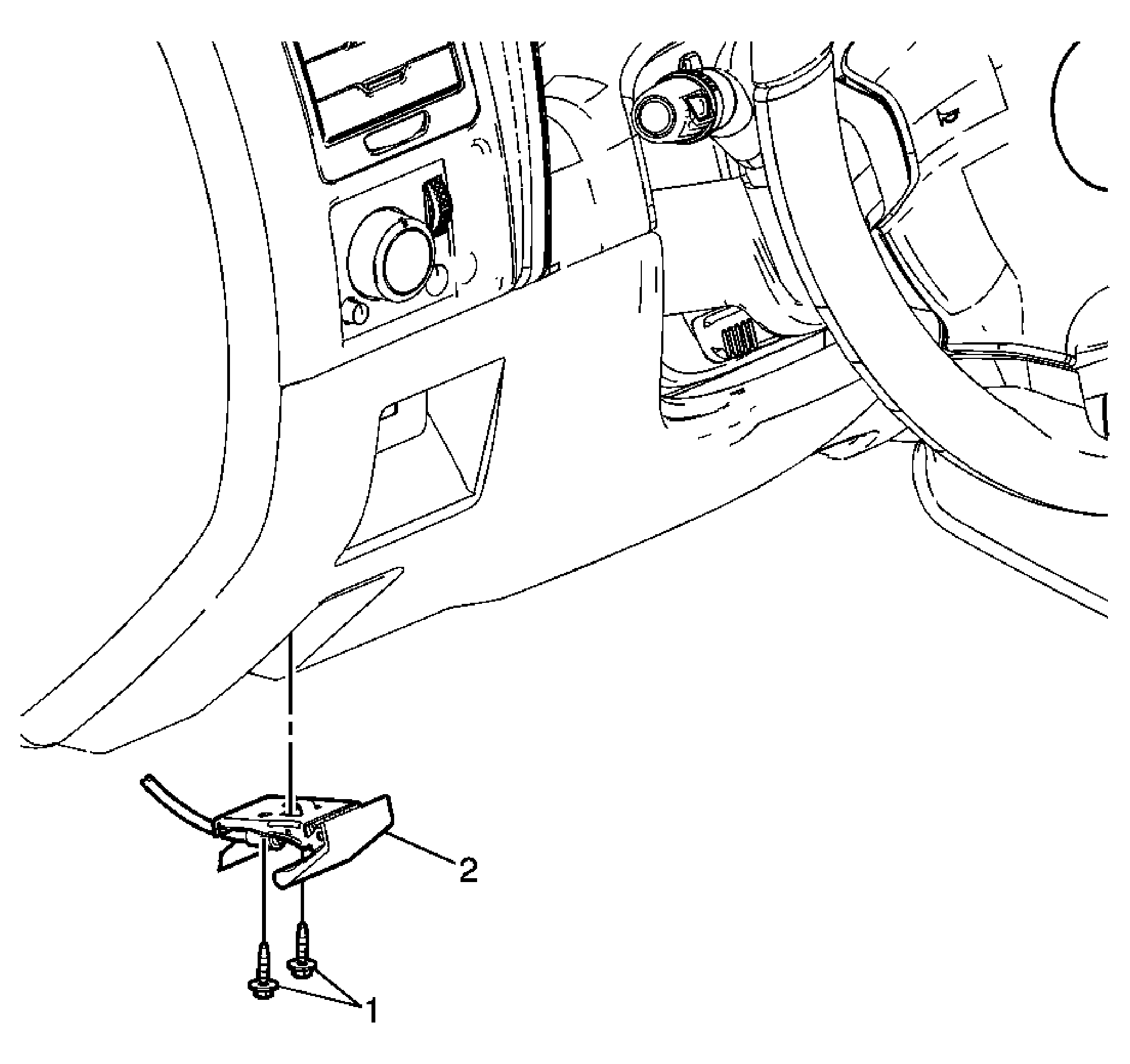

Fig 1: Hood Primary Latch Release Cable Handle
GM1646885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Hood Release Cable Handle Screws (Qty: 2)

Tighten:  2 N.m (18 lb in)
2 Hood Release Handle Assembly
