Body Side Trim Panel Replacement - Left Side

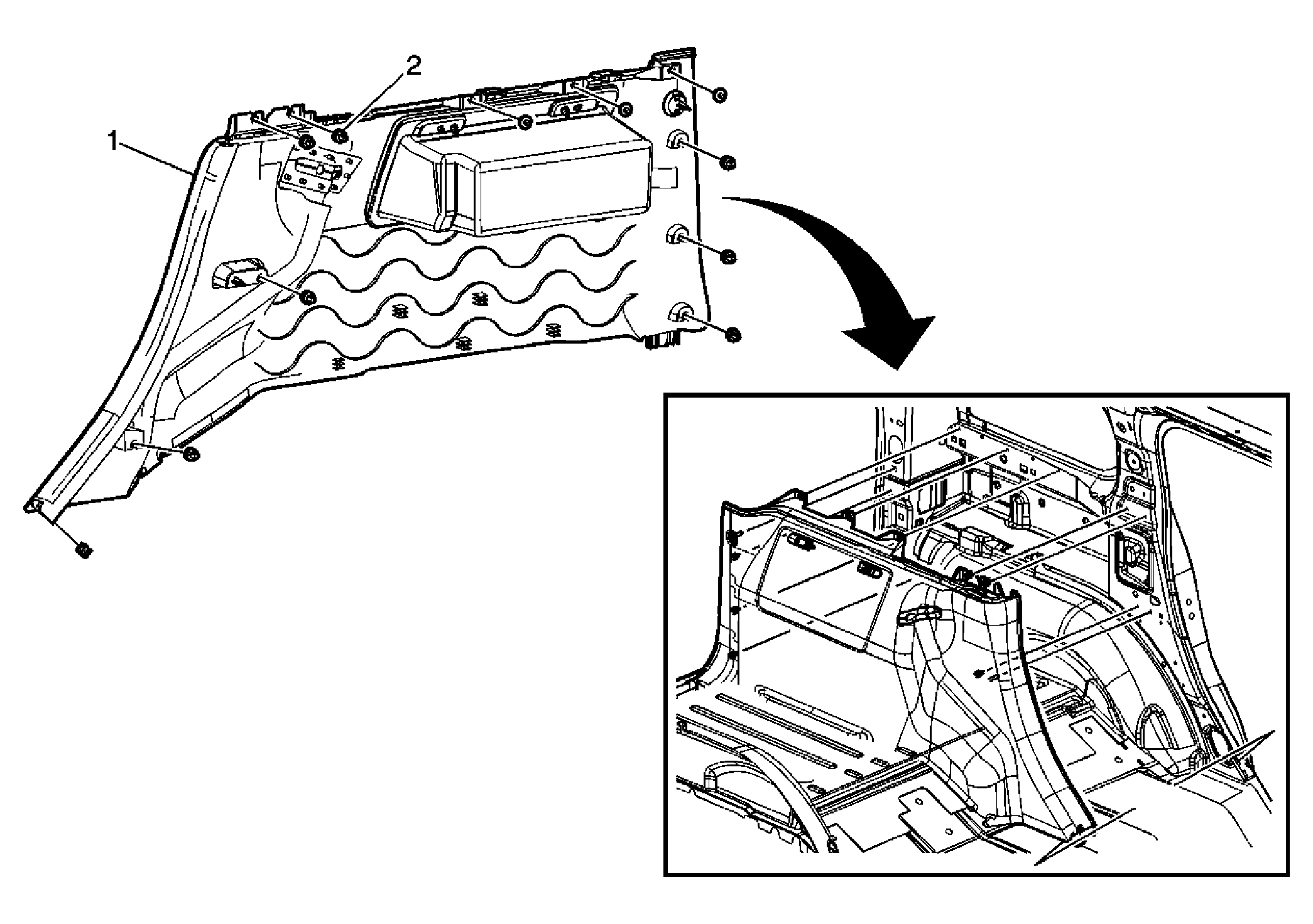

Fig 1: Body Side Trim Panel - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement . Disconnect the rear seat belt. Refer to Rear Seat Belt Retractor Replacement . Remove the rear body side upper trim. Refer to Body Side Rear Upper Garnish Molding Replacement .
1	Panel Assembly, Body Side Lower Trim Tip: Pull the seat belt through the trim panel.
2	Retainer, Body Side Lower Trim Panel (Qty: 11)

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement .
Disconnect the rear seat belt. Refer to Rear Seat Belt Retractor Replacement .
Remove the rear body side upper trim. Refer to Body Side Rear Upper Garnish Molding Replacement .

Panel Assembly, Body Side Lower Trim
Tip: Pull the seat belt through the trim panel.

Retainer, Body Side Lower Trim Panel (Qty: 11)
