Rear Side Door Sill Plate Replacement

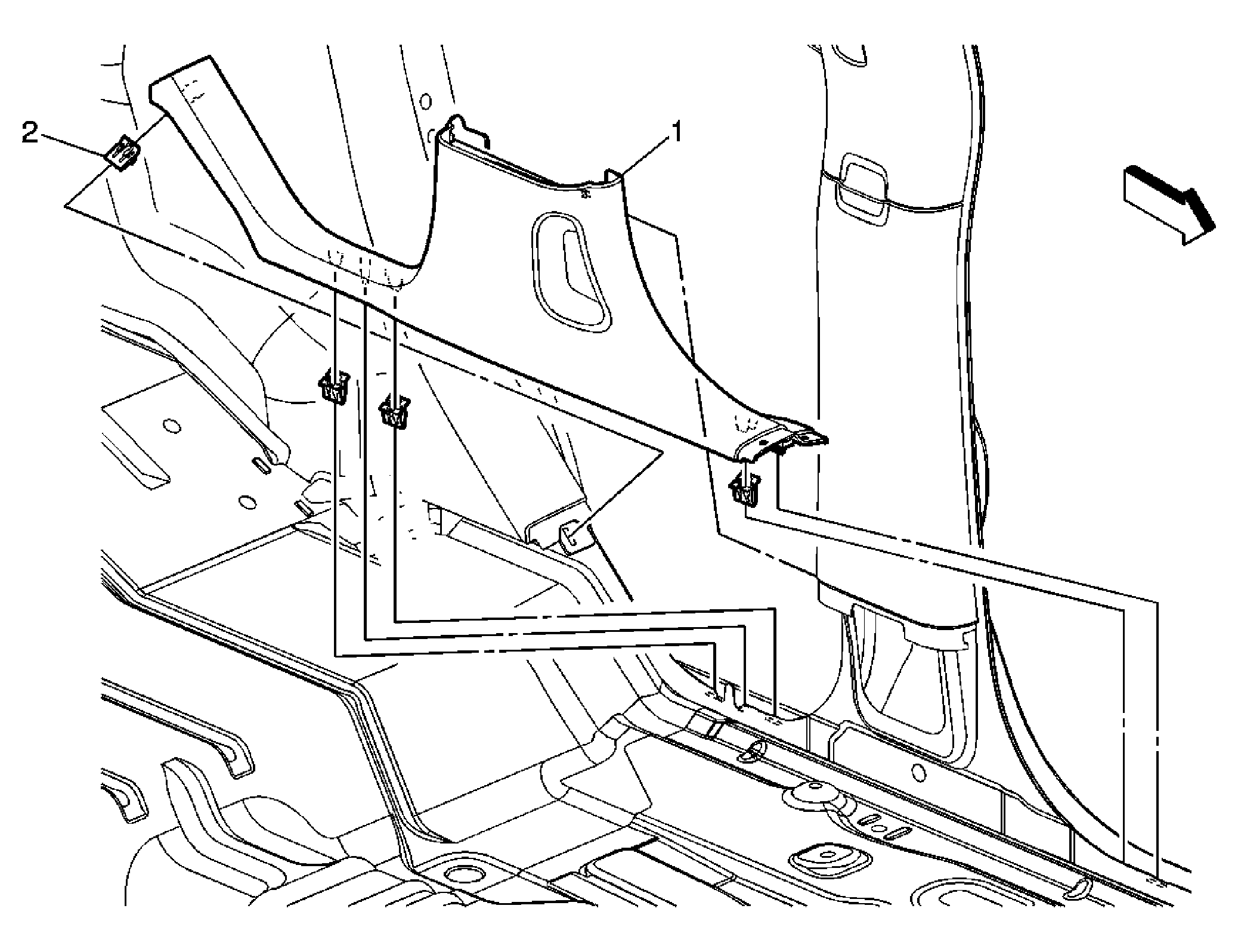

Fig 1: Rear Side Door Sill Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedures:  Remove the front door sill trim plate. Refer to Front Side Door Sill Plate Replacement .
1	Plate Assembly, Rear Side Door Sill Trim
2	Clip, Rear Side Door Sill Trim (Qty:4)
