Body Side Rear Upper Garnish Molding Replacement

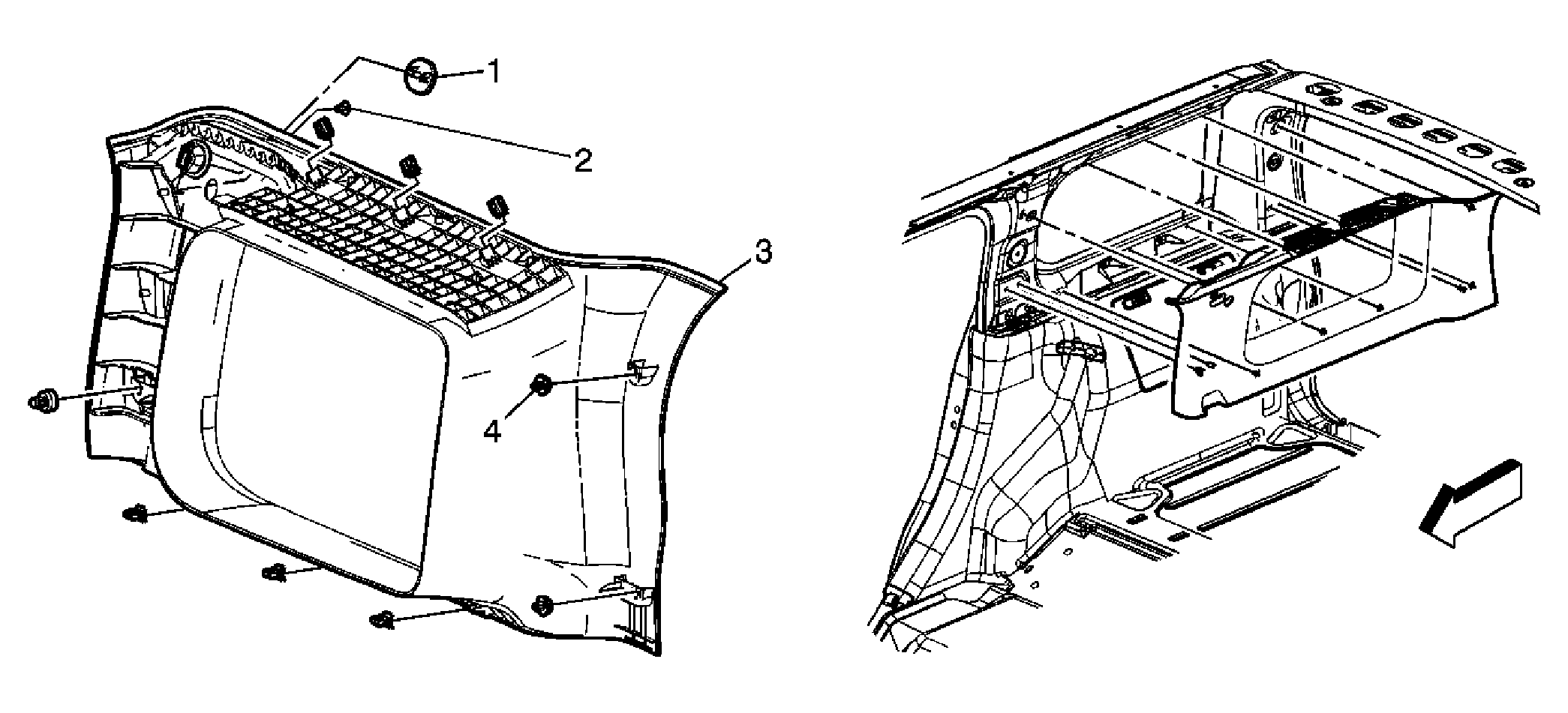

Fig 1: Body Side Rear Upper Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Body Side Garnish Bolt Hole Finish Plug
2	Upper Body Side Garnish Screw NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
3	Upper Body Side Garnish Molding Assembly
4	Upper Body Side Garnish Retainer (Qty: 9)
