Rear Seat Belt Retractor Replacement

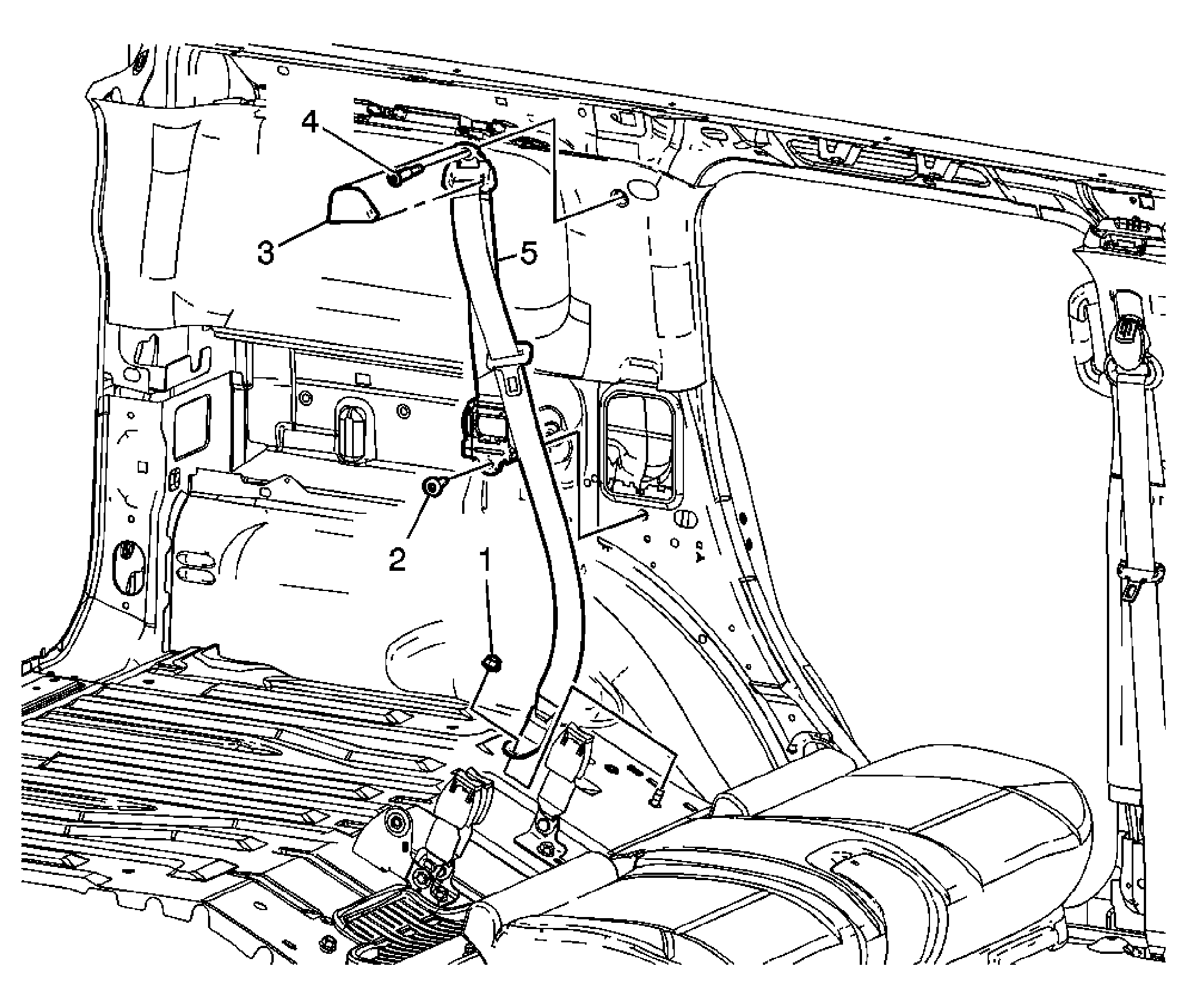

Fig 1: Seat Belt Retractor - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement . Remove the rear body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side or Body Side Trim Panel Replacement - Right Side .
1	Nut, Rear Seat Shoulder Belt Tighten: 52 N.m (38 lb ft)
2	Bolt, Rear Seat Shoulder Belt Retractor Tighten: 52 N.m (38 lb ft)
3	Bezel, Rear Shoulder Belt Guide Opening
4	Bolt, Rear Seat Shoulder Belt Guide Tighten: 52 N.m (38 lb ft)
5	Belt Assembly, Rear Seat Belt Retractor
