Front Fender Replacement - Right Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

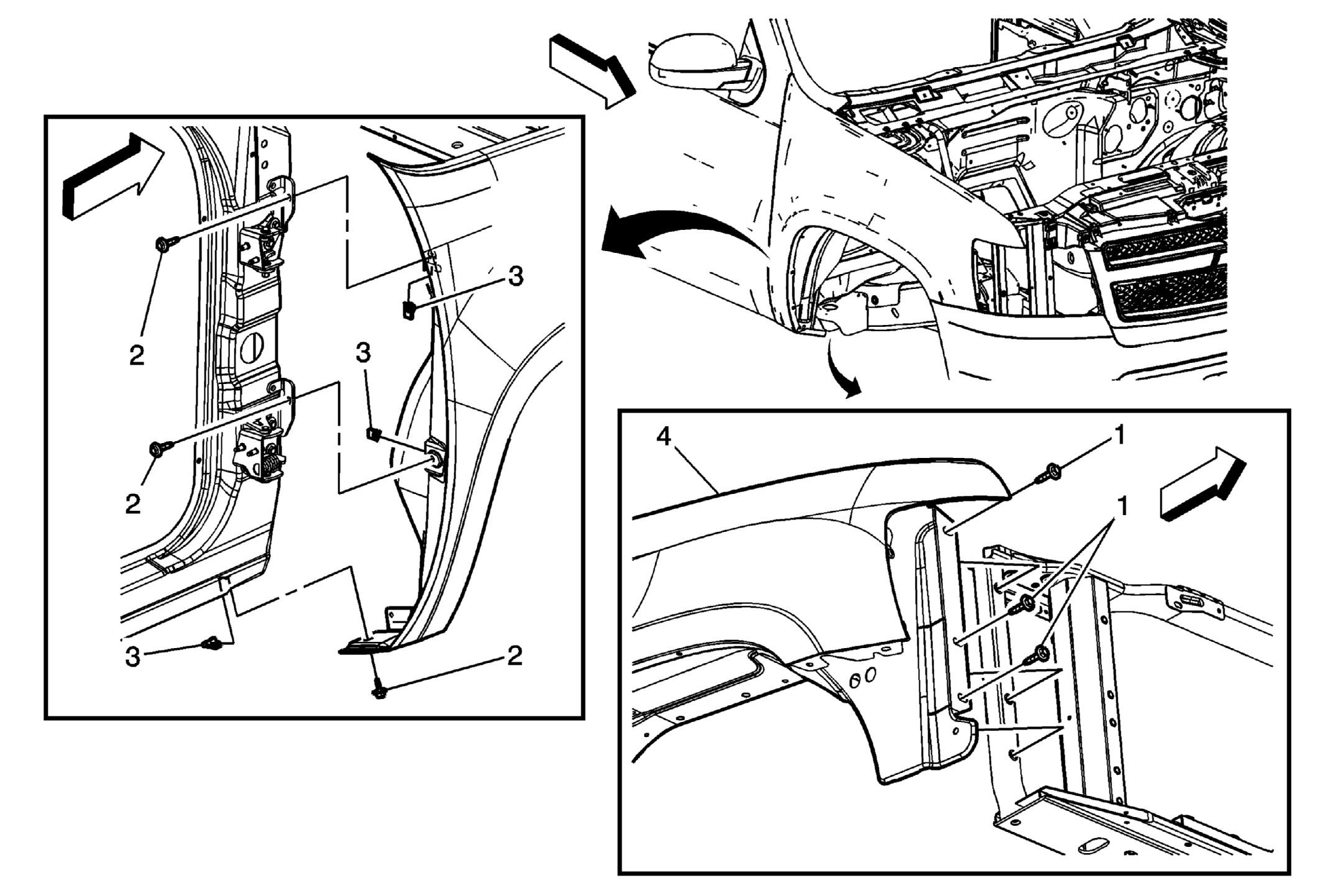

Fig 1: Front Fender Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) . Remove the upper rear fender bracket. Refer to Fender Bracket Replacement - Upper Rear . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner box tray. Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling system. Refer to Surge Tank Replacement . Remove the battery tray. Refer to Battery Tray Replacement . Remove the right hood hinge. Refer to Hood Hinge Replacement . Remove the right hood link. Refer to Hood Link Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Fender Mounting Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Fender Mounting Bolts (Qty: 3) Tighten: 25 N.m (18 lb ft)
3	Fender Mounting Clips (Qty: 3)
4	Fender Assembly Tip: Transfer any necessary additional parts as needed.
