Front Wheelhouse Liner Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

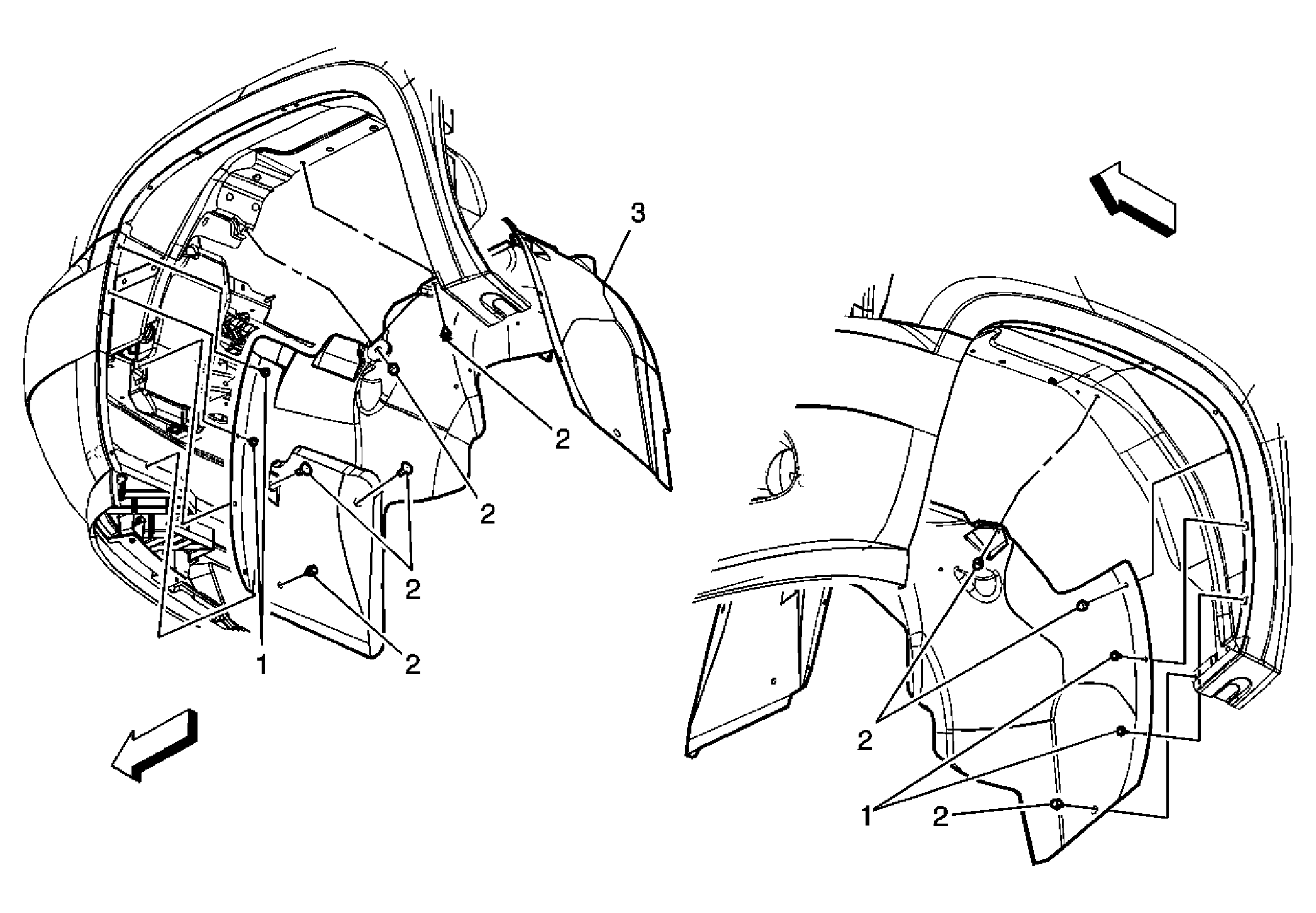

Fig 1: View Of Wheelhouse Liner, Plastic Retainers & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the appropriate tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Wheelhouse Liner Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Wheelhouse Liner Plastic Retainers (Qty: 8)
3	Wheelhouse Liner Tip: Before attempting to remove the wheelhouse liner remove any plastic retainers and/or bolts passing through or attached to the wheelhouse liner.
