Hood Hinge Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

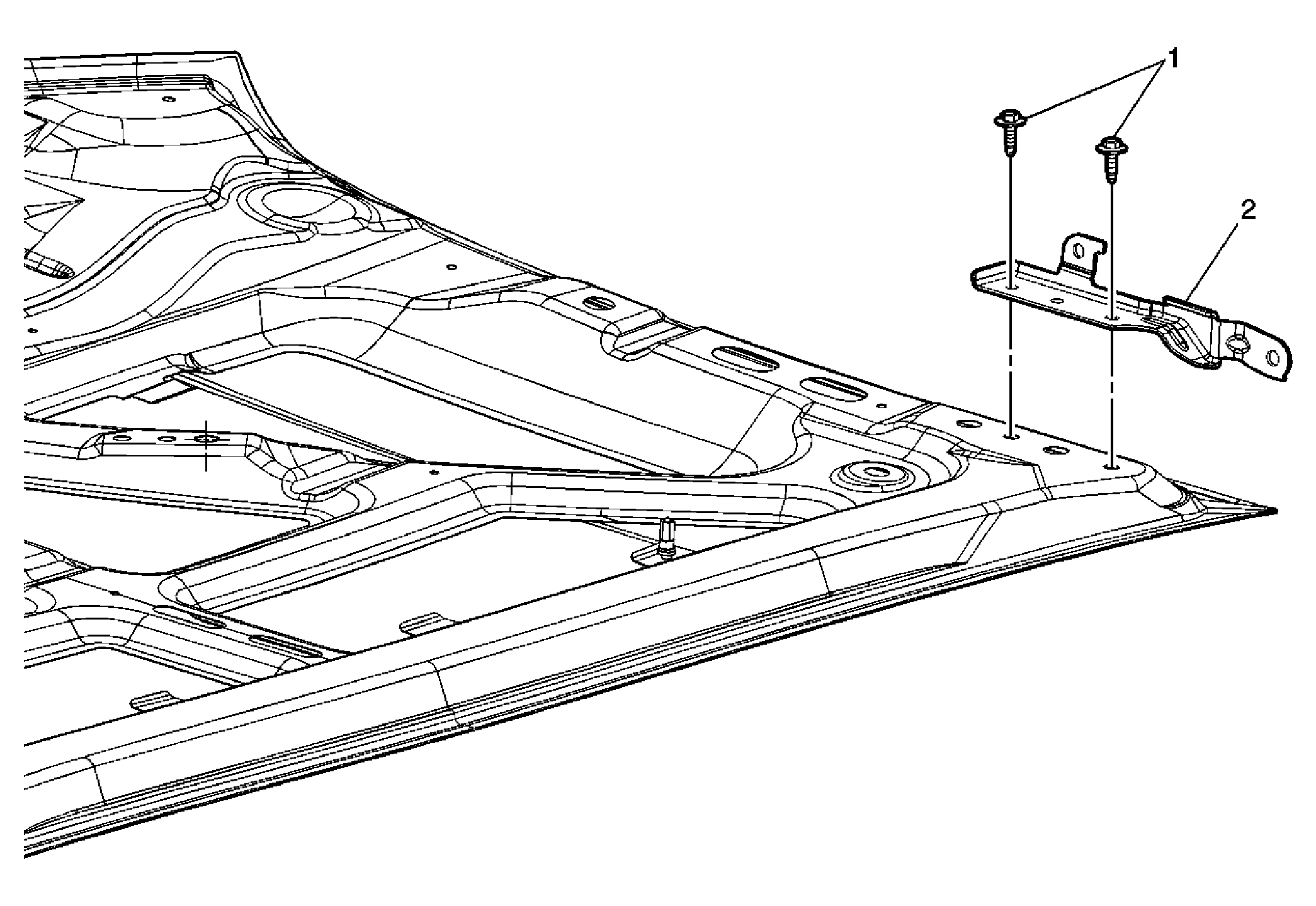

Fig 1: View Of Hood Hinge & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure Disconnect the hood strut rod. Remove the hood. Refer to Hood Replacement .
1	Hood Hinge Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Hood Hinge (Qty: 2)

Callout

Component Name

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure

Disconnect the hood strut rod.
Remove the hood. Refer to Hood Replacement .

Hood Hinge Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Hood Hinge (Qty: 2)
