Front Fender Replacement - Left Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

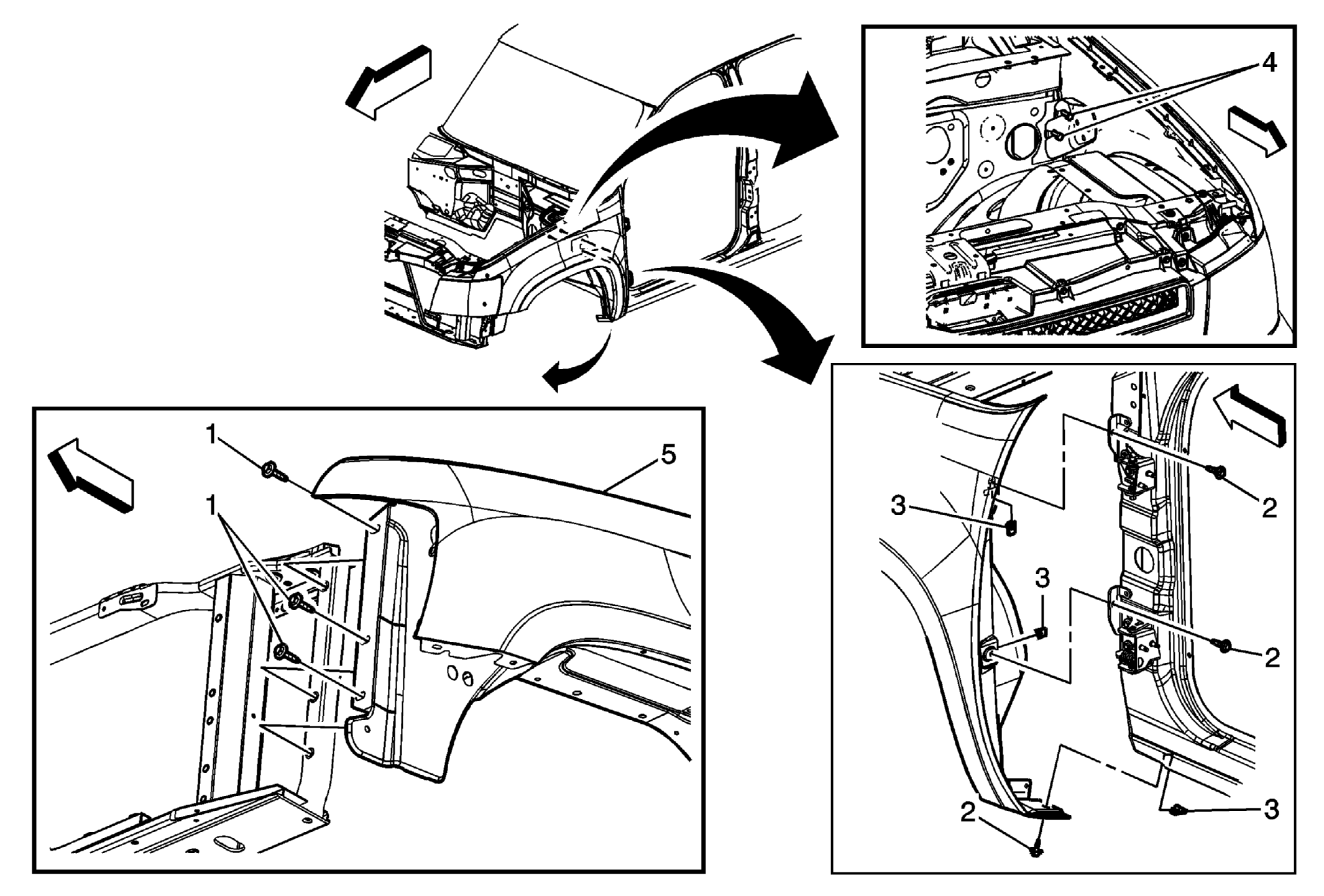

Fig 1: View Of Fender Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamp. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) . Remove the radiator support diagonal brace. Refer to Brace Replacement - Radiator Support Diagonal . Remove the upper rear fender bracket. Refer to Fender Bracket Replacement - Upper Rear . Remove the auxiliary battery tray. Remove the left hood hinge. Refer to Hood Hinge Replacement . Remove the left hood link. Refer to Hood Link Replacement . Remove the underhood electrical center/junction block. Refer to Underhood Electrical Center or Junction Block Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Fender Mounting Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Fender Mounting Bolts (Qty: 3) Tighten: 25 N.m (18 lb ft)
3	Fender Mounting Clips (Qty: 3)
4	Fender Mounting Nuts (Qty: 2) Tighten: 25 N.m (18 lb ft)
5	Fender Assembly Tip: Transfer any necessary additional parts as needed.
