Rear Seat Back Cushion Frame Replacement (Tahoe/Yukon/Escalade with Bucket)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

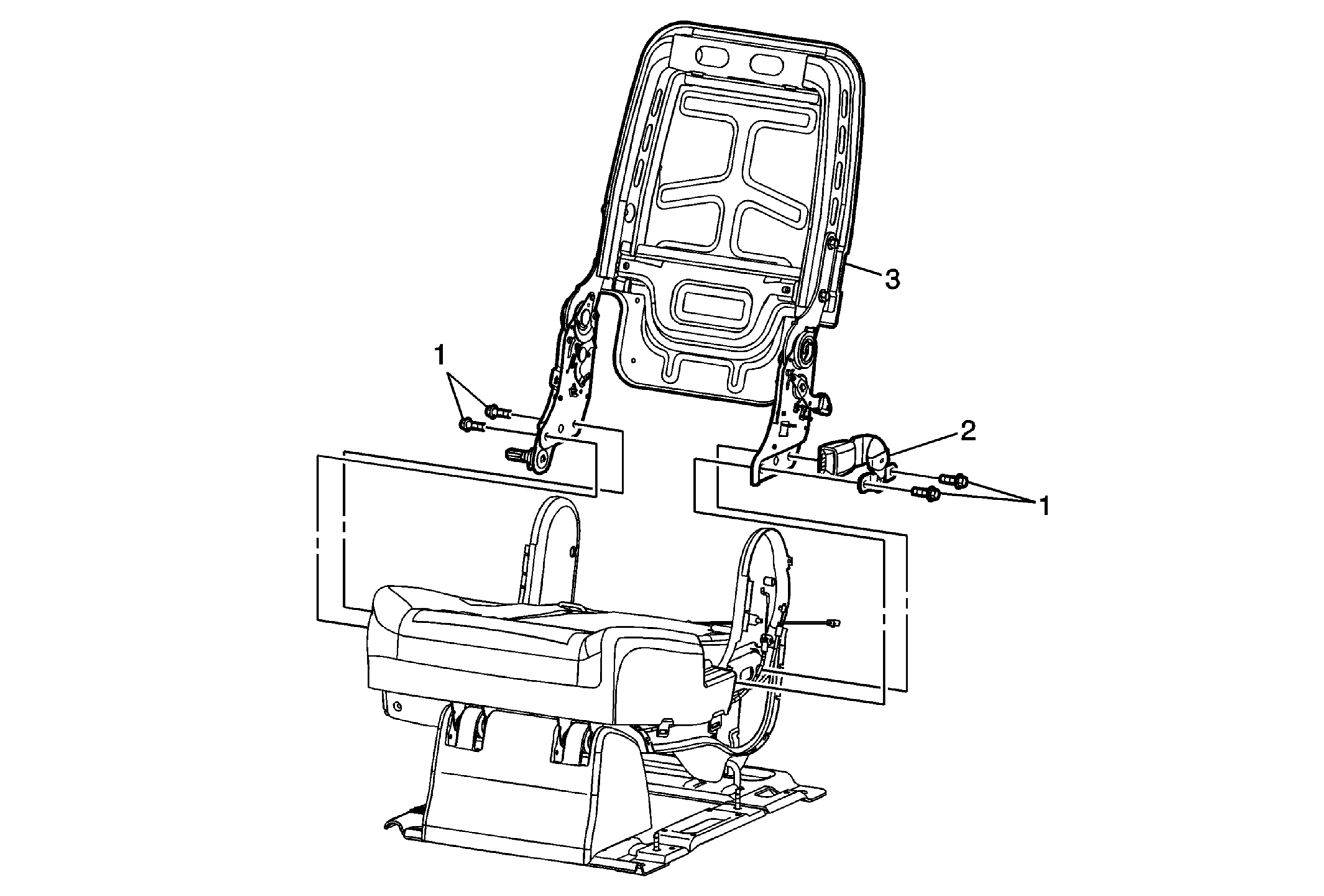

Fig 1: View Of Rear Seat Back Cushion Frame, Bolts & Buckle Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Replacement (Tahoe with HP2) or Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Bucket Seat) . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Tahoe/Yukon/Escalade with Bucket) or Rear Seat Back Cushion Cover and Pad Replacement (Tahoe/Yukon/Escalade with Split Bench) or Rear Seat Back Cushion Cover and Pad Replacement (Avalanche/Escalade EXT) .
1	Rear Seat Back Recliner Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Rear Seat Belt Buckle Assembly
3	Rear Seat Back Cushion Frame Procedure: Transfer components as necessary.
