Rear Seat Back Cushion Cover & Pad Replacement (Tahoe/Yukon/Escalade with Split Bench)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

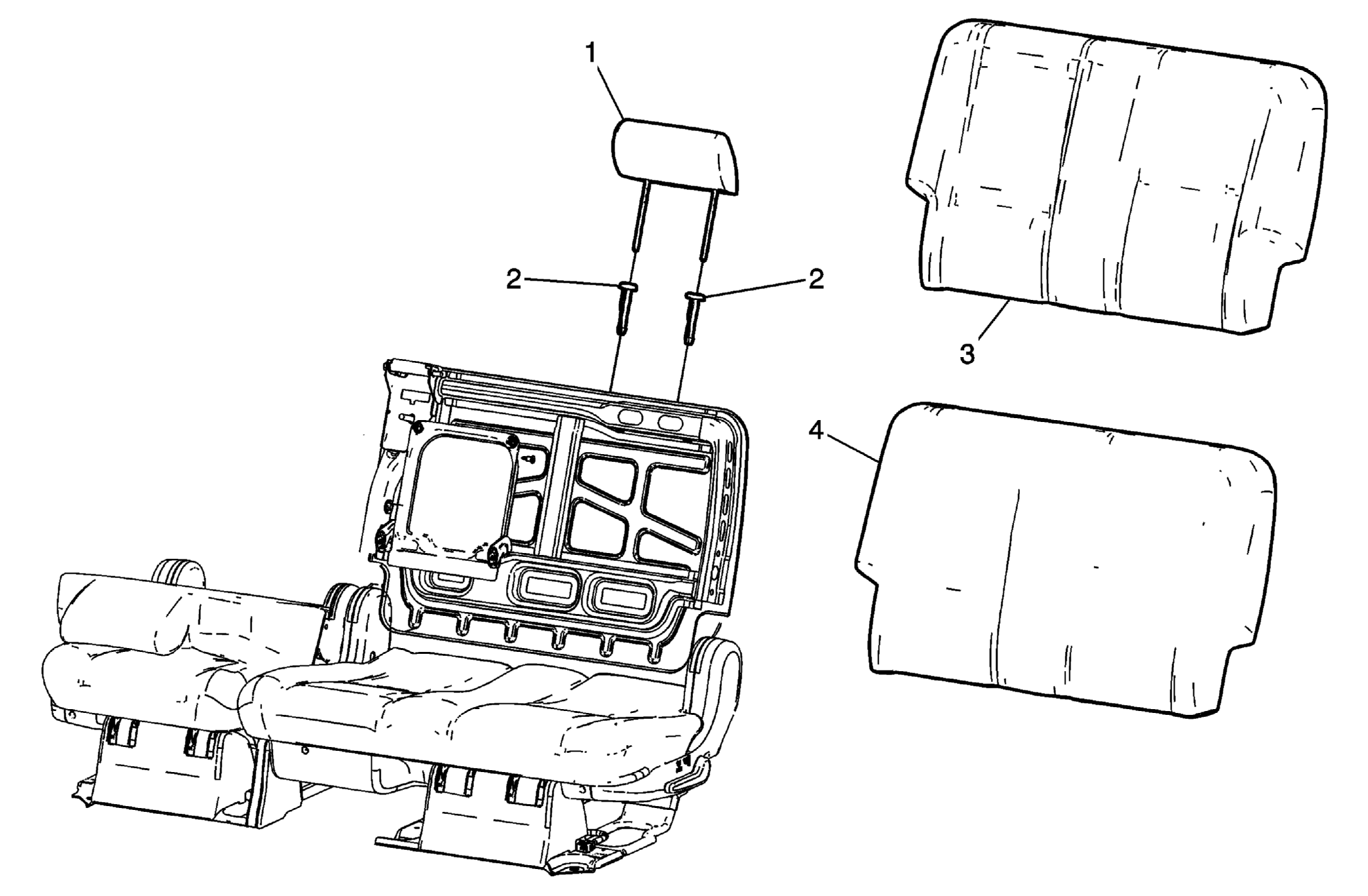

Fig 1: View Of Rear Seat Back Cushion Cover, Pad & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat. Refer to Rear Seat Replacement (Tahoe with HP2) or Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Bucket Seat) .
1	Rear Seat Head Restraint Procedure Depress the button on the inboard head restraint guide to raise the head restraint to the full up position. Insert a small diameter tool into the hole on the inboard side of the outboard head restraint guide and pull upward to remove.
2	Rear Seat Head Restraint Guides Procedure: Squeeze the bottom of the head restraint guide together and push up to remove.
3	Rear Seat Back Cushion Cover Procedure Disconnect the seat back cushion cover j-channel from the seat cushion frame. Disconnect the electrical connector if equipped with heated seat. Pull the seat back cushion cover away from the seat cushion pad to disengage the retaining channel.
4	Rear Seat Back Cushion Pad
