Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

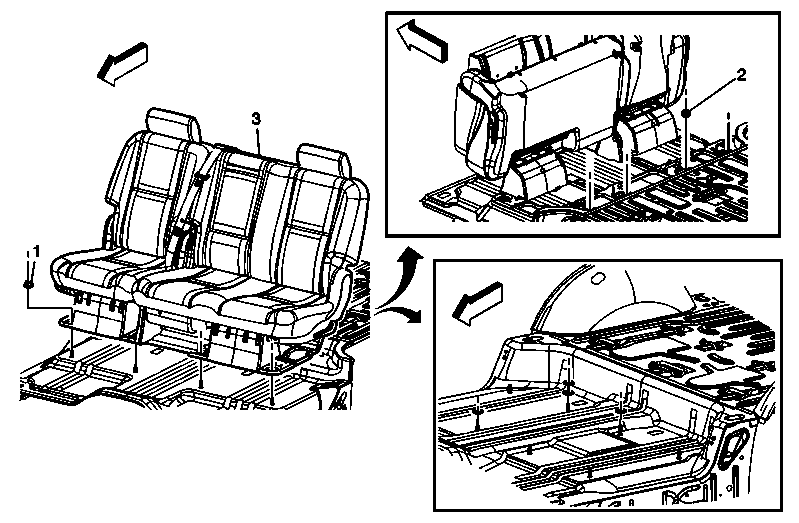

Fig 1: View Of Rear Seat Assembly & Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Assembly Forward Nut (Qty: 4) NOTE: Refer to Fastener Notice . Procedure: Fold the seat forward and remove the floor cover to access the nuts. Tighten: 45 N.m (33 lb ft)
2	Rear Seat Assembly Rearward Nut (Qty: 4) Tighten: 45 N.m (33 lb ft)
3	Rear Seat Assembly Procedure Disconnect the electrical connector, if equipped. Remove the seat with the aid of an assistant; the seat is very heavy. It is important that the washers stay in the correct locations for installation to ensure seat alignment. The rear inboard left side stud has one washer. The rear inboard right side stud has two washers. The front inboard right side stud has one washer.

Callout

Component Name

Rear Seat Assembly Forward Nut (Qty: 4)

NOTE: Refer to Fastener Notice .

Procedure:
Fold the seat forward and remove the floor cover to access the nuts.

Tighten: 45 N.m (33 lb ft)

Rear Seat Assembly Rearward Nut (Qty: 4)

Tighten: 45 N.m (33 lb ft)

Rear Seat Assembly

Procedure

Disconnect the electrical connector, if equipped.
Remove the seat with the aid of an assistant; the seat is very heavy.
It is important that the washers stay in the correct locations for installation to ensure seat alignment.
- The rear inboard left side stud has one washer.
- The rear inboard right side stud has two washers.
- The front inboard right side stud has one washer.
