Front Floor Panel Carpet Replacement (Standard Wheelbase)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

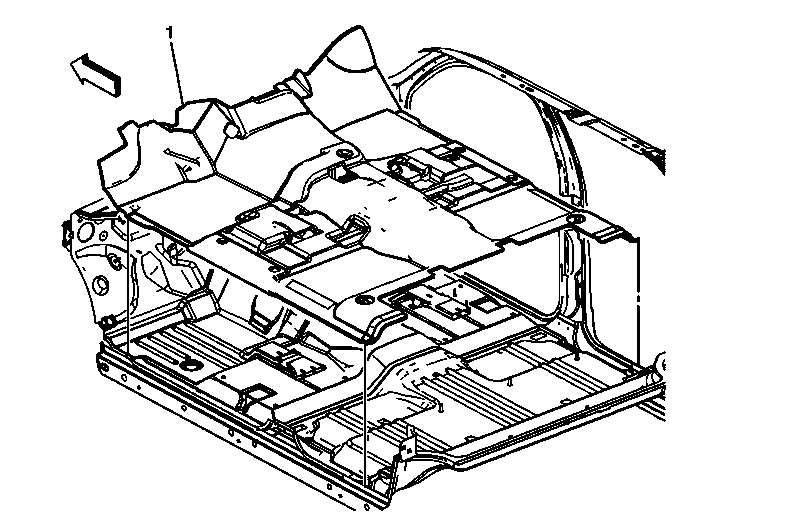

Fig 1: View Of Front Floor Panel Carpet Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove front seats. Refer to Front Seat Replacement - Bucket (without HP2) or Front Seat Replacement - Bucket (with HP2) . Remove rear seats. Refer to Rear Seat Replacement (Tahoe with HP2) or Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) or Rear Seat Replacement (Tahoe/Yukon/Escalde with Bucket Seat) and Rear Number 2 Seat Replacement (Tahoe/Yukon/Escalade) or Rear Number 2 Seat Replacement (Suburban/Yukon XL) . Remove floor console. Refer to Front Floor Console Replacement (Except Cadillac) or Front Floor Console Replacement (Cadillac) . Remove front center seat. Refer to Front Center Seat Replacement . Remove front seat belt buckles. Refer to Front Seat Belt Buckle Replacement (with HP2) or Front Seat Belt Buckle Replacement (without HP2) . Remove rear seat belt buckles. Refer to Rear Seat Belt Buckle Replacement (Split Bench) or Rear Seat Belt Buckle Replacement (Bucket) . Remove front door sill plates. Refer to Front Side Door Sill Plate Replacement . Remove rear door sill plates. Refer to Rear Side Door Sill Plate Replacement (Standard Wheelbase) or Rear Side Door Sill Plate Replacement (Extended Wheelbase) . Remove front hinge pillar trim panels. Refer to Body Hinge Pillar Trim Panel Replacement . Remove center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement .
1	Front Floor Panel Carpet Assembly Tip: Route carpet openings on left and right over floor duct openings.

Callout

Component Name

Preliminary Procedures

Remove front seats. Refer to Front Seat Replacement - Bucket (without HP2) or Front Seat Replacement - Bucket (with HP2) .
Remove rear seats. Refer to Rear Seat Replacement (Tahoe with HP2) or Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) or Rear Seat Replacement (Tahoe/Yukon/Escalde with Bucket Seat) and Rear Number 2 Seat Replacement (Tahoe/Yukon/Escalade) or Rear Number 2 Seat Replacement (Suburban/Yukon XL) .
Remove floor console. Refer to Front Floor Console Replacement (Except Cadillac) or Front Floor Console Replacement (Cadillac) .
Remove front center seat. Refer to Front Center Seat Replacement .
Remove front seat belt buckles. Refer to Front Seat Belt Buckle Replacement (with HP2) or Front Seat Belt Buckle Replacement (without HP2) .
Remove rear seat belt buckles. Refer to Rear Seat Belt Buckle Replacement (Split Bench) or Rear Seat Belt Buckle Replacement (Bucket) .
Remove front door sill plates. Refer to Front Side Door Sill Plate Replacement .
Remove rear door sill plates. Refer to Rear Side Door Sill Plate Replacement (Standard Wheelbase) or Rear Side Door Sill Plate Replacement (Extended Wheelbase) .
Remove front hinge pillar trim panels. Refer to Body Hinge Pillar Trim Panel Replacement .
Remove center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement .

Front Floor Panel Carpet Assembly
Tip: Route carpet openings on left and right over floor duct openings.
