Driver Seat and Passenger Seat Cushion Heater Replacement

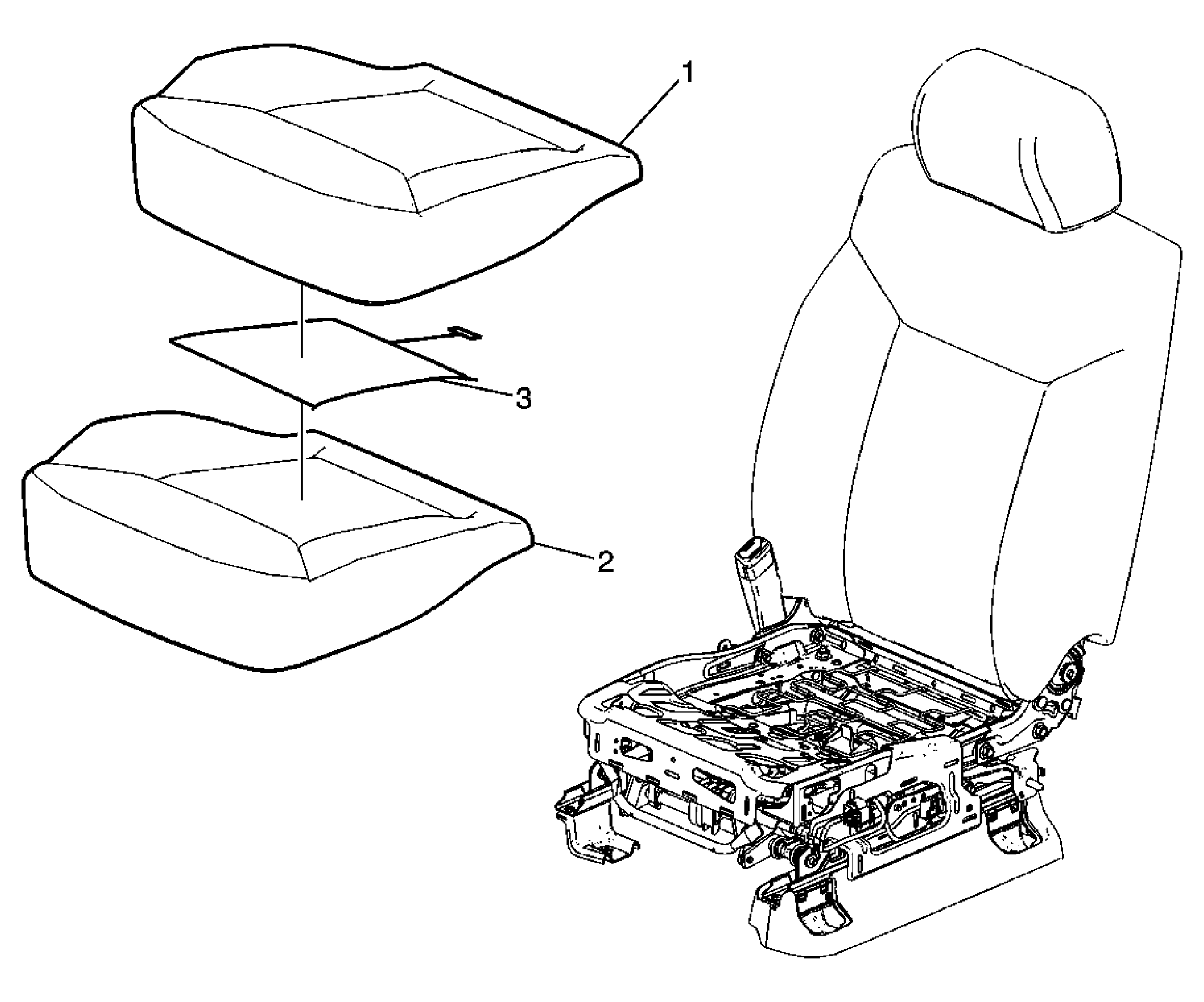

Fig 1: Driver Seat and Passenger Seat Cushion Heater Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat adjuster outer finish cover. Refer to Front Seat Cushion Outer Trim Panel Replacement . Remove the front seat adjuster outer finish cover. Refer to Front Seat Cushion Inner Trim Panel Replacement . Remove the front seat riser rear finish cover by pulling rearward.
1	Front Seat Cushion Cover and Pad Procedure Disengage the j-channel retainers from the seat cushion frame. Disconnect the electrical connector, if equipped. Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
2	Front Seat Cushion Pad Procedure: If working on the passenger seat, re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
3	Front Seat Cushion Heater (If Equipped)
