Center Pillar Lower Garnish Molding Replacement

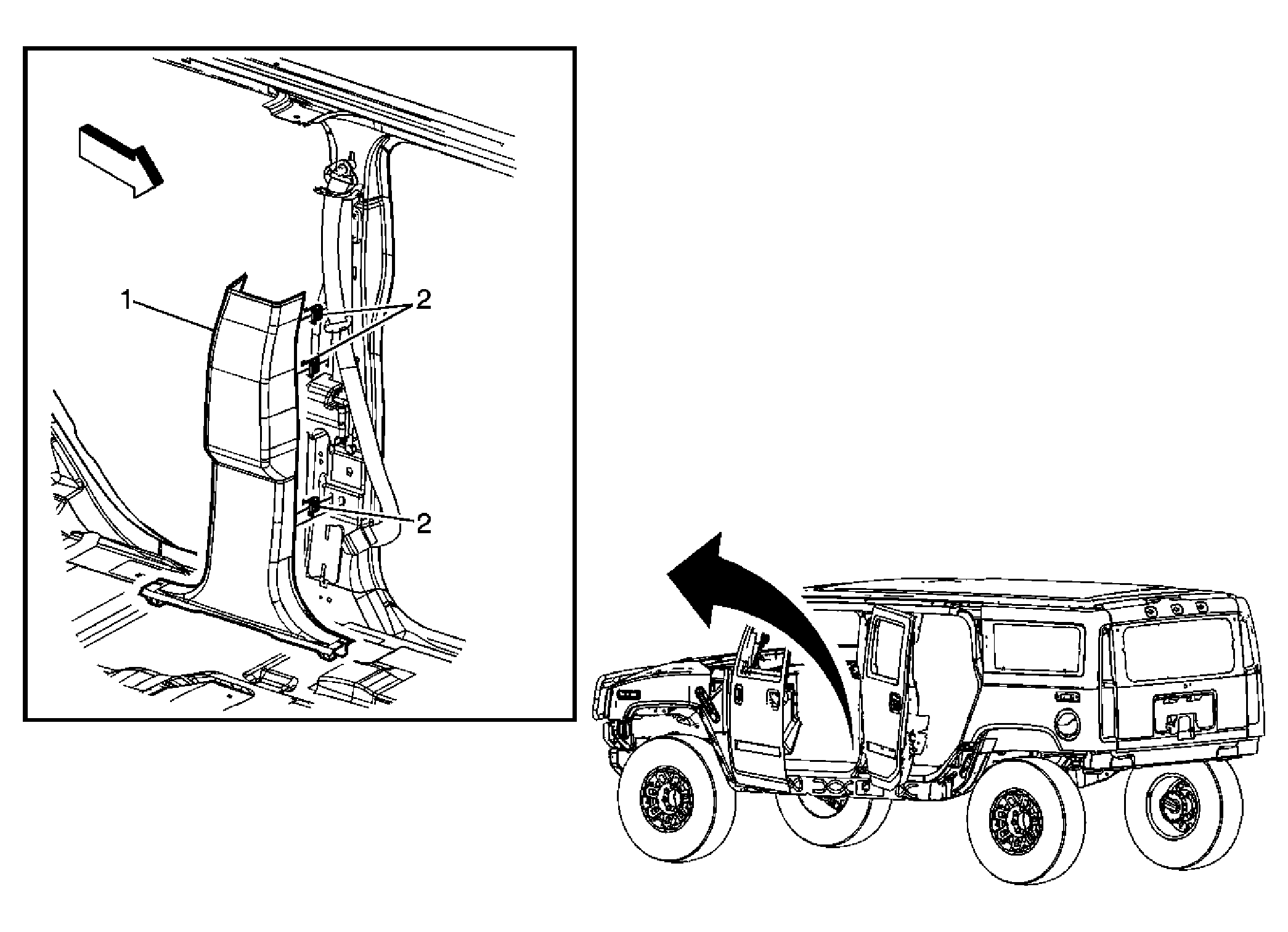

Fig 1: Center Pillar Lower Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front door sill trim plate. Refer to Front Side Door Sill Plate Replacement . Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement . Remove the center pillar upper trim panel. Refer to Center Pillar Upper Garnish Molding Replacement . Move the front seat to its full forward position.
1	Center Pillar Lower Trim Panel Assembly Procedure: Grasp the trim panel and pull it outward disengaging the clips securing it to the body.
2	Retainer Clips (Qty: 3)

Callout

Component Name

Preliminary Procedure

Remove the front door sill trim plate. Refer to Front Side Door Sill Plate Replacement .
Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement .
Remove the center pillar upper trim panel. Refer to Center Pillar Upper Garnish Molding Replacement .
Move the front seat to its full forward position.

Center Pillar Lower Trim Panel Assembly
Procedure:
Grasp the trim panel and pull it outward disengaging the clips securing it to the body.

Retainer Clips (Qty: 3)
