Front Side Door Sill Plate Replacement

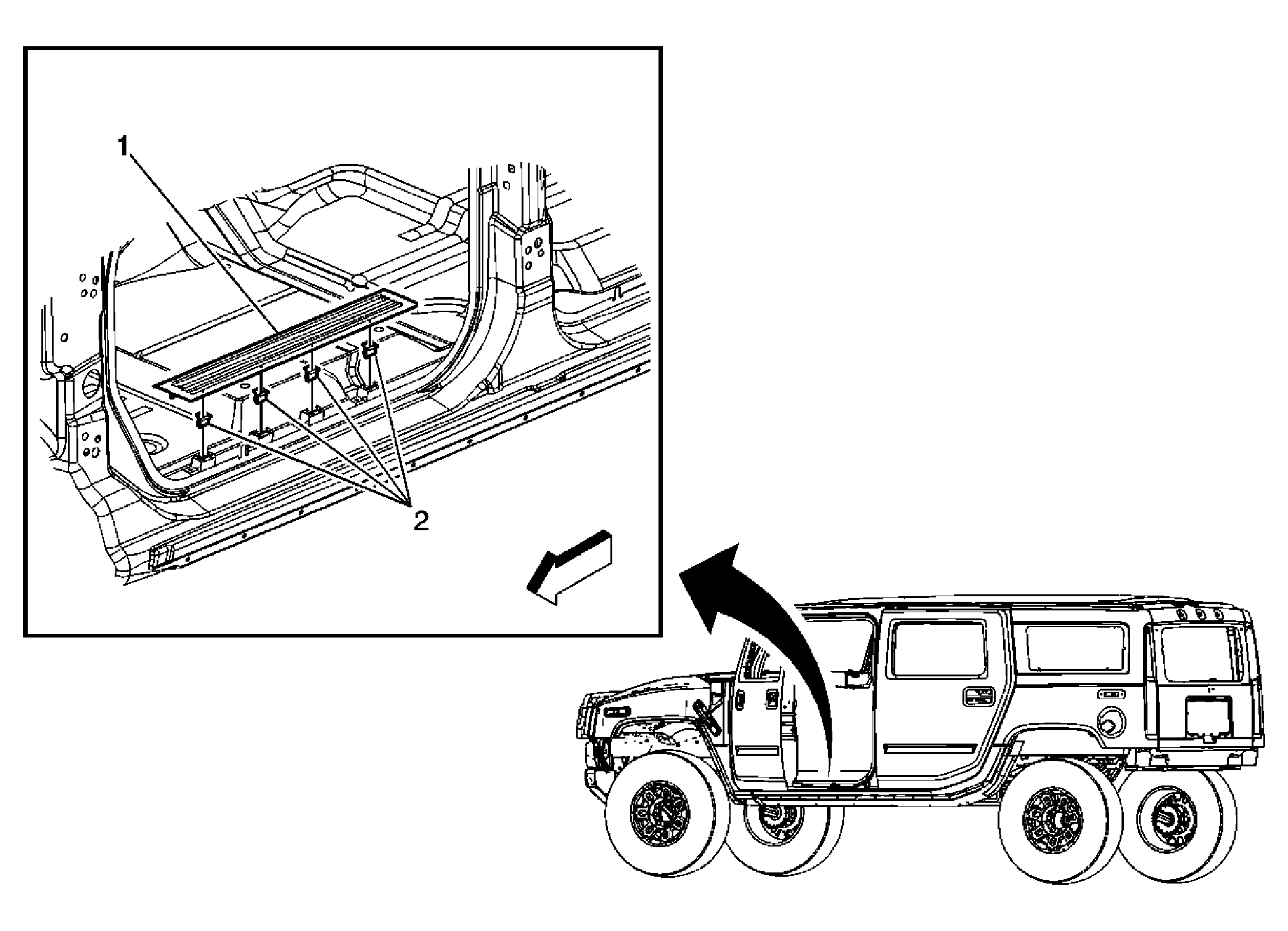

Fig 1: Front Side Door Sill Plate
GM1959651Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Side Door Sill Trim Plate Assembly
Procedure:
Grasp the trim plate and pull upward disengaging the clips securing it to the body.
2 Retainer Clips (Qty: 4)
