Center Pillar Upper Garnish Molding Replacement

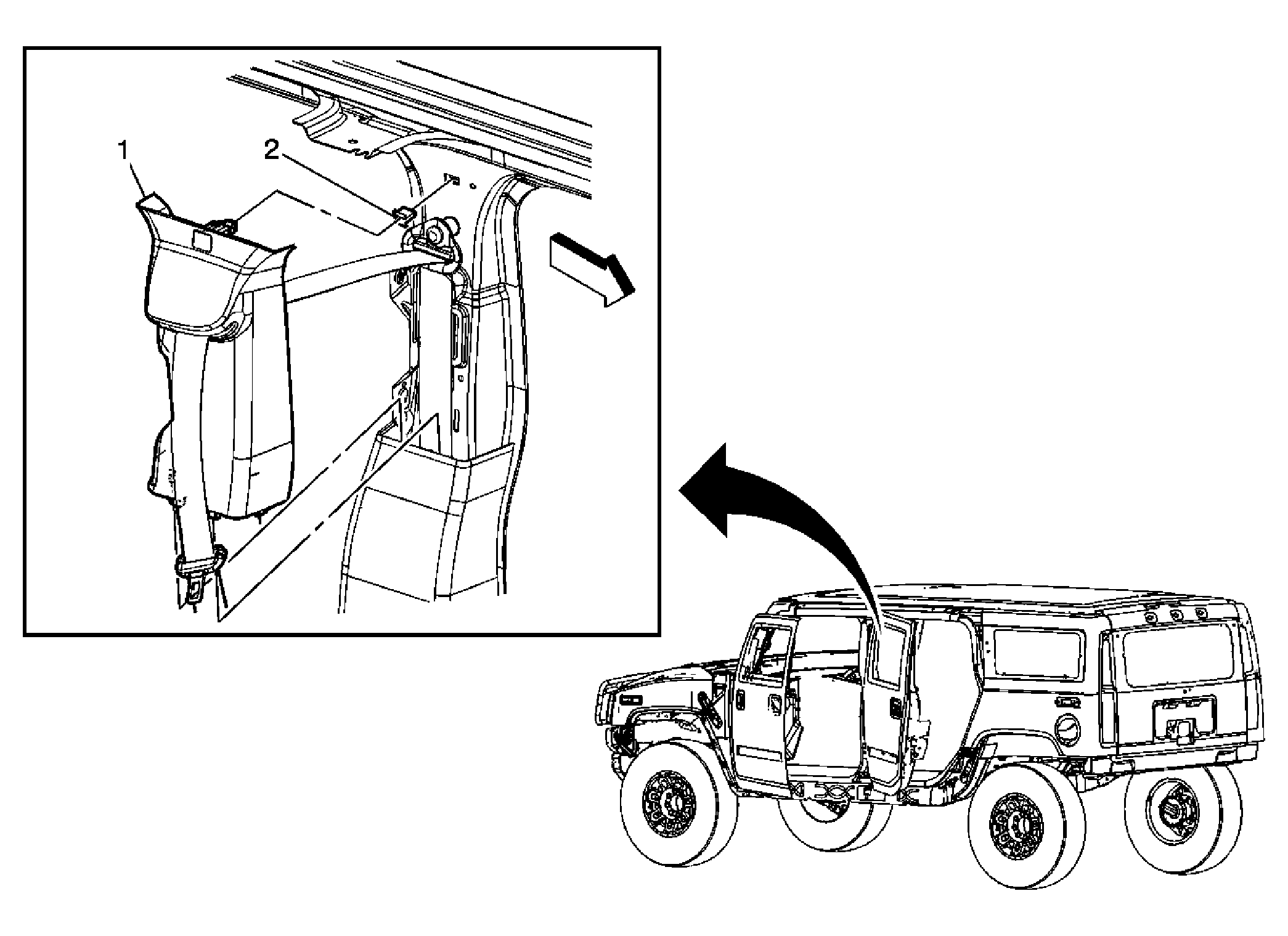

Fig 1: Center Pillar Upper Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the seat belt anchor bolt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1	Center Pillar Upper Trim Panel Assembly Procedure Grasp the trim panel and pull it outward at the top edge disengaging the clip securing it to the body. Feed the seat belt through the opening in the trim panel. Lift the panel upward disengaging it from lower center pillar trim panel.
2	Retainer Clip

Callout

Component Name

Preliminary Procedure:
Remove the seat belt anchor bolt. Refer to Seat Belt Retractor Pretensioner Replacement - Front .

Center Pillar Upper Trim Panel Assembly

Procedure

Grasp the trim panel and pull it outward at the top edge disengaging the clip securing it to the body.
Feed the seat belt through the opening in the trim panel.
Lift the panel upward disengaging it from lower center pillar trim panel.

Retainer Clip
