Rear Side Door Sill Plate Replacement
Rear Side Door Sill Plate Replacement

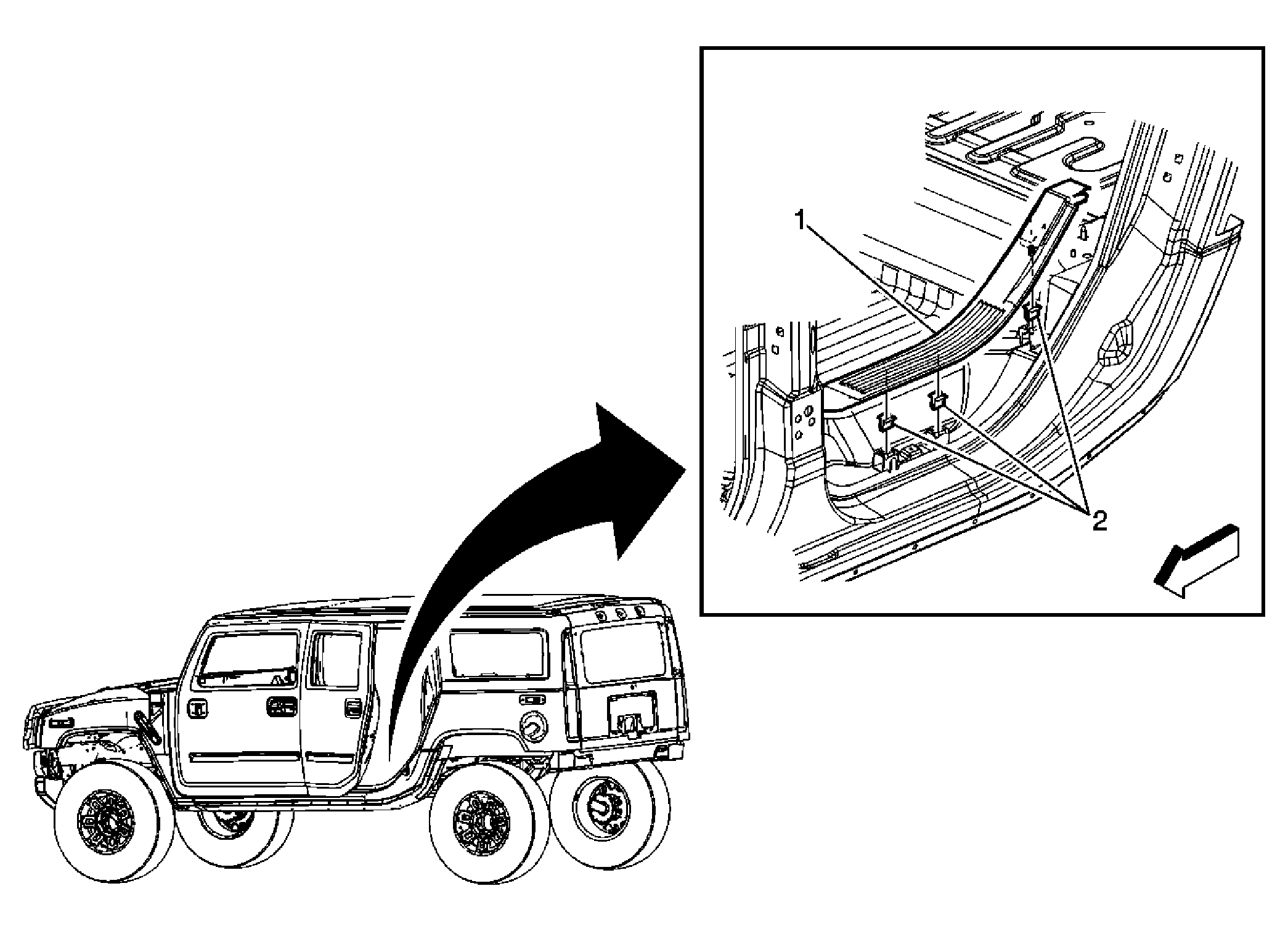

Fig 1: Rear Side Door Sill Plate
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Side Door Sill Trim Plate Assembly
Procedure:
Grasp the trim plate and pull upward disengaging the clips securing it to the body.
2
Retainer Clips (Qty: 3)
