Front Side Door Trim Panel Replacement

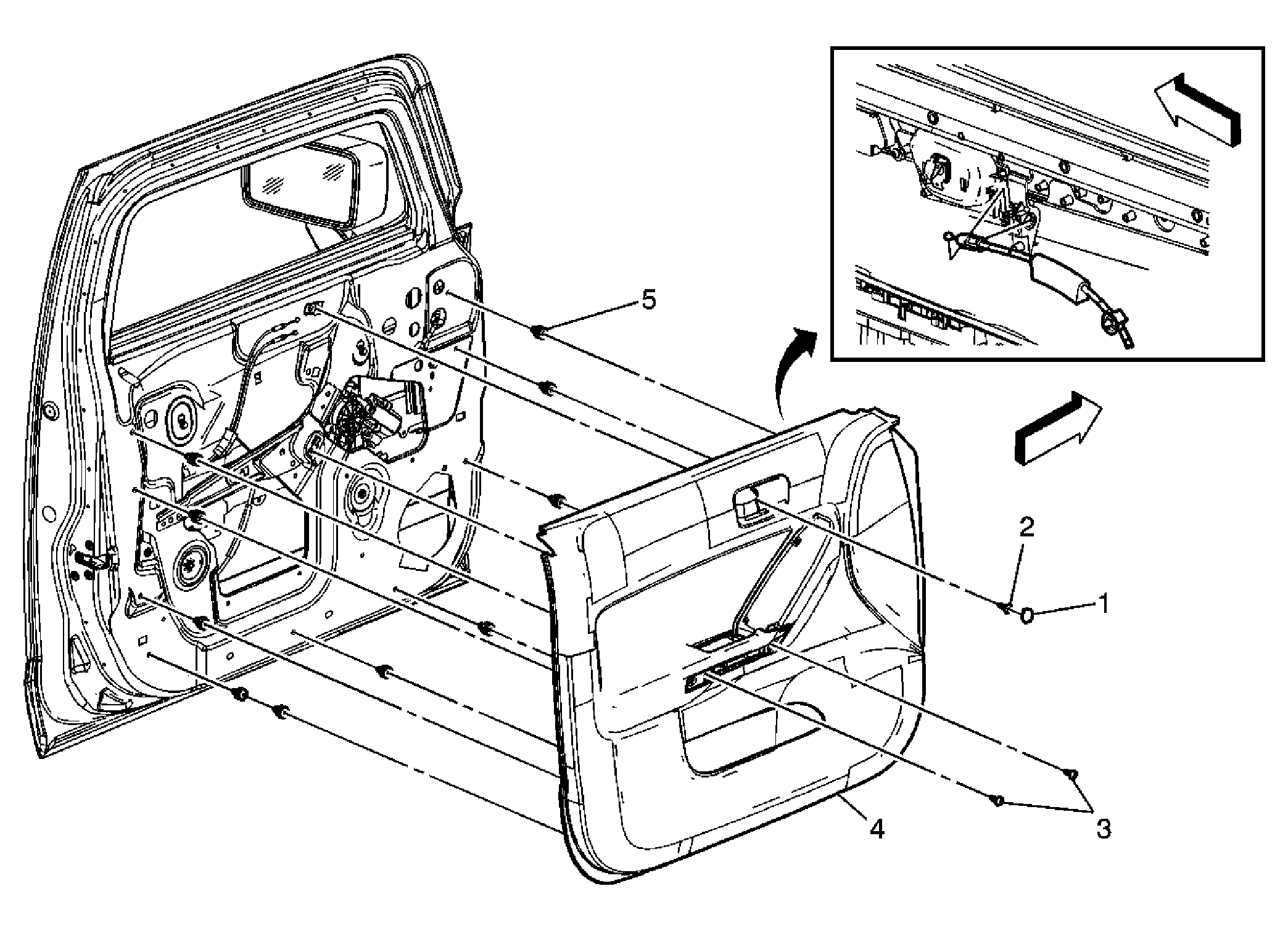

Fig 1: Removing/Installing Front Side Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove inside handle bezel. Refer to Door Inside Handle Bezel Replacement . Remove the door window switches. Refer to Door Lock and Side Window Switch Replacement - Driver Side (1st Design) or Door Lock and Side Window Switch Replacement - Driver Side (2nd Design) or Door Lock and Side Window Switch Replacement - Passenger Side .
1	Trim Bolt Accessory Hole Cover
2	Door Trim Panel Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Door Trim Panel Bolt (Qty: 2) Tighten: 9 N.m (80 lb in)
4	Side Door Trim Panel Assembly Tip: Release the inside door handle cables. Refer to Front Side Door Inside Handle Replacement . Disconnect the electrical connectors.
5	Side Door Trim Panel Retainer (Qty: 9)
