Door Lock and Side Window Switch Replacement - Passenger Side

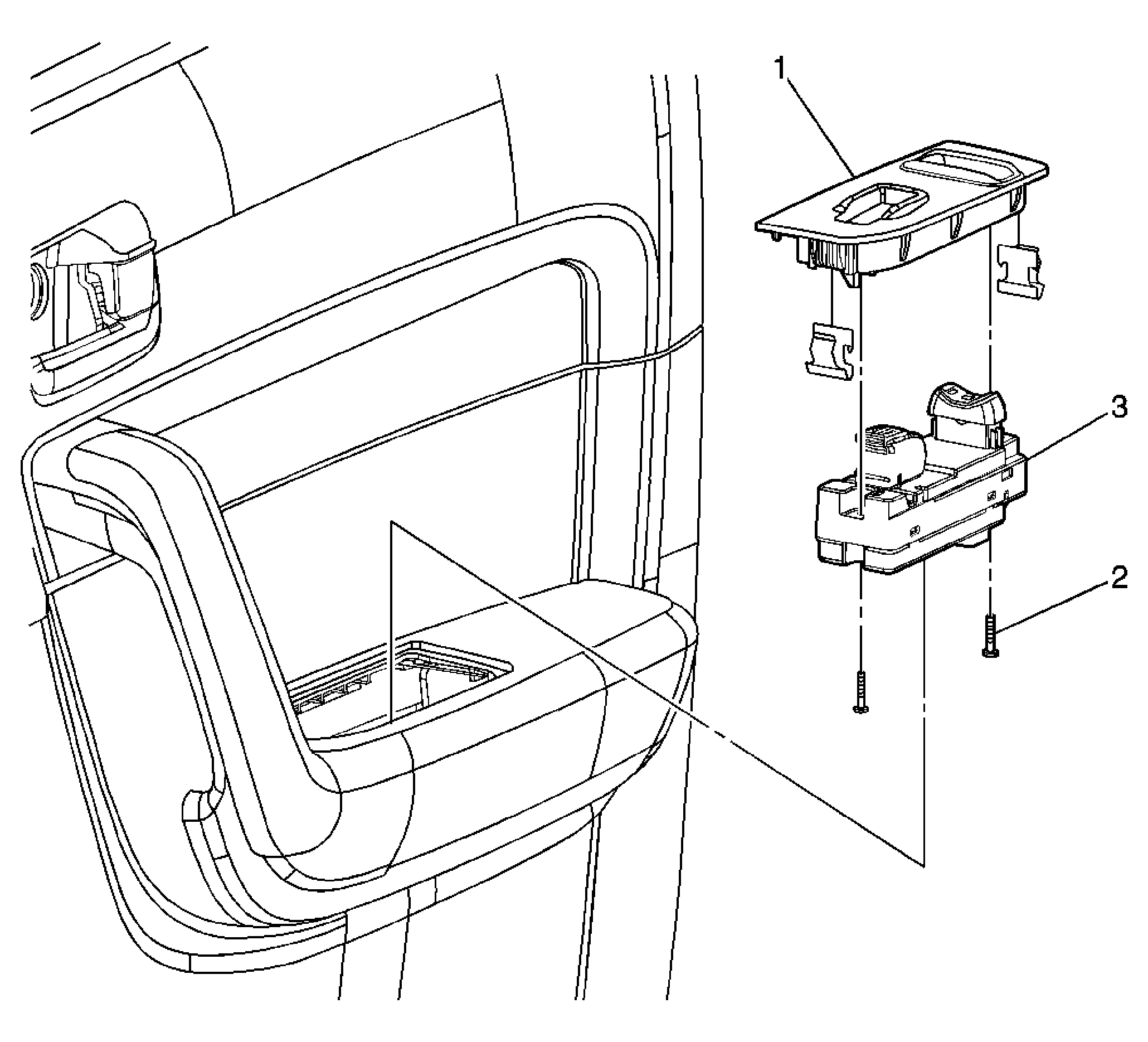

Fig 1: View Of Passenger Side Door Lock/Side Window Switch

Courtesy of GENERAL MOTORS CORP.

Door Lock and Side Window Switch Replacement - Passenger Side

Callout	Component Name
1	Front Side Door Accessory Switch Mount Plate Assembly
2	Front Side Door Accessory Switch Mount Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
3	Front Side Door Accessory Switch Assembly Procedure:  Disconnect the electrical connector.
