Front Side Door Inside Handle Replacement

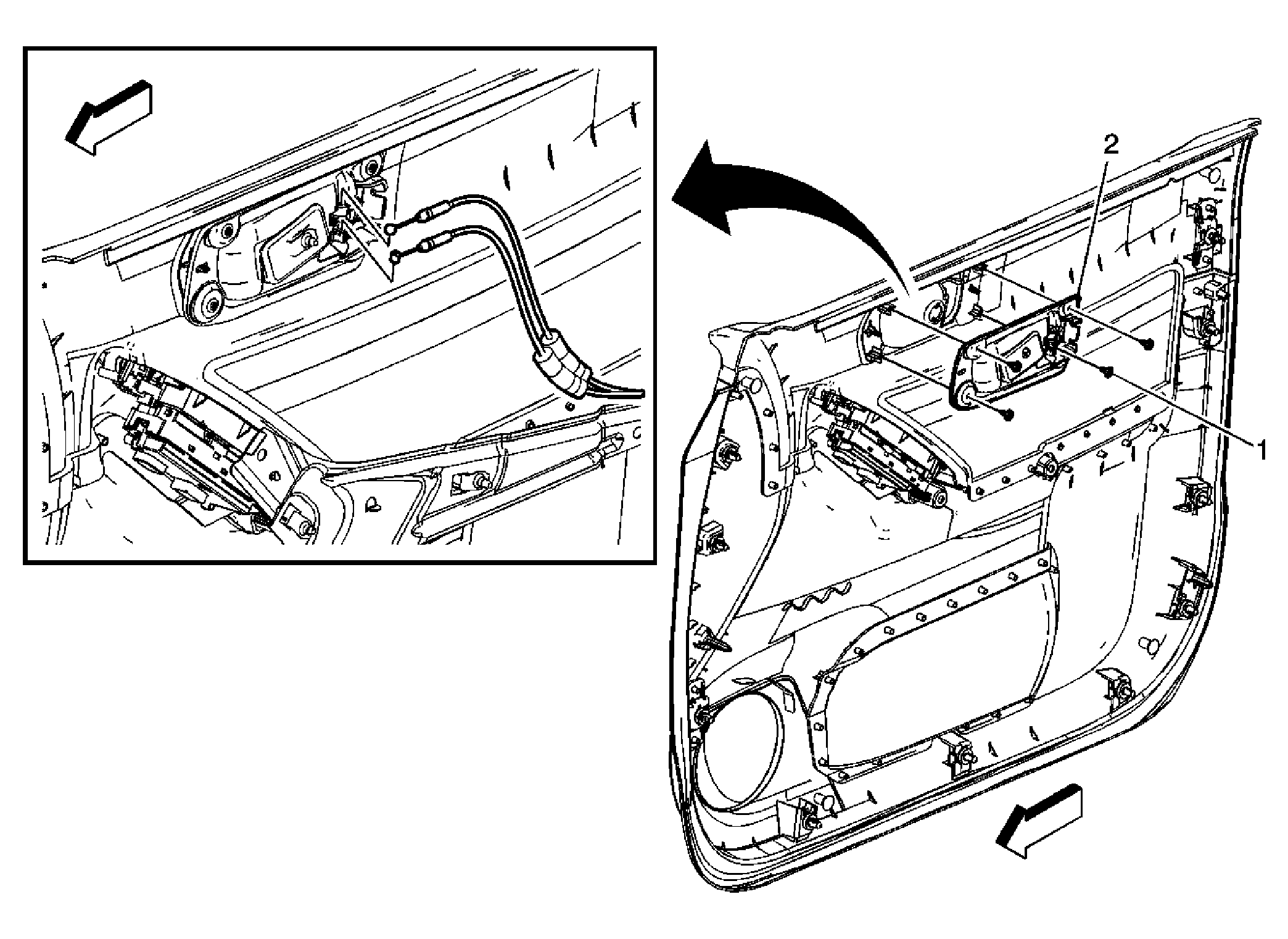

Fig 1: View Of Front Side Door Inside Handle

Courtesy of GENERAL MOTORS CORP.

Front Side Door Inside Handle Replacement

Callout	Component Name
Preliminary Procedure:  Remove side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Inside Door Handle Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Inside Door Handle Assembly
