Door Lock and Side Window Switch Replacement - Driver Side (1st Design)

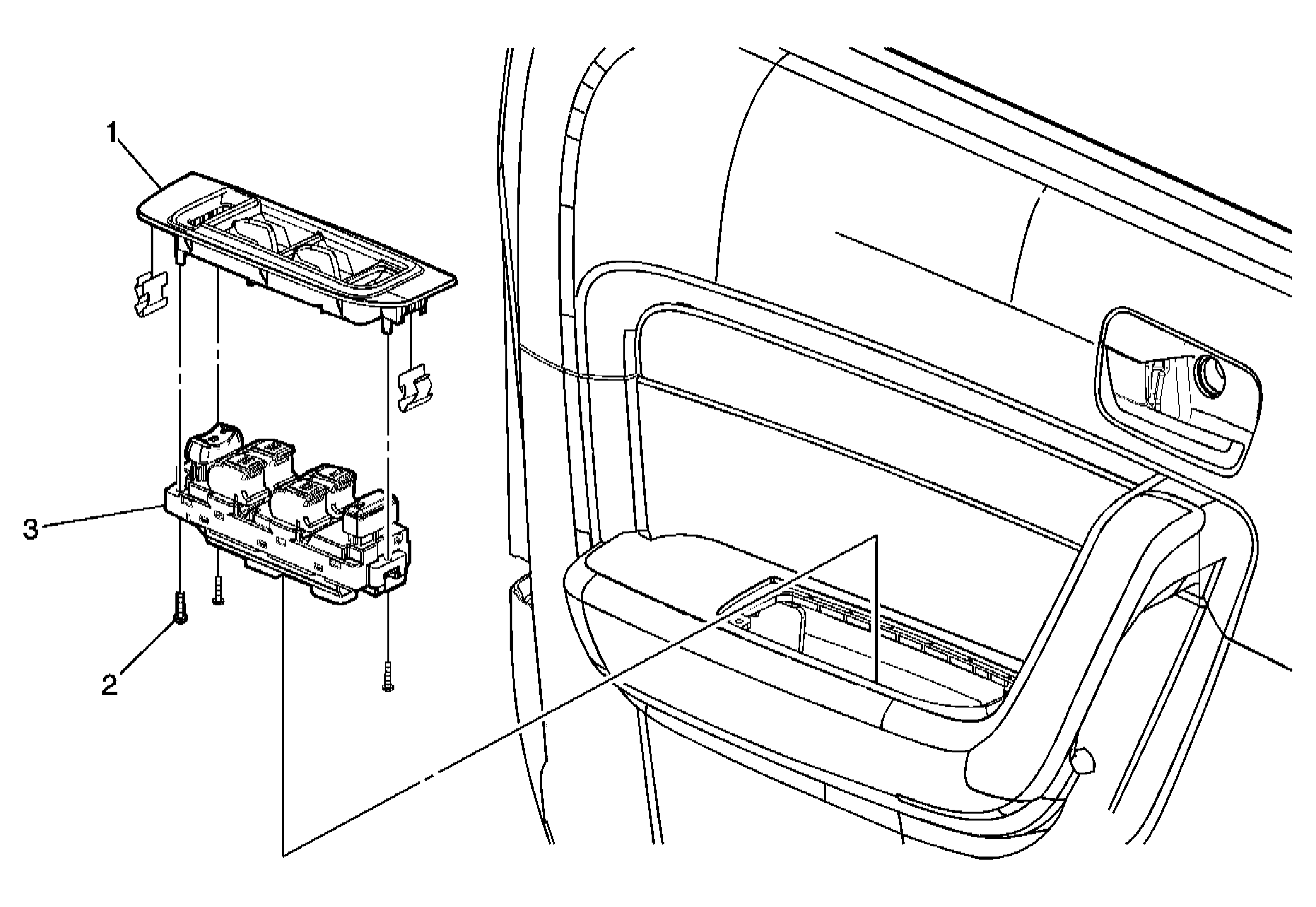

Fig 1: View Of Driver Side Door Lock/Side Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Accessory Switch Mount Plate Assembly
2	Front Side Door Accessory Switch Mount Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Front Side Door Accessory Switch Assembly Procedure: Disconnect the electrical connector.
