DTC P171E  : Park Pawl System Malfunction of learning mode

Special Tools Required

SPLINE HOLDER, DETENT SHAFT 070AB-5M50100

NOTE:  Before you troubleshoot, review the General Troubleshooting Information .

DTC (Gear)

1. Problem verification

   -1. Clear the DTC with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Turn the vehicle to the ON mode, and wait for at least 10 seconds.

   -4. With the brake pedal pressed and the accelerator released, shift the transmission to N position/mode, then shift back to P position/mode, and wait for at least 5 seconds.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   Gear System

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P07B3 Transmission Park Position Sensor/Switch A Circuit Low
   P07B4 Transmission Park Position Sensor/Switch A Circuit High
   P07B9 Transmission Park Position Sensor/Switch B Circuit Low
   P07BA Transmission Park Position Sensor/Switch B Circuit High
   P07BE Transmission Park Position Sensor/Switch A/B Incorrect Voltage Correlation

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P171E Park Pawl System Malfunction of learning mode
   P271A Park Pawl Position Sensor A Circuit Low

   PGM-FI System

   DTC Description	Confirmed DTC	Pending DTC
   U0103 F-CAN Malfunction (ECM/PCM-Shifter)
   U12AA EP-CAN Malfunction (PCM-SBW Shifter)

   Is DTC P07B3, P07B4, P07B9, P07BA, P07BE, P171E, P271A, U0103, or U12AA indicated?

   DTC P171E is indicated

   The failure is duplicated. Go to step 2.

   Except DTC P171E is indicated

   The failure is duplicated. Go to the indicated DTC's troubleshooting.

   • DTC P07B3
   • DTC P07B4
   • DTC P07B9
   • DTC P07BA
   • DTC P07BE
   • DTC P271A
   • DTC U0103
   • DTC U12AA

   No DTCs are indicated

   Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Transmission park mechanism check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the park pawl actuator .

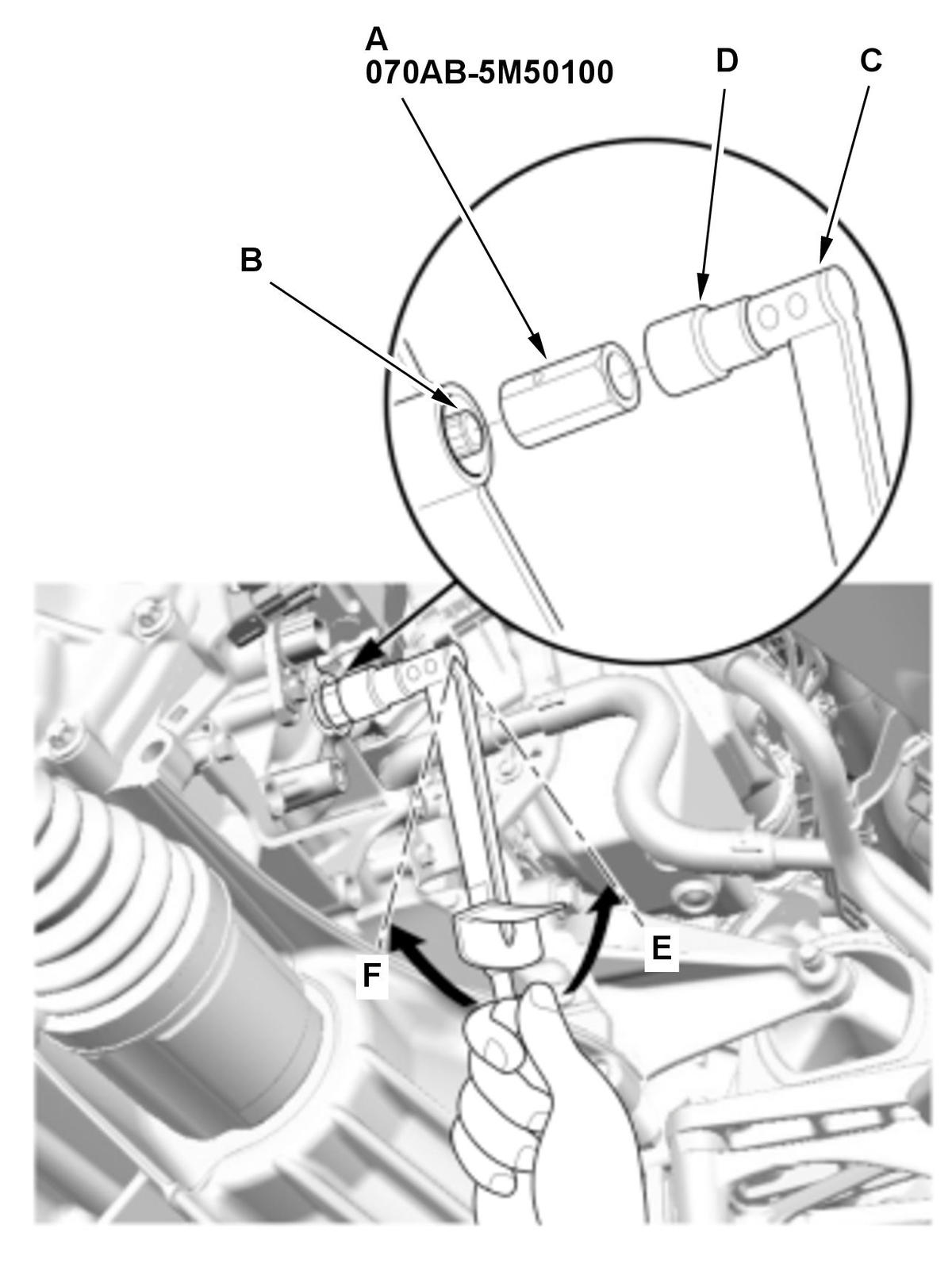

   -3. Set the detent shaft spline holder (A) to the detent shaft (B).

   Courtesy of HONDA, U.S.A., INC.

   -4. Use a torque wrench (C) and the socket (D) to rotate the detent shaft, and check that the detent shaft moves smoothly. Move it back and forth between the P position (E) and the P released position (F) several times.

   • -

     Operation angle: approx. 21 deg.

   • -

     Operation torque: approx. 4.0 N.m (0.41 kgf.m, 3.0 lbf.ft)

   -5. Check that the wheels are locked when putting the detent shaft in the P position. Additionally, check that the wheels rotate when putting the detent shaft in the P released position.

   Is the transmission park mechanism OK?

   YES

   The transmission park mechanism is OK. Put the detent shaft in the P position, and replace the park pawl actuator .

   NO

   Faulty transmission park mechanism. Replace the transmission (e-CVT) .
