Cross Traffic Monitor System Description - System Diagram

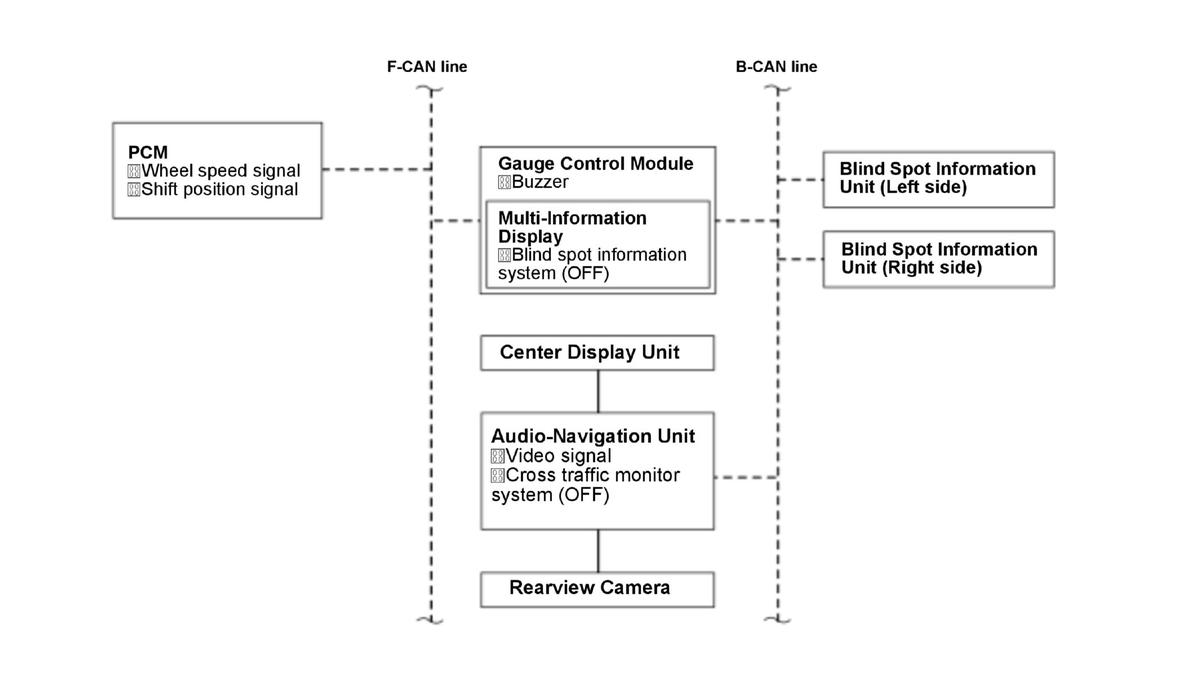

The system diagram of the Cross Traffic Monitor system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

• PCM
• Gauge control module
• Blind spot information units
• Audio-navigation unit , Center display unit
• Rearview camera

Courtesy of HONDA, U.S.A., INC.
