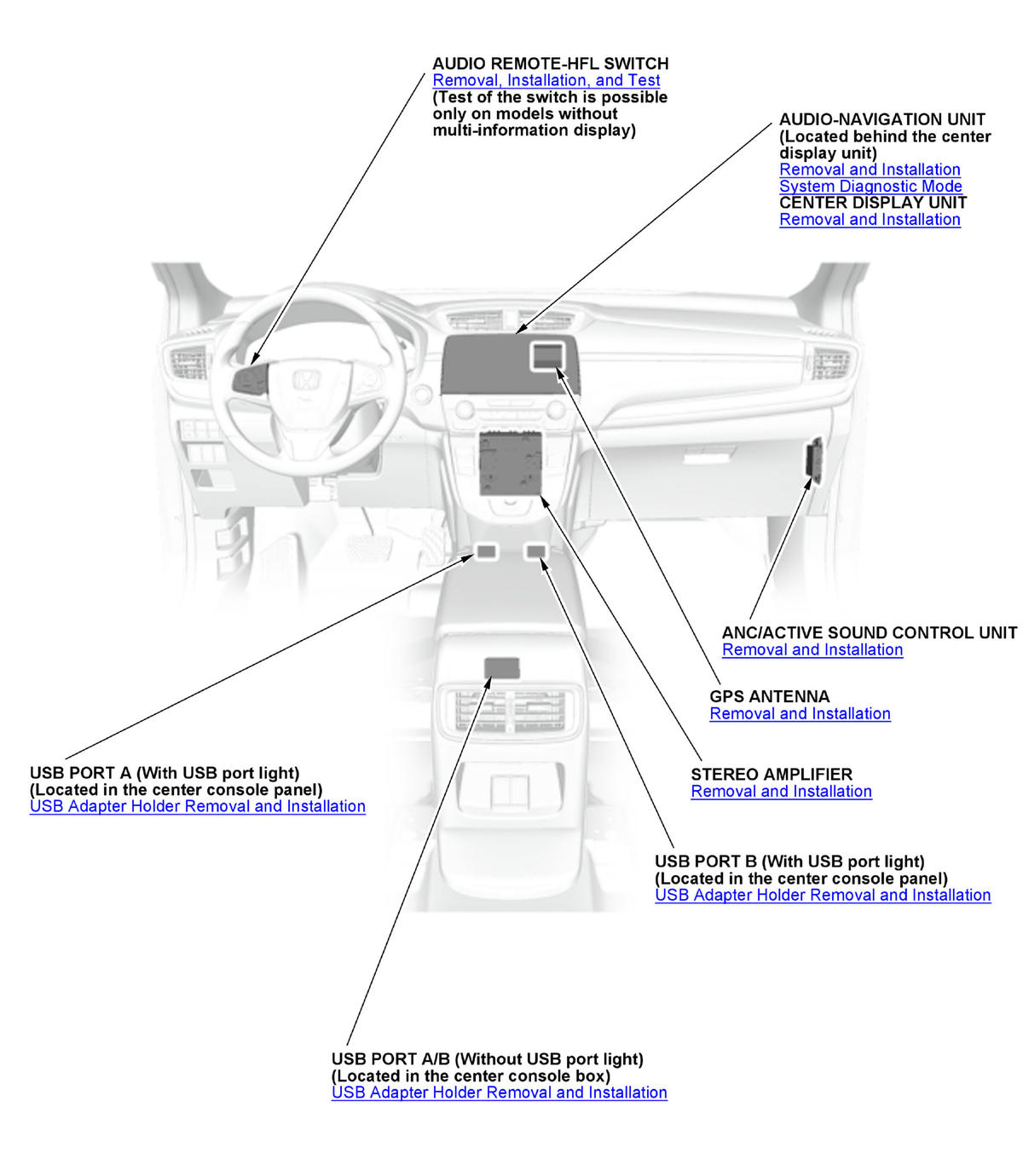

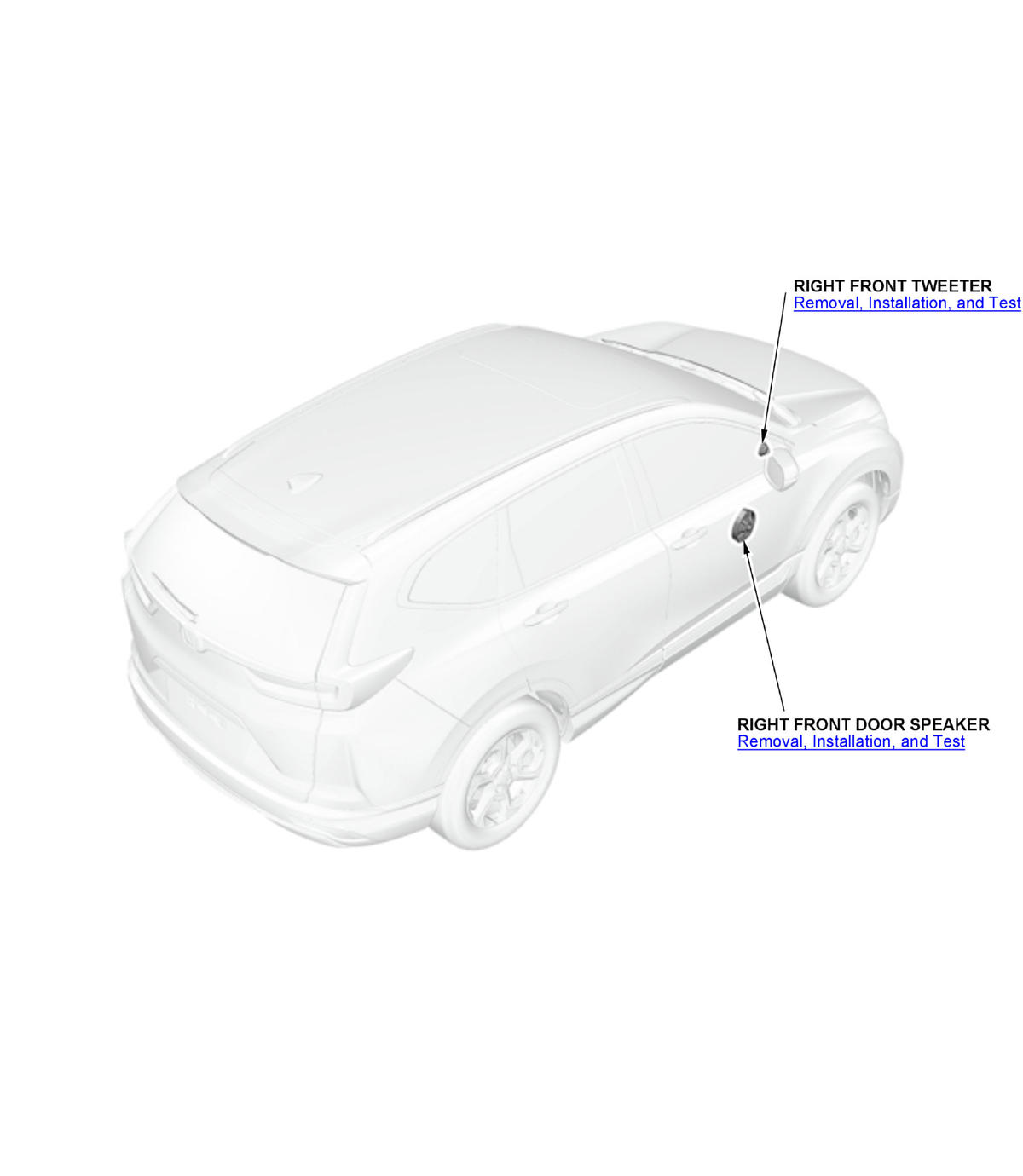

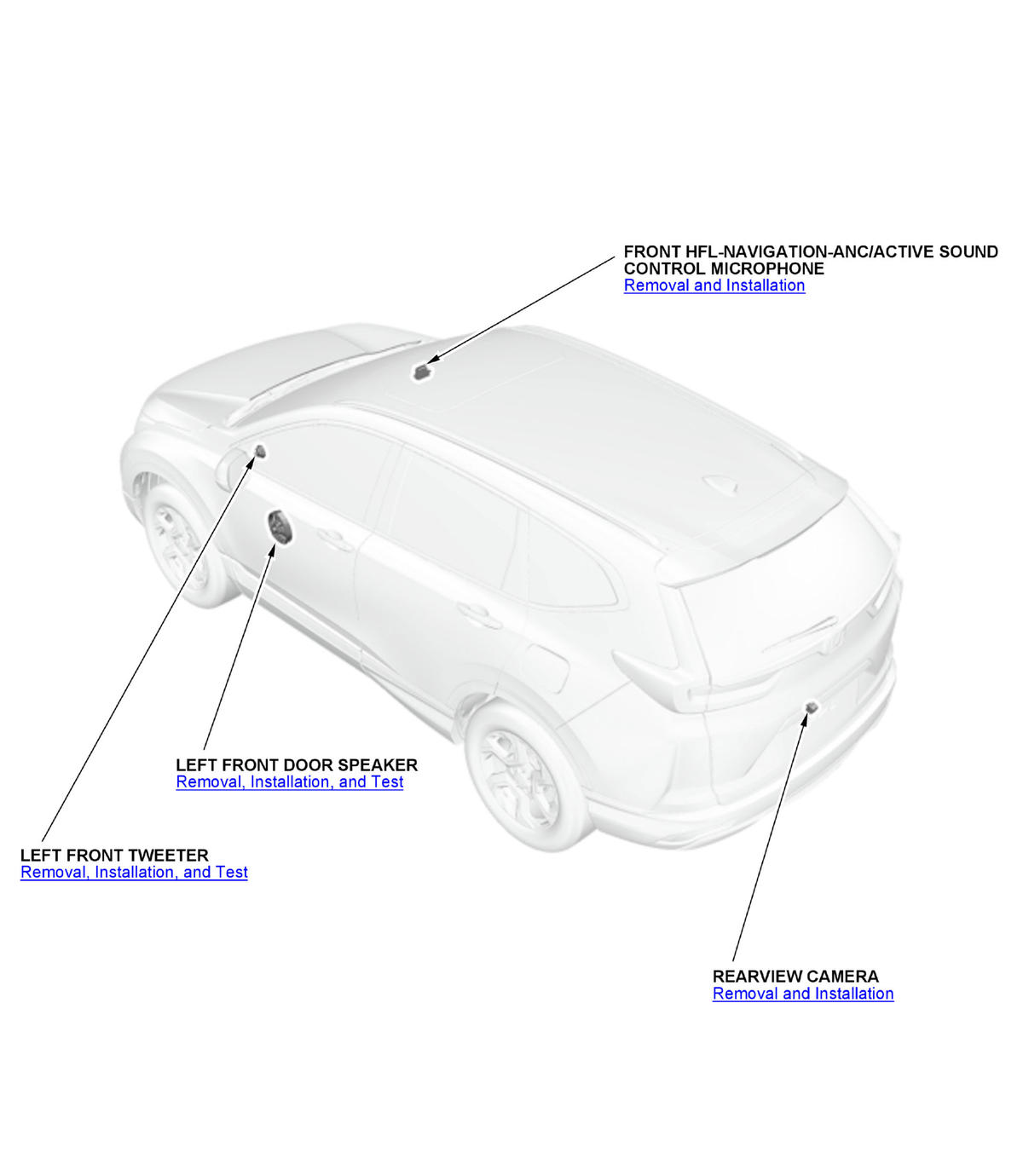

Navigation System Component Location Index

For relationships between signals in a system,

refer to system diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
