Road Departure Mitigation System Description - System Diagram

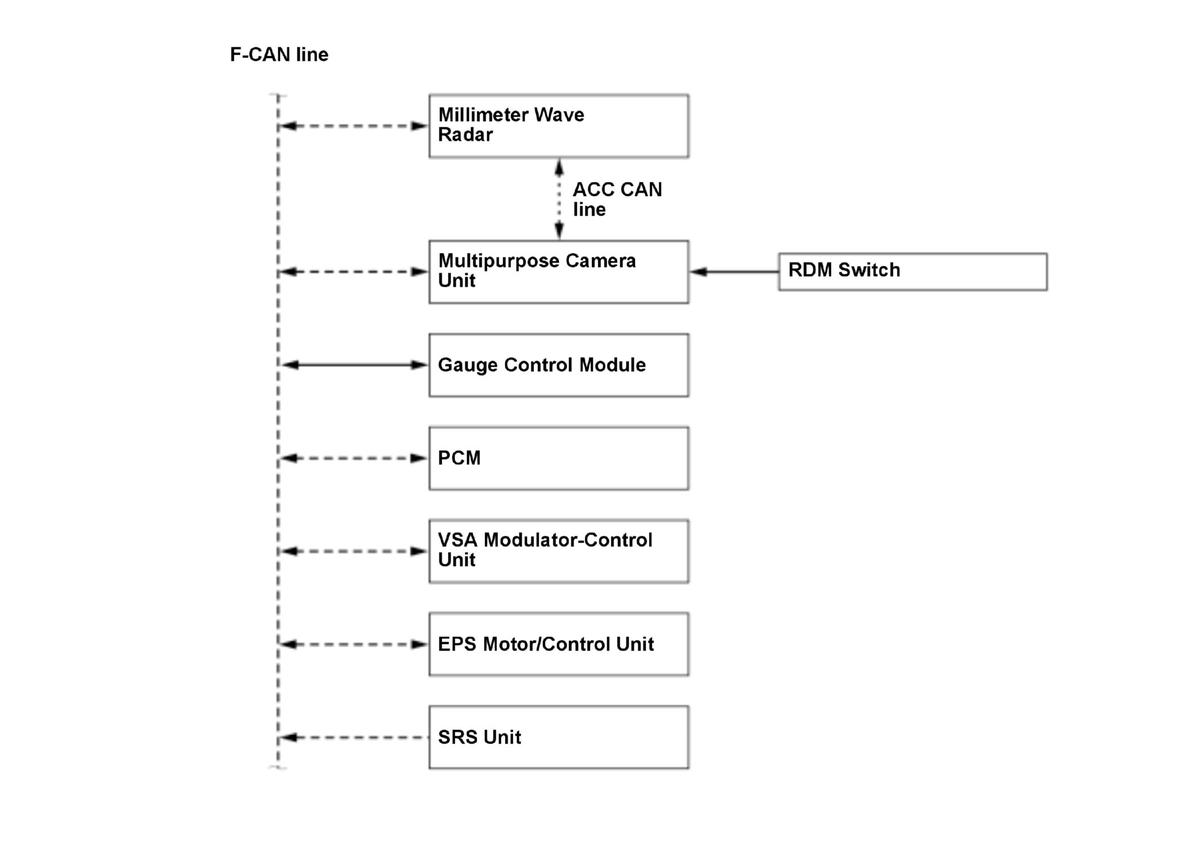

The system diagram of the RDM system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

The RDM system for this vehicle uses the multipurpose camera unit to calculate camera image information, and sends the RDM system indicated value to the control unit via the millimeter wave radar.

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

Millimeter Wave Radar Receiving Signal:

Originating Unit	Signal Name
EPS motor/control unit	EPS system failure information Steering angle neutral position learning information Steering angle signal Torque sensor signal

Originating Unit	Signal Name
Gauge control module	Customization signal Gauge control module failure information Turn signal lights operating status Wiper operating status
PCM	Accelerator pedal position (APP) sensor signal Brake pedal position switch signal PCM failure information Vehicle speed signal
SRS unit	Yaw rate sensor signal Yaw rate sensor failure information
VSA modulator-control unit	Master cylinder pressure signal VSA system actuation information VSA system failure information Wheel speed sensor signals

Millimeter Wave Radar Transmitting Signal:

Destination Unit	Signal Name
EPS motor/control unit	Integrated driver support system failure information RDM control instruction
Gauge control module	Buzzer request signal Customization information Integrated driver support system failure information Multi information display (MID) screen requirement: - RDM indicator - RDM system indicates for self-diagnostic function
PCM	---
SRS unit	RDM operating information
VSA modulator-control unit	Automatic brake actuation request signal Brake light relay actuation request signal Integrated driver support system failure information
