Cruise Control System Description - System Diagram

The system diagram of the cruise control system is shown below.

For locations of each component on the vehicle, refer to Component Location Index:

• Brake pedal position switch
• Cruise control combination switch
• Gauge control module
• PCM
• Throttle body (Throttle actuator, Throttle position (TP) sensor)
• Transmission range switch, CVT speed sensor
• 1.5 L engine model: Transmission control module (TCM)

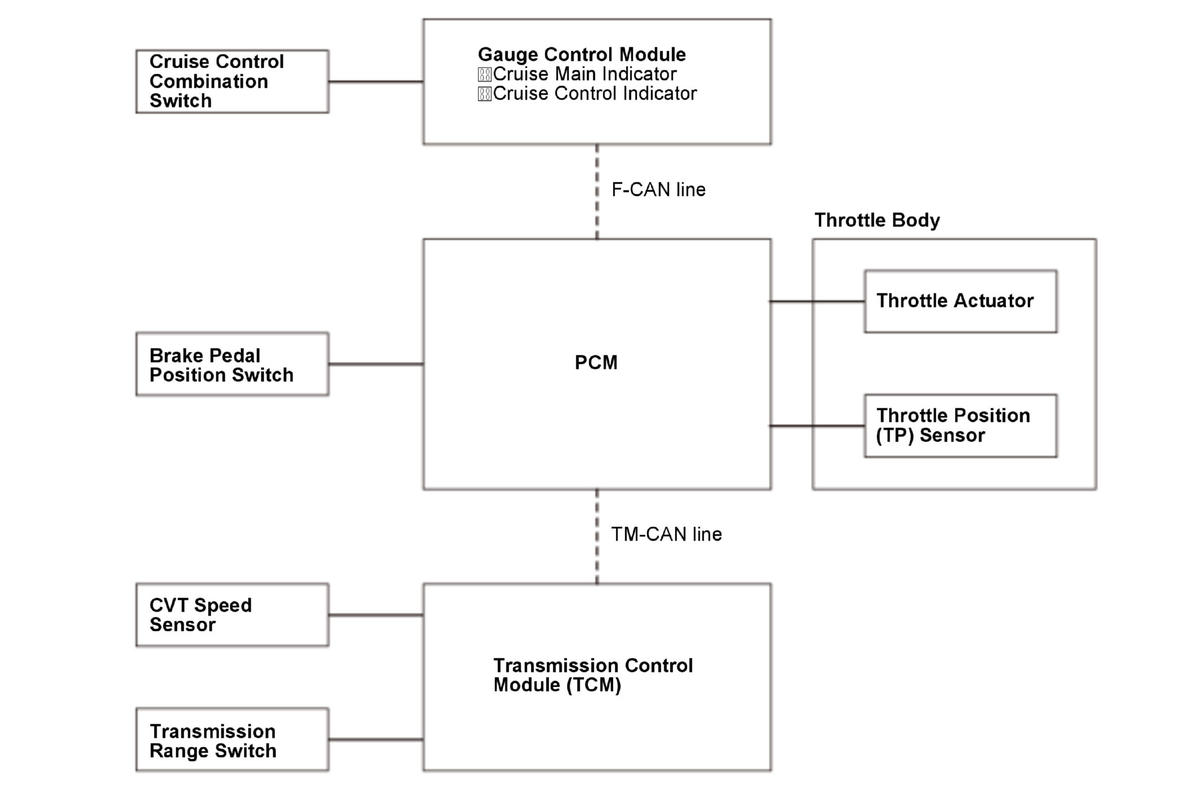

1.5 L engine model:

Courtesy of HONDA, U.S.A., INC.

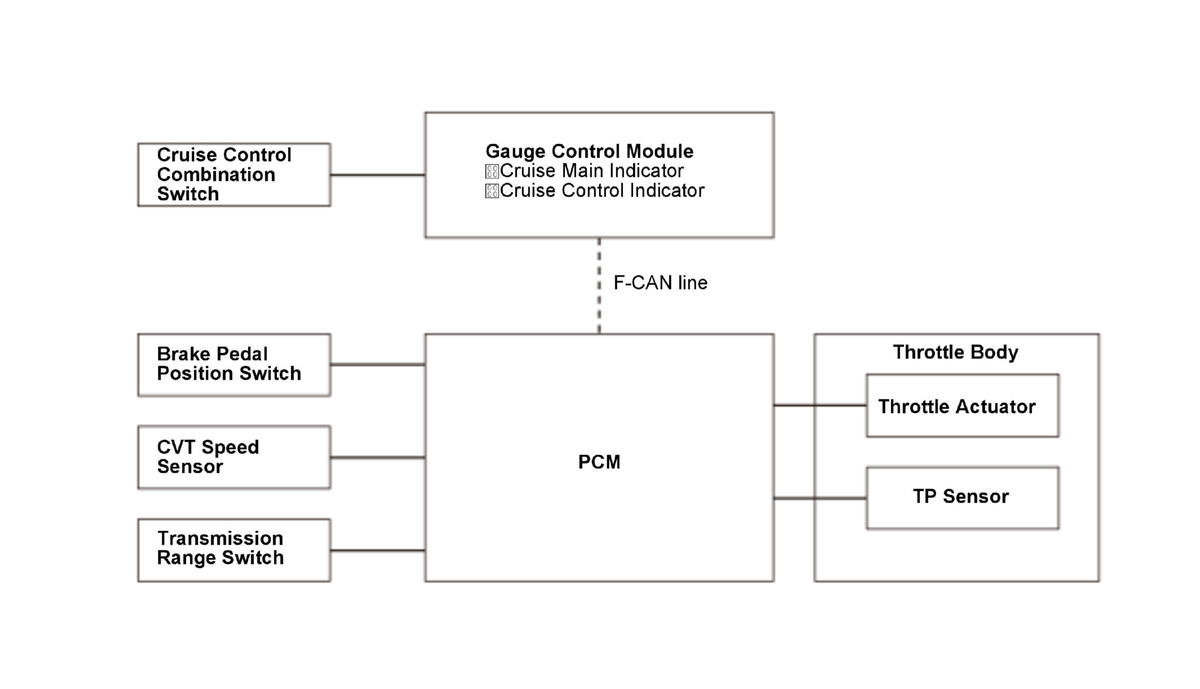

Except 1.5 L engine model:

Courtesy of HONDA, U.S.A., INC.
