A/T System Description - System Diagram (A/T)

For locations of each component on the vehicle, refer to Component Location Index.

• TCM, SBW Shifter Assembly
• Paddle Shifter
• PCM
• Gauge Control Module
• VSA Modulator-Control Unit

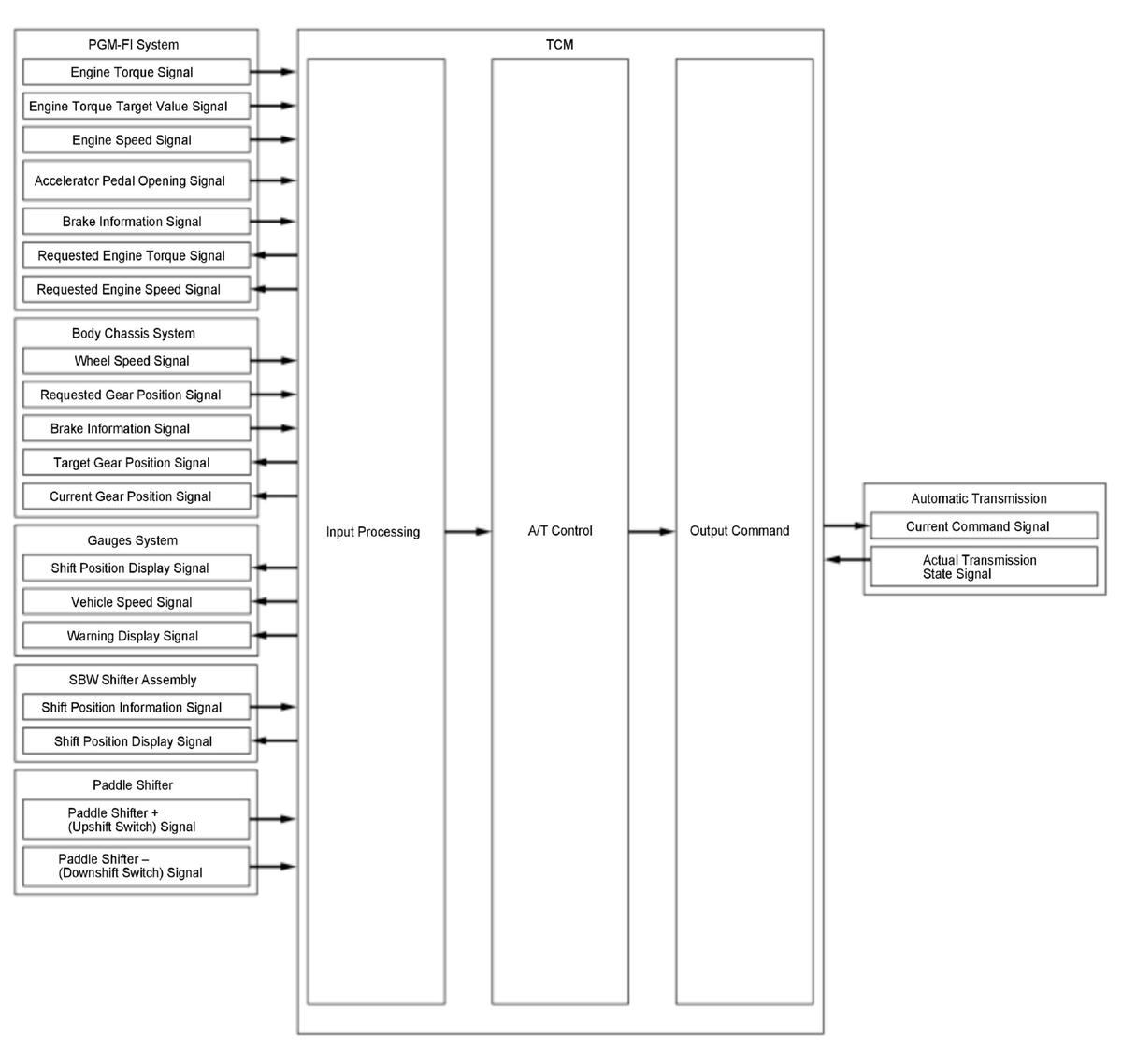

Electronic Control

Courtesy of HONDA, U.S.A., INC.

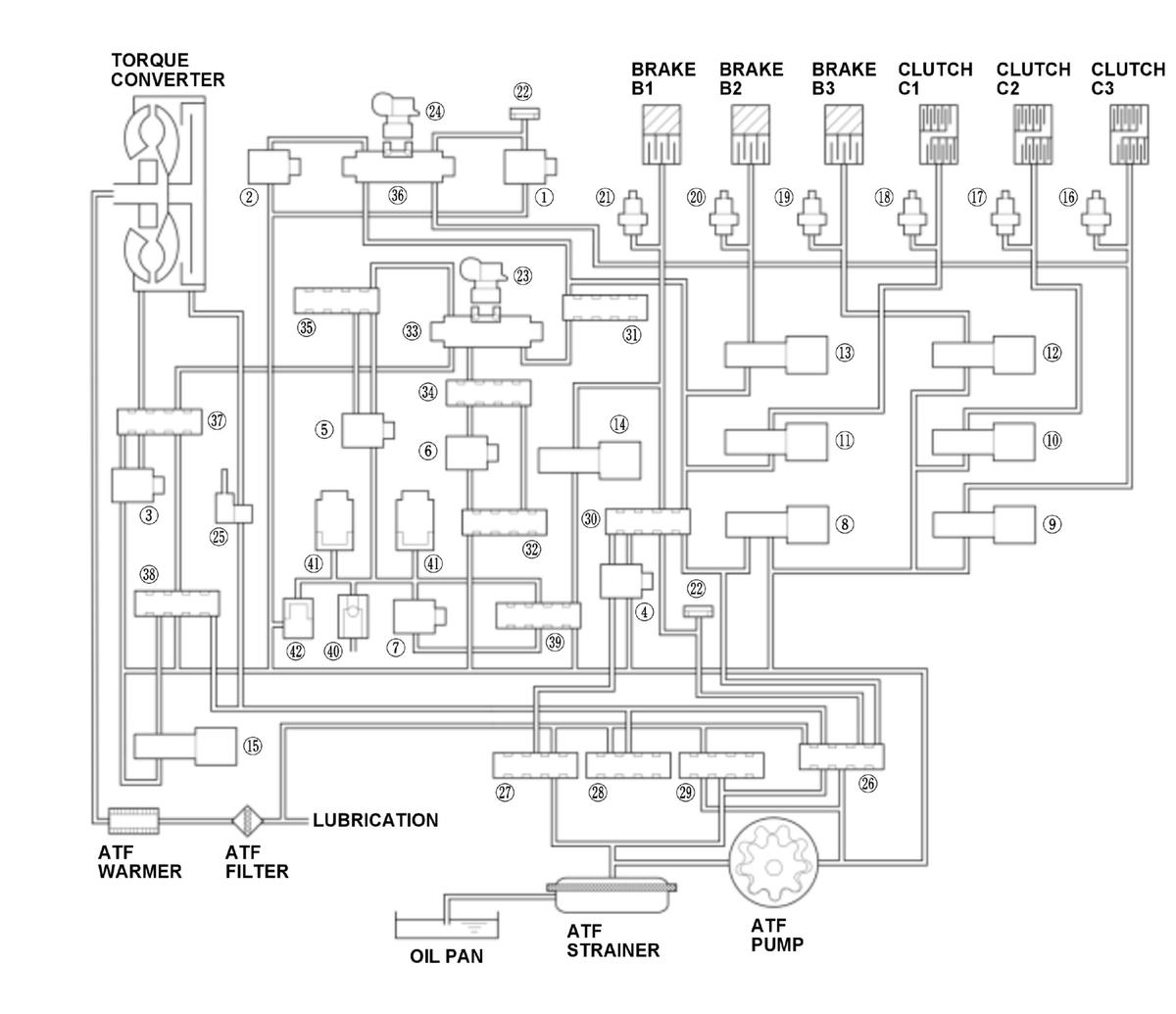

Hydraulic Control

Circuit Diagram

Courtesy of HONDA, U.S.A., INC.

: Shift Solenoid Valve A	: Transmission Fluid Pressure Switch
: Shift Solenoid Valve B	: Parking Actuator Valve Stroke Sensor
: Shift Solenoid Valve C	: Two-Way Clutch Actuator Valve Stroke Sensor
: Shift Solenoid Valve D	: ATF Temperature Sensor
: Shift Solenoid Valve E	: Main Regulator Valve
: Shift Solenoid Valve F	: Lubrication Regulator Valve
: Shift Solenoid Valve G	: Torque Converter Regulator Valve
: Clutch Pressure Control Solenoid Valve A	: PL Accumulator Valve
: Clutch Pressure Control Solenoid Valve B	: B1 Cut Valve
: Clutch Pressure Control Solenoid Valve C	: SD Cut Valve
: Clutch Pressure Control Solenoid Valve D	: SF Cut Valve
: Clutch Pressure Control Solenoid Valve E	: Parking Actuator Valve
: Clutch Pressure Control Solenoid Valve F	: Parking Inhibitor Valve
: Clutch Pressure Control Solenoid Valve G	: Parking Ball Valve
: Clutch Pressure Control Solenoid Valve H	: Two-Way Clutch Actuator Valve
: Transmission Fluid Pressure Sensor A	: Lock-Up Shift Valve
: Transmission Fluid Pressure Sensor B	: Lock-Up Control Valve
: Transmission Fluid Pressure Sensor C	: Idle Stop Ball Valve
: Transmission Fluid Pressure Sensor D	: Accumulator Relief Valve
: Transmission Fluid Pressure Sensor E	: Accumulator
: Transmission Fluid Pressure Sensor F	: Reducer

Operation Chart

o: Operatedx: Not operated

*: Select from 6th only
