Cam Chain Installation

NOTE: Keep the cam chain away from magnetic fields.
  1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the oil pump.
    Fig 1: Aligning TDC Mark On Crankshaft Sprocket With Pointer On Oil Pump
    G06949387Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the crankshaft sprocket.
  3. Set the camshaft to TDC. The "UP" mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should line up with the top edge of the head.
    Fig 2: Locating UP Mark On Camshaft Sprocket And TDC Grooves On Camshaft Sprocket
    G06949388Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the cam chain on the crankshaft sprocket with the colored piece (A) aligned with the TDC mark (B) on the crankshaft sprocket, then install the crankshaft sprocket with the special key (C) to the crankshaft.
    Fig 3: Installing Crankshaft Sprocket With Special Key To Crankshaft
    G06949389Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the cam chain on the camshaft sprocket with the pointers (A) aligned with the three colored pieces (B) as shown.
    Fig 4: Aligning Camshaft Sprocket With Pointers With Three Colored Pieces
    G06949390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the cam chain tensioner (A) and the cam chain guide (B).
    Fig 5: Locating Cam Chain Tensioner And Cam Chain Guide With Torque Specifications
    G06949391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the cam chain tensioner slider, and loosely install the bolt.
    Fig 6: Locating Cam Chain Tensioner Slider And Bolt
    G06949392Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Apply new engine oil to the sliding surface of the cam chain tensioner slider (A).
    Fig 7: Rotating Cam Chain Tensioner Slider Clockwise To Compress Cam Chain Tensioner With Torque Specifications
    G06949393Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Rotate the cam chain tensioner slider clockwise to compress the cam chain tensioner, and install the remaining bolt, then tighten the bolts to the specified torque.
  10. Check the cam chain case oil seal for damage. If the oil seal is damaged, replace the cam chain case oil seal (see CAM CHAIN CASE OIL SEAL INSTALLATION  ).
  11. Remove all of the old liquid gasket from the cam chain case mating surfaces, the bolts, and the bolt holes.
  12. Clean and dry the cam chain case mating surfaces.
  13. Apply liquid gasket (P/N 08718-0004) to the cylinder head and the engine block mating surfaces of the chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
    • Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the upper surface contact areas of the engine block (B).
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
      Fig 8: Applying 3.0 mm (0.118 in) Diameter Bead Of Liquid Gasket To Upper Surface Contact Areas Of Engine Block
      G06949394Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Apply liquid gasket (P/N 08718-0004) to the oil pan mating surface of the chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
    • Apply a 5.0 mm (0.197 in) diameter bead of liquid gasket to the shaded area (B).
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
      Fig 9: Applying 2.5 mm (0.098 in) Diameter Bead Of Liquid Gasket Along Broken Line
      G06949395Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Set the edge of the chain case (A) on the edge of the oil pan (B), then install the chain case on the engine block (C).
    NOTE:
    • When installing the chain case, do not slide the bottom surface onto the oil pan mounting surface.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the chain case.
      Fig 10: Setting Edge Of Chain Case On Edge Of Oil Pan
      G06949396Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Tighten the chain case mounting bolts. Wipe off the excess liquid gasket from the oil pan and the chain case mating area.

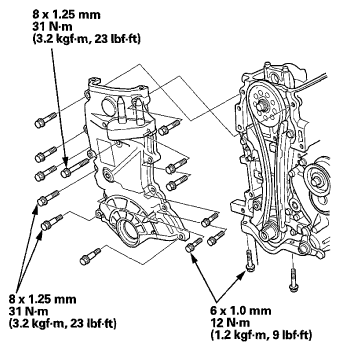

    Fig 11: Chain Case Mounting Bolts Tighten With Torque Specifications
    G06949397Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION  ).
  18. Install the side engine mount/bracket assembly (A), then tighten the new side engine mount/bracket assembly mounting bolts (B).

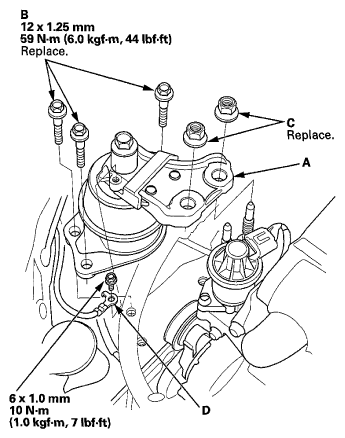

    Fig 12: Locating Side Engine Mount/Bracket Assembly And Side Engine Mount/Bracket Assembly Mounting Bolts With Torque Specifications
    G06949398Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Loosely install the new side engine mount/bracket assembly mounting nuts (C).
  20. Install the ground cable (D).
  21. Remove the jack and the wood block.
  22. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).

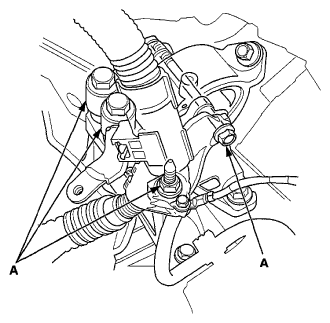

  23. Loosen the transmission mount bracket mounting bolts and nuts (A).
    Fig 13: Locating Transmission Mount Bracket Mounting Bolts And Nuts (M/T Model)
    G06949399Courtesy of AMERICAN HONDA MOTOR CO., INC.

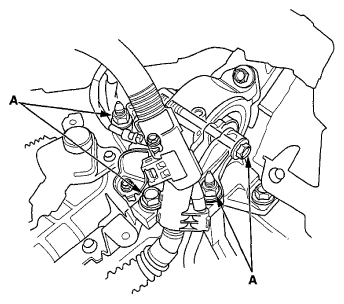

    Fig 14: Locating Transmission Mount Bracket Mounting Bolts And Nuts (CVT Model)
    G06949400Courtesy of AMERICAN HONDA MOTOR CO., INC.
  24. Raise the vehicle on the lift.
  25. Loosen the torque rod mounting bolt and nut (A).

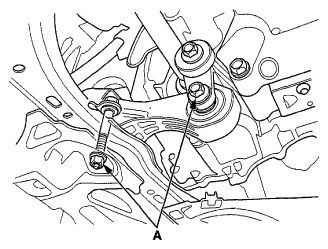

    Fig 15: Locating Torque Rod Mounting Bolt And Nut (M/T Model)
    G06949401Courtesy of AMERICAN HONDA MOTOR CO., INC.
    Fig 16: Locating Torque Rod Mounting Bolt And Nut (CVT Model)
    G06949402Courtesy of AMERICAN HONDA MOTOR CO., INC.
  26. Lower the vehicle on the lift.
  27. Tighten the side engine mount/bracket assembly mounting nuts.

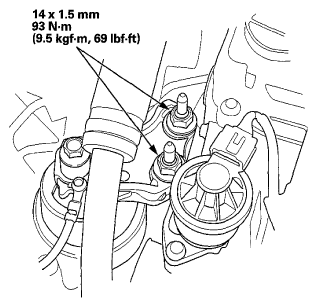

    Fig 17: Identifying Side Engine Mount/Bracket Assembly Mounting Nuts Tighten Torques
    G06949403Courtesy of AMERICAN HONDA MOTOR CO., INC.
  28. Tighten the transmission mount mounting bolts and nuts in the numbered sequence shown.

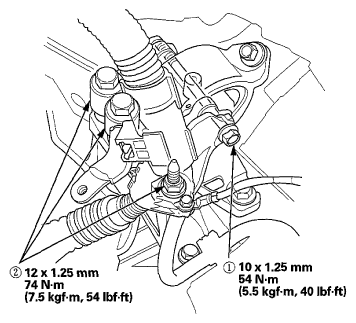

    Fig 18: Transmission Mount Mounting Bolts And Nuts Tightening Sequence (M/T Model) With Torque Specifications
    G06949404Courtesy of AMERICAN HONDA MOTOR CO., INC.

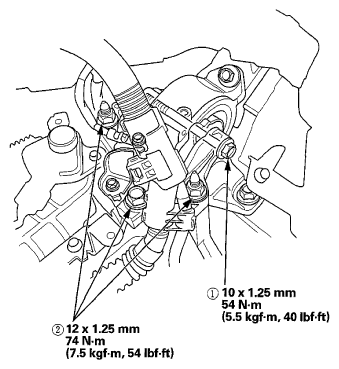

    Fig 19: Transmission Mount Mounting Bolts And Nuts Tightening Sequence (CVT Model) With Torque Specifications
    G06949405Courtesy of AMERICAN HONDA MOTOR CO., INC.
  29. Raise the vehicle on the lift.
  30. Tighten the torque rod mounting bolt and nut in the numbered sequence shown.

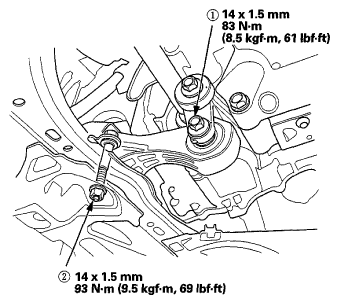

    Fig 20: Torque Rod Mounting Bolt And Nut Tightening Sequence (M/T Model) With Torque Specifications
    G06949406Courtesy of AMERICAN HONDA MOTOR CO., INC.

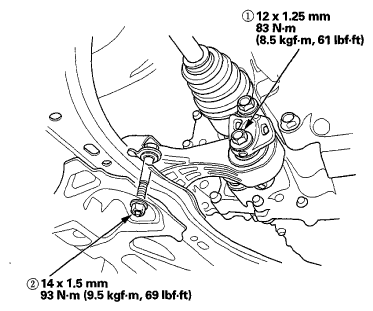

    Fig 21: Torque Rod Mounting Bolt And Nut Tightening Sequence (CVT Model) With Torque Specifications
    G06949407Courtesy of AMERICAN HONDA MOTOR CO., INC.
  31. Lower the vehicle on the lift.
  32. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  33. Install the A/C line bracket mounting bolt.

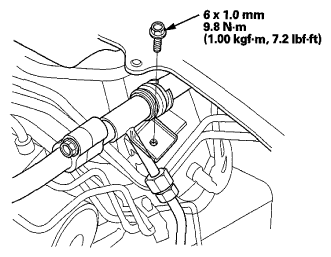

    Fig 22: Locating A/C Line Bracket Mounting Bolt With Torque Specifications
    G06949408Courtesy of AMERICAN HONDA MOTOR CO., INC.
  34. Install the crankshaft pulley (see INSTALLATION  ).
  35. Install the water pump pulley, loosely install water pump bolts (see WATER PUMP REPLACEMENT ).

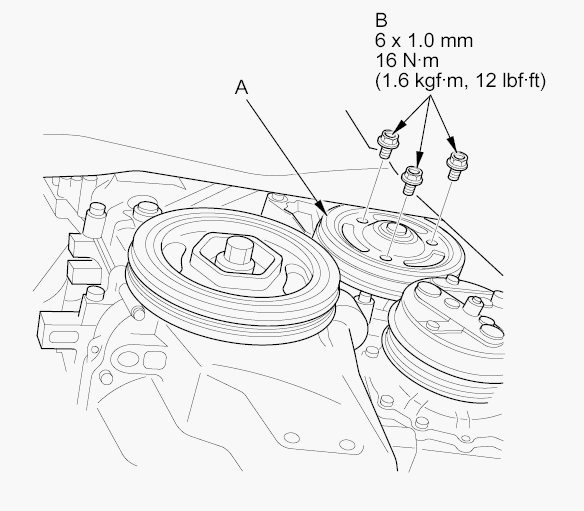

    Fig 23: Water Pump Pulley Bolts With Torque Specifications
    G00514296Courtesy of AMERICAN HONDA MOTOR CO., INC.
  36. Install the drive belt (see DRIVE BELT REPLACEMENT ).
  37. Tighten the water pump pulley mounting bolts (see step 13 on WATER PUMP REPLACEMENT ).
  38. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
  39. Install the right front wheel.
  40. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
