Crankshaft Pulley Removal and Installation: Installation

Remove any oil and clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.
◦: Clean

•: Lubricate with new engine oil

Fig 1: Cleaning Crankshaft Pulley, Crankshaft, Bolt And Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the crankshaft pulley.
When a new crankshaft or a new pulley bolt is installed: Tighten the crankshaft pulley bolt. Do not use an impact wrench.
1. Hold the pulley with the holder handle (A) and crankshaft pulley holder (B), torque the bolt to 177 N.m (18.0 kgf.m, 130 lbf.ft) with a torque wrench and a socket (C), then remove the bolt.
2. Torque the bolt to 39 N.m (4.0 kgf.m, 29 lbf.ft) with a torque wrench and a socket.
3. Tighten the bolt an additional 94°.

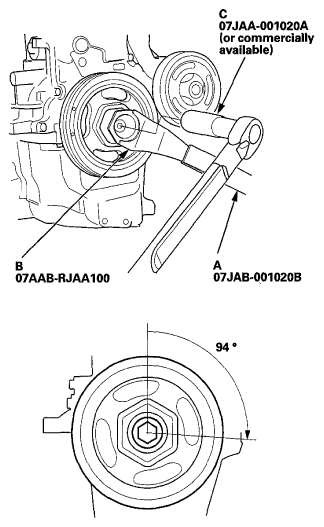

  Fig 2: Tightening Crankshaft Pulley Bolt
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the crankshaft or the pulley bolt is reused: Tighten the crankshaft pulley bolt. Do not use an impact wrench.
1. Hold the pulley with the holder handle (A) and crankshaft pulley holder (B), then torque the bolt to 37 N.m (3.8 kgf.m, 27 lbf.ft) with a torque wrench and a socket (C).
2. Mark the bolt head (D) and the crankshaft pulley (E) as shown, then tighten the bolt an additional 90° (the mark on the bolt head lines up with the mark on the crankshaft pulley).

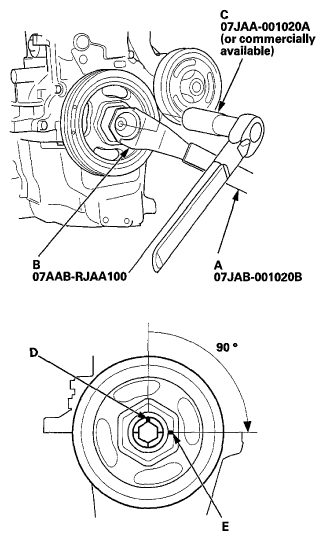

  Fig 3: Tightening Crankshaft Pulley Bolt
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
Install the right front wheel.
