CVT Solenoid Wire Harness (CVT)

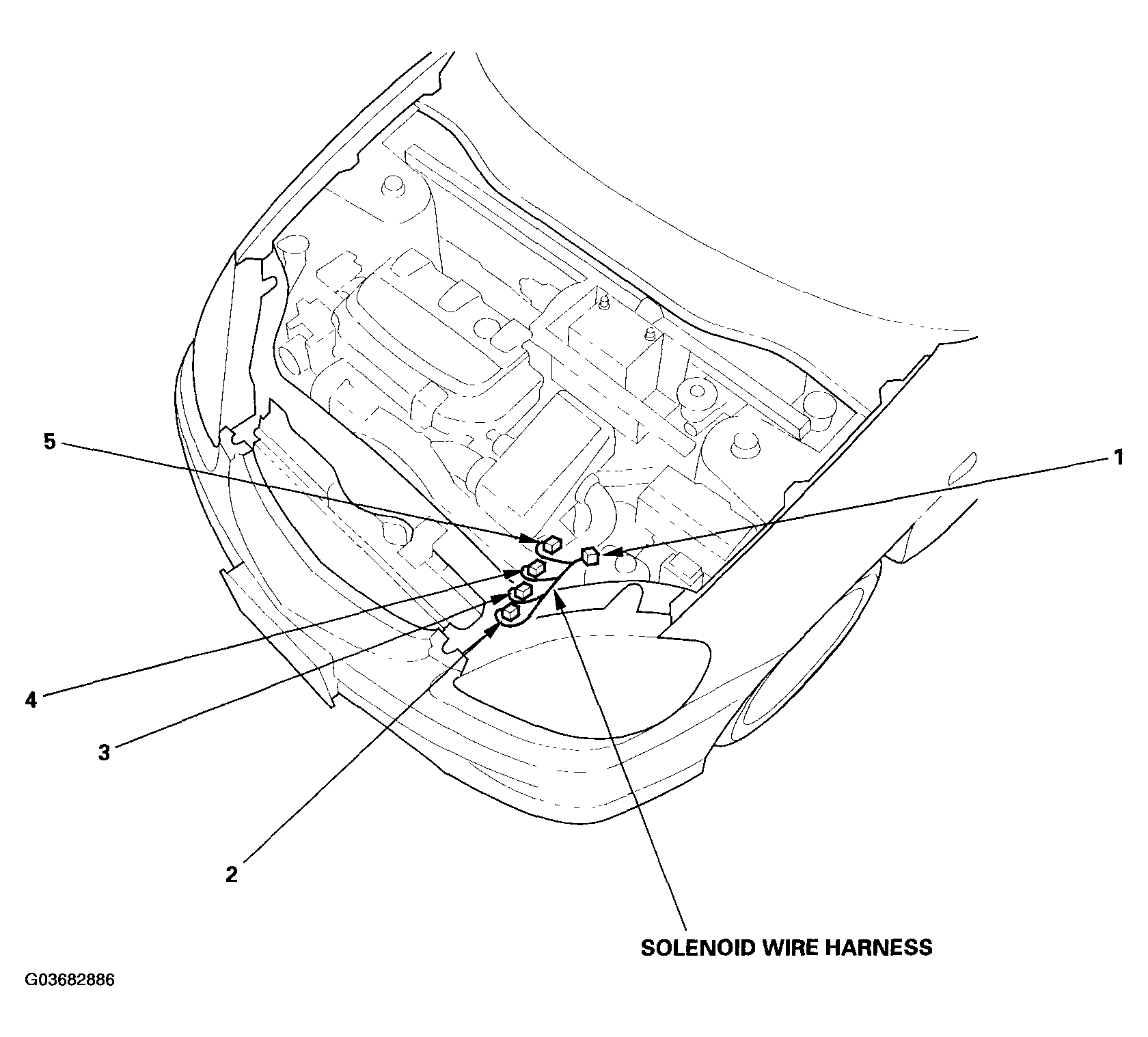

CONNECTOR TO HARNESS INDEX (CVT SOLENOID WIRE HARNESS (CVT))
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| CVT pulley pressure control valve assembly | 4 | 2 | Transmission housing | ||
| CVT speed change control valve assembly | 2 | 2 | Transmission housing | ||
| CVT start clutch pressure control valve assembly | 3 | 2 | Transmission housing | ||
| Inhibitor solenoid | 5 | 2 | Transmission housing | ||
| C109 | 1 | 8 | Transmission housing | Engine wire harness (see ENGINE WIRE HARNESS (CVT) ) |
