Installation Procedure

  1. GM6465615Courtesy of GENERAL MOTORS COMPANY

    Front Fender (1) - Install

  2. GM6465614Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Front Fender Nut (2) - Install and tighten - Fastener Specifications

  3. Front Fender Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. GM6465613Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (2) - Install and tighten - Fastener Specifications

  5. Front Fender Bolt (1) - Install and tighten - Fastener Specifications
  6. GM6465612Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Install and tighten - Fastener Specifications

  7. GM6465611Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Install and tighten [2x] - Fastener Specifications

  8. GM6465610Courtesy of GENERAL MOTORS COMPANY

    Apply Structural foam 3M™ NVH Dampening Material or equivalent to the front compartment side rail baffle (1).

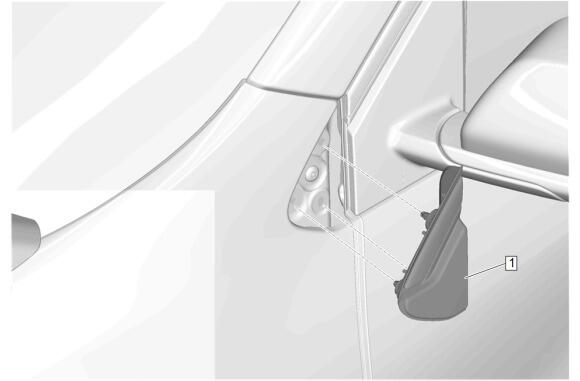

  9. GM6570537Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Fender Upper Rear Molding (1) - Install

  10. GM6463582Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension (1) - Install

  11. GM6465609Courtesy of GENERAL MOTORS COMPANY

    Front Fender Insulator (2) - Install

  12. Front Fender Washer (1) - Install
  13. GM6465634Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Install - Front Wheelhouse Liner Replacement

  14. GM6398043Courtesy of GENERAL MOTORS COMPANY

    Position the rocker panel molding (2) to the vehicle and seat the rocker panel molding retainers (1) into the body side outer panel.

  15. Rocker Panel Molding (2) - Install
  16. GM6398033Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Upper (2) - Install

  17. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. GM6398011Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications

  19. GM6397965Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Opening Molding (2) - Install

  20. Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  21. Close both front and rear side doors.
  22. Lower the vehicle.
  23. GM6464355Courtesy of GENERAL MOTORS COMPANY

    Front Headlamp (2) - Install

  24. Connect the electrical connector.
  25. GM6464354Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten [2x] - Fastener Specifications

  26. GM6464353Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten- Fastener Specifications

  27. GM6464352Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten [2x] - Fastener Specifications

  28. After installation, aim the front headlamps. Front Headlamp Aiming
  29. GM6465573Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Guide (2) - Install

  30. Front Bumper Fascia Guide Bolt (1) - Install and tighten [2x] - Fastener Specifications
  31. GM6465572Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Install and tighten - Fastener Specifications

  32. GM6465587Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)
