Fastener Specifications

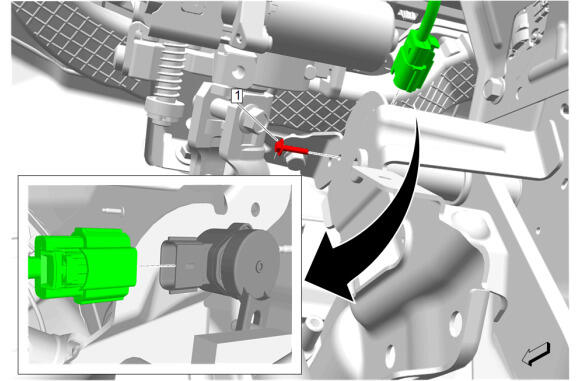

GM6423248Courtesy of GENERAL MOTORS COMPANY
Brake Pedal Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pedal Position Sensor Bolt - - 9 N.m (80 lb in) Brake Pedal Position Sensor Replacement
GM6487276Courtesy of GENERAL MOTORS COMPANY
Front Headlamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bolt [5x] - - 2.5 N.m (22 lb in) Front Headlamp Replacement

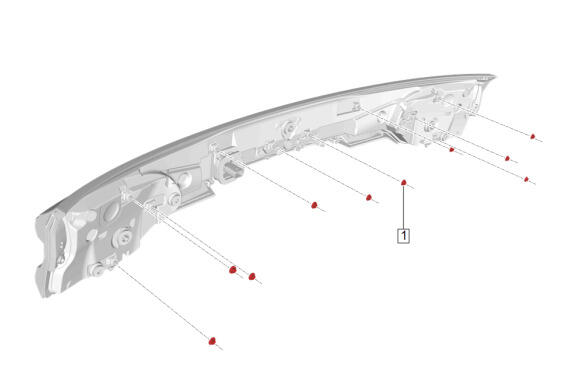

GM6487269Courtesy of GENERAL MOTORS COMPANY
Rear Closure Signal Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Signal Lamp Nut [10x] - - 4.7 N.m (42 lb in) Rear Closure Signal Lamp Replacement

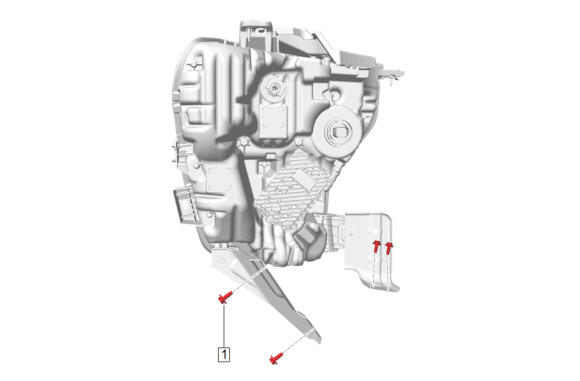

GM6487299Courtesy of GENERAL MOTORS COMPANY
Headlamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Headlamp Bracket Bolt [4x] - - 9 N.m (80 lb in) Headlamp Bracket Replacement (FRONT)Headlamp Bracket Replacement (REAR)

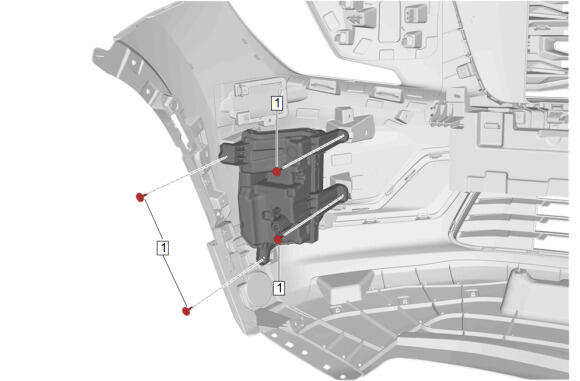

GM6486809Courtesy of GENERAL MOTORS COMPANY
Front Fog Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fog Lamp Bolt [4x] - - 2.5 N.m (22 lb in) Front Fog Lamp Replacement

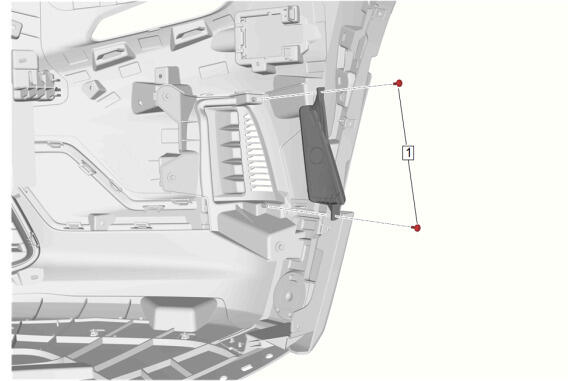

GM6486785Courtesy of GENERAL MOTORS COMPANY
Front Side Marker Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fog Lamp Bezel Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Marker Lamp Replacement

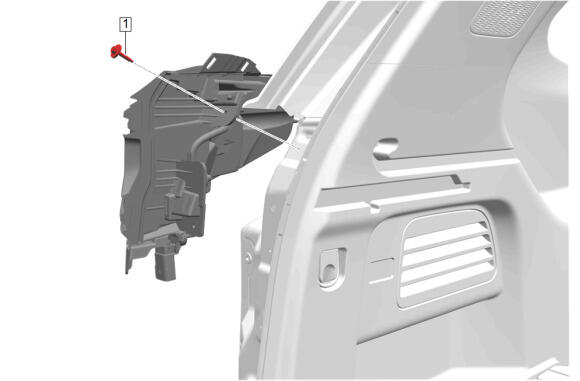

GM6486761Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bolt - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Replacement

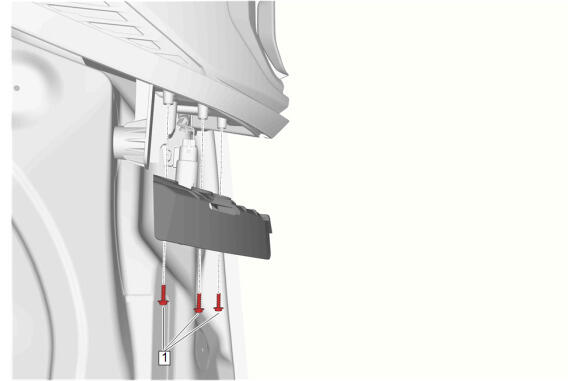

GM6486734Courtesy of GENERAL MOTORS COMPANY
Rear Body Structure Stop Lamp Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Body Structure Stop Lamp Bracket Bolt [3x] - - 2.5 N.m (22 lb in) Rear Body Structure Stop Lamp Bracket Replacement

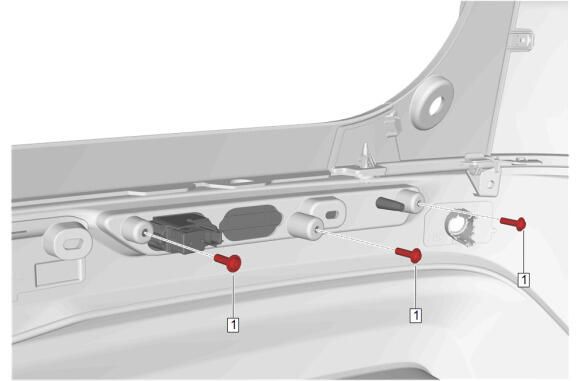

GM6473067Courtesy of GENERAL MOTORS COMPANY
Rear Fascia Lower Signal Lamp

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Fascia Lower Signal Lamp Bolt [3x] - - 2.5 N.m (22 lb in) Rear Fascia Lower Signal Lamp Replacement
