Fastener Specifications

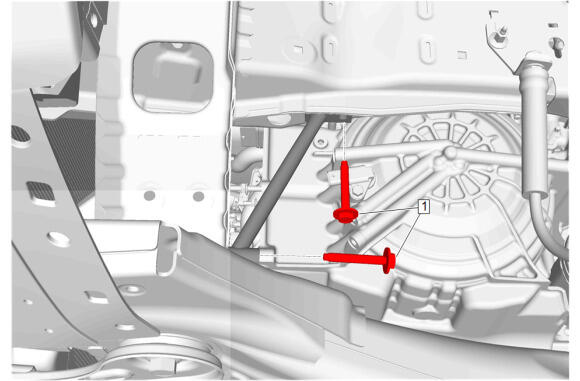

GM6481363Courtesy of GENERAL MOTORS COMPANY
Front End Sheet Metal Diagonal Brace

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Compartment Side Rail Bolt [2x] - - 22 N.m (16 lb ft) Front End Sheet Metal Diagonal Brace Replacement

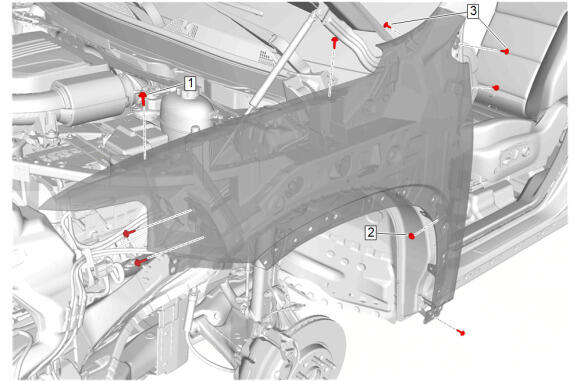

GM6481378Courtesy of GENERAL MOTORS COMPANY
Front Fender

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Bolt [6x] - - 9 N.m (80 lb in) Front Fender Replacement

2 Front Fender Nut - - 9 N.m (80 lb in) Front Fender Replacement

3 Front Fender Bolt [2x] - - 9 N.m (80 lb in) Front Fender Replacement

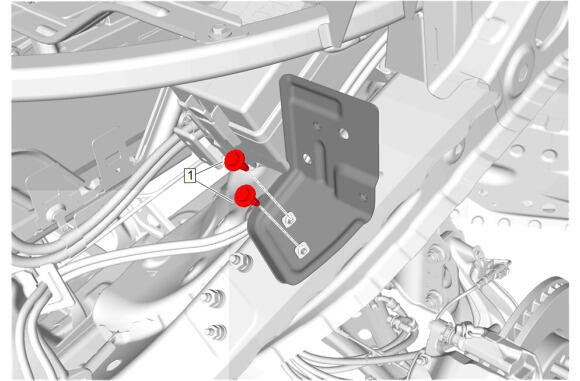

GM6420136Courtesy of GENERAL MOTORS COMPANY
Front Fender Front Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Fender Front Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Fender Front Bracket Replacement

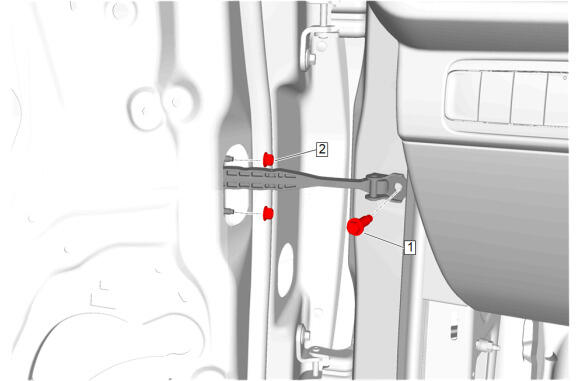

GM6420141Courtesy of GENERAL MOTORS COMPANY
Front Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Check Link Bolt - Yes 22 N.m (16 lb ft) Front Side Door Check Link Replacement
2 Front Side Door Check Link Nut [2x] - - 9 N.m (80 lb in) Front Side Door Check Link Replacement

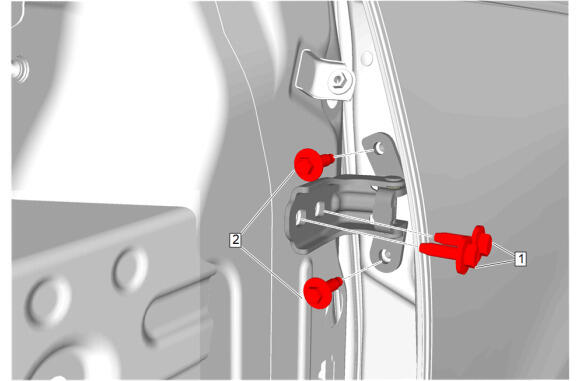

GM6420142Courtesy of GENERAL MOTORS COMPANY
Front Side Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement

2 Front Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Front Side Door Upper Hinge and Lower Hinge Replacement

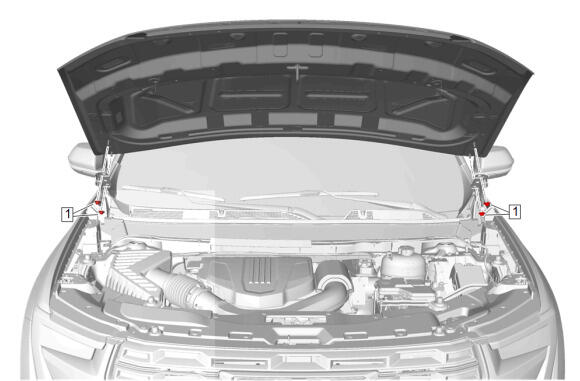

GM6481368Courtesy of GENERAL MOTORS COMPANY
Hood

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Hinge Nut [4x] - - 22 N.m (16 lb ft) Hood Replacement
Hood Adjustment

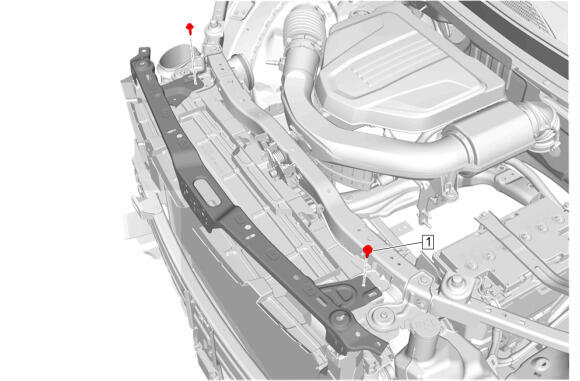

GM6420143Courtesy of GENERAL MOTORS COMPANY
Hood Front Bumper Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Front Bumper Bracket Bolt [2x] - - 9 N.m (80 lb in) Hood Front Bumper Bracket Replacement

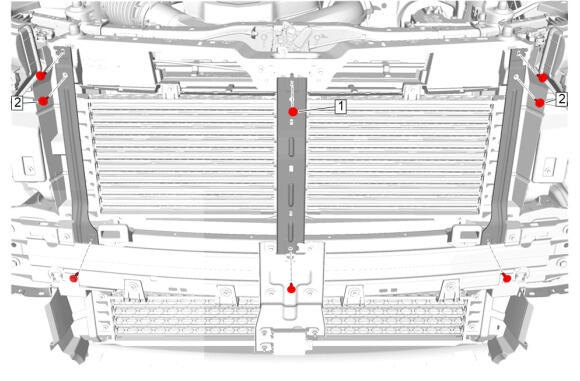

GM6420144Courtesy of GENERAL MOTORS COMPANY
Hood Front Bumper Bracket at Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Front Bumper Bracket Support Bolt [6x] - - 9 N.m (80 lb in) Hood Front Bumper Bracket Support Replacement
2 Hood Front Bumper Bracket Support Bolt [2x] - - 2.5 N.m (22 lb in) Hood Front Bumper Bracket Support Replacement

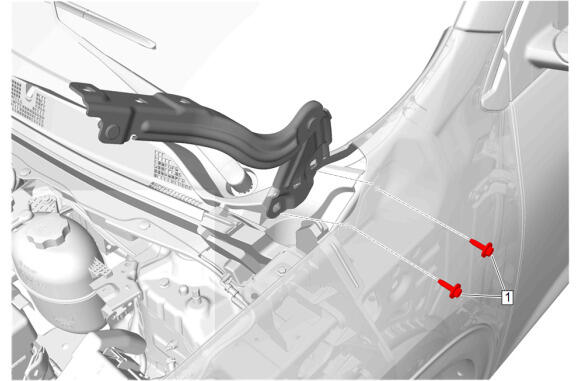

GM6481373Courtesy of GENERAL MOTORS COMPANY
Hood Hinge

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Hinge Bolt [2x] - - 32 N.m (24 lb ft) Hood Hinge Replacement

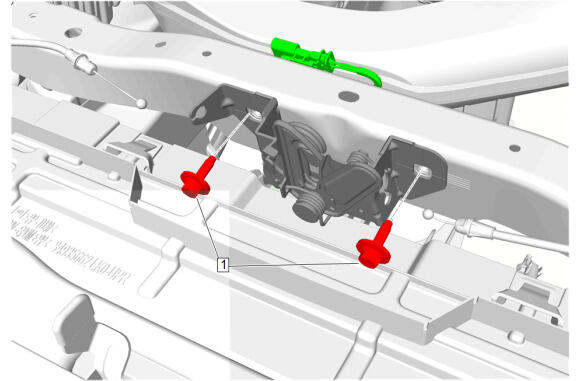

GM6420147Courtesy of GENERAL MOTORS COMPANY
Hood Primary and Secondary Latch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Primary and Secondary Latch Bolt [2x] - - 9 N.m (80 lb in) Hood Primary and Secondary Latch Replacement

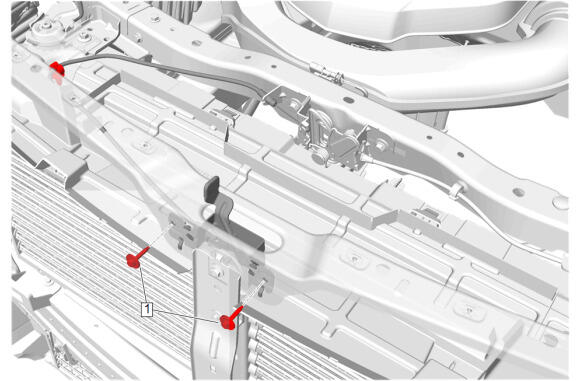

GM6420148Courtesy of GENERAL MOTORS COMPANY
Hood Secondary Latch Release Cable

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Hood Secondary Latch Release Handle Bolt [2x] - - 2.5 N.m (22 lb in) Hood Secondary Latch Release Cable Replacement

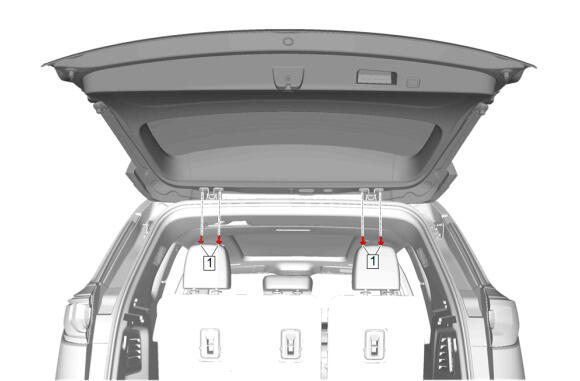

GM6481381Courtesy of GENERAL MOTORS COMPANY
Liftgate

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Hinge Bolt [4x] - - 22 N.m (16 lb ft) Liftgate Removal and Installation
Liftgate Adjustment

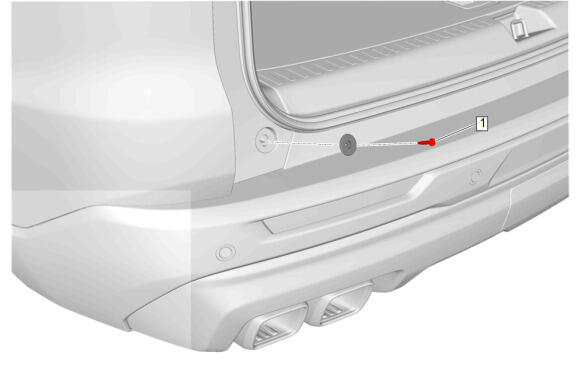

GM6481388Courtesy of GENERAL MOTORS COMPANY
Liftgate Adjust Bumper Pad

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Bumper Pad Bolt [2x] - - 2.5 N.m (22 lb in) Liftgate Adjust Bumper Pad Replacement

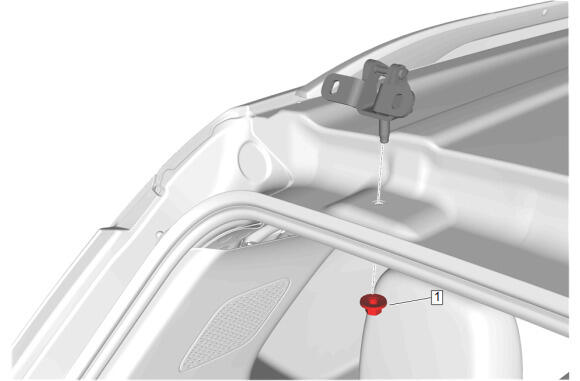

GM6481384Courtesy of GENERAL MOTORS COMPANY
Liftgate Hinge

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Hinge Nut - - 58 N.m (43 lb ft) Liftgate Hinge Replacement

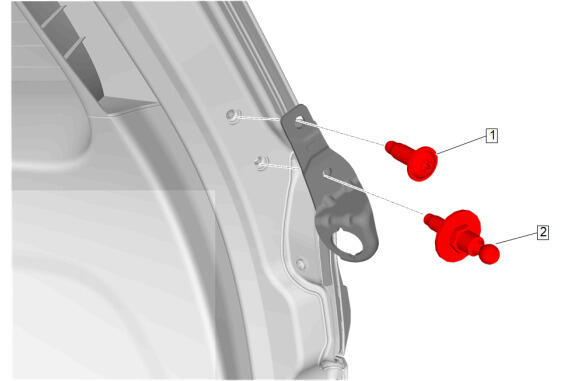

GM6465689Courtesy of GENERAL MOTORS COMPANY
Liftgate Side Bumper Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Side Bumper Bracket Bolt - Yes 22 N.m (16 lb ft) Liftgate Side Bumper Bracket Replacement
2 Liftgate Side Bumper Bracket Stud - Yes 30 N.m (22 lb ft) Liftgate Side Bumper Bracket Replacement

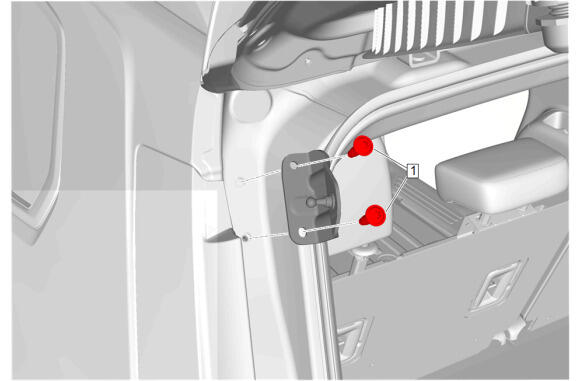

GM6481386Courtesy of GENERAL MOTORS COMPANY
Liftgate Strut Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Strut Bracket Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Strut Bracket Replacement (TB4) , or Liftgate Strut Bracket Replacement (TCP)

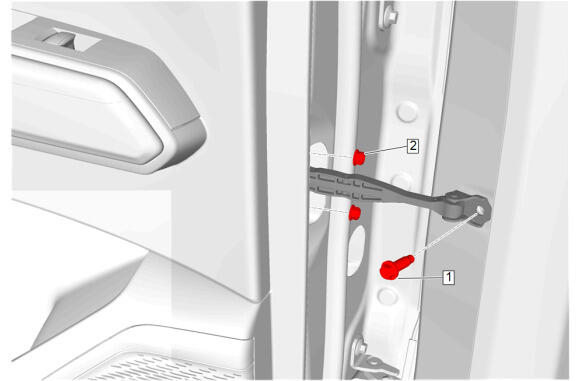

GM6481389Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Check Link

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Check Link Bolt - - 22 N.m (16 lb ft) Rear Side Door Check Link Replacement
2 Rear Side Door Check Link Door Side Nut [2x] - - 9 N.m (80 lb in) Rear Side Door Check Link Replacement

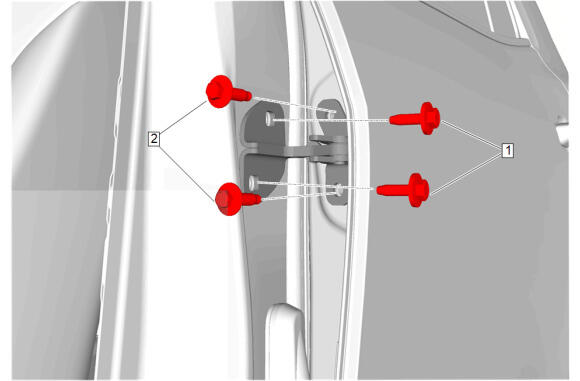

GM6420162Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Hinge

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Hinge Bolt - Body Side [2x] - - 32 N.m (24 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
2 Rear Side Door Hinge Bolt - Door Side [2x] - - 25 N.m (18 lb ft) Rear Side Door Upper Hinge and Lower Hinge Replacement
