Fastener Specifications

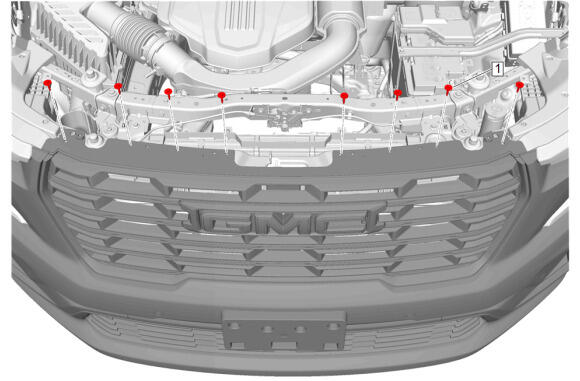

GM6465582Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [8x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

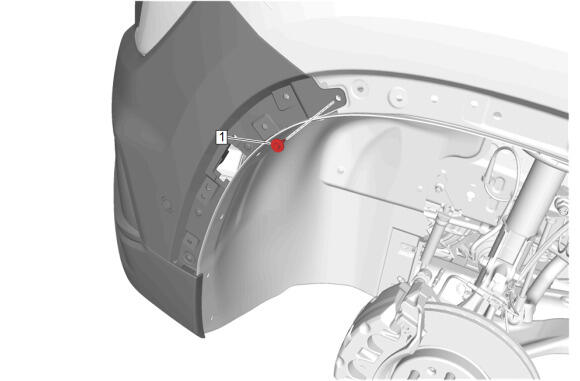

GM6465585Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [2x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

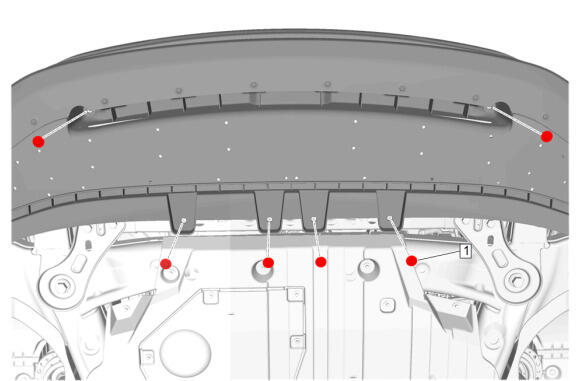

GM6465586Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Lower Stiffener Bolt [6x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

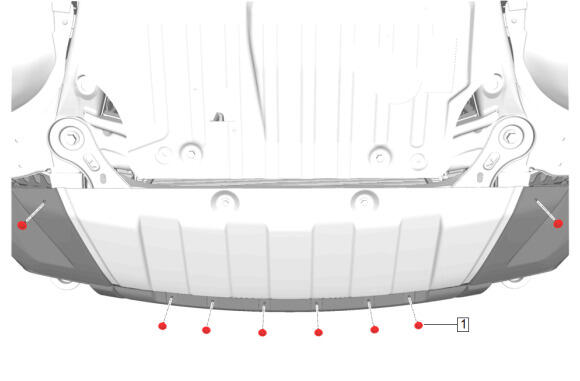

GM6419338Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia (AT4)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Bolt [8x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)

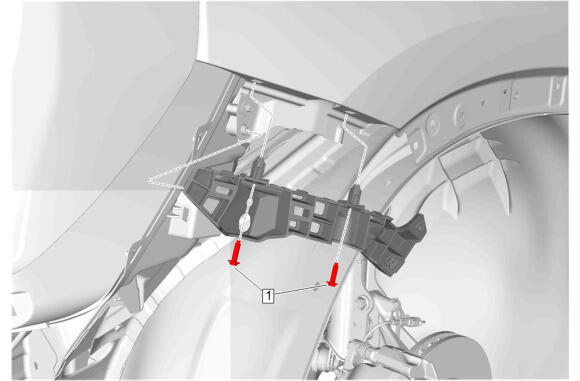

GM6481364Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Guide Bolt [2x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Guide Replacement

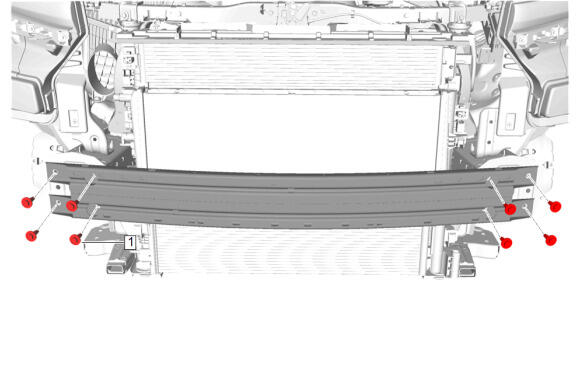

GM6420133Courtesy of GENERAL MOTORS COMPANY
Front Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Impact Bar Bolt [8x] - - 58 N.m (43 lb ft) Front Bumper Impact Bar Replacement (Base) , or Front Bumper Impact Bar Replacement (AT4)

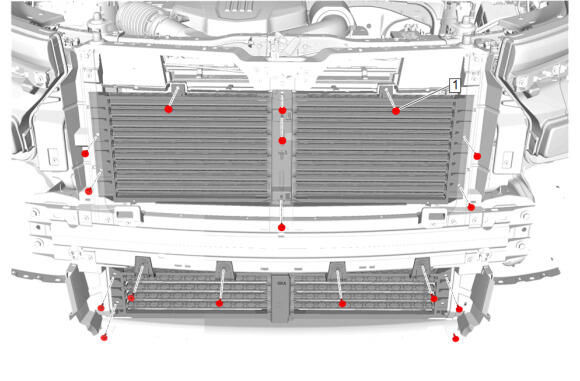

GM6420134Courtesy of GENERAL MOTORS COMPANY
Front Bumper Shutter

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Shutter Bolt [17x] - - 2.5 N.m (22 lb in) Front Bumper Shutter Replacement
Front Bumper Lower Shutter Replacement

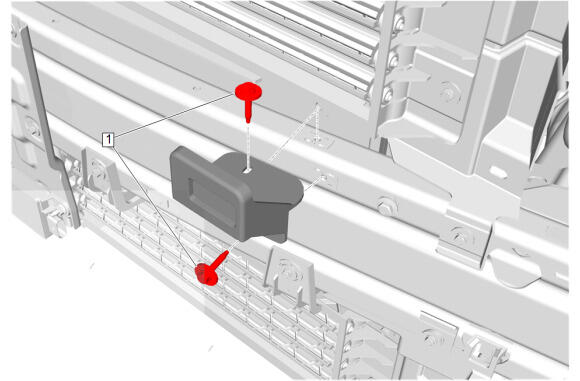

GM6420127Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Center Support

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Center Support Bolt [2x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Center Support Replacement

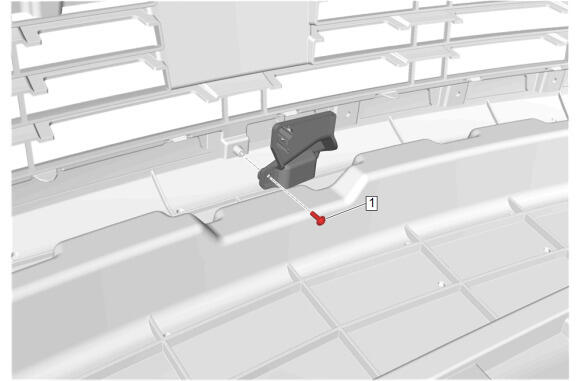

GM6481369Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Lower Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Lower Bracket Bolt - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Bracket Replacement

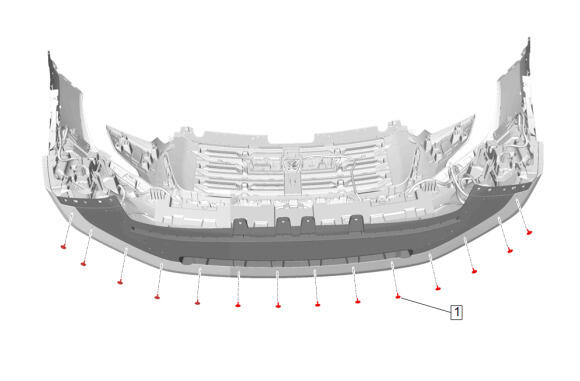

GM6481374Courtesy of GENERAL MOTORS COMPANY
Front Bumper Fascia Lower Stiffener

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Bumper Fascia Lower Stiffener Bolt [14x] - - 2.5 N.m (22 lb in) Front Bumper Fascia Lower Stiffener Replacement

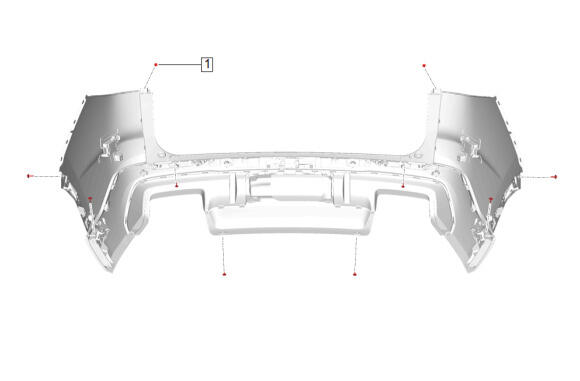

GM6481379Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Bolt [10x] - - 2.5 N.m (22 lb in) Rear Bumper Fascia Removal and Installation

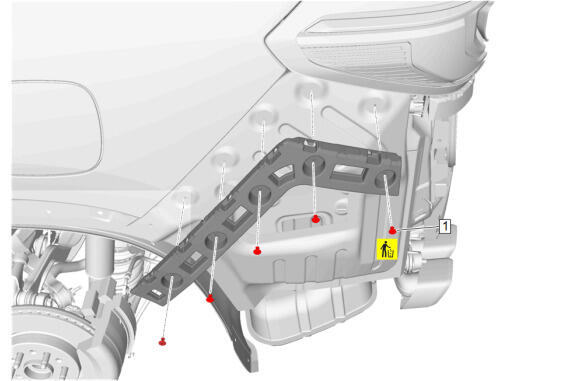

GM6481382Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Guide

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Guide Rivet [5x] Yes - - Rear Bumper Fascia Guide Replacement

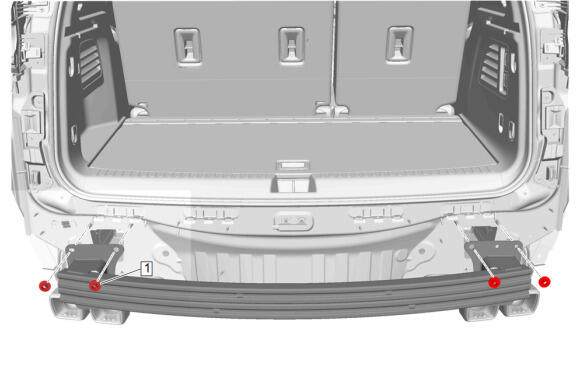

GM6481385Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Impact Bar Nut
[4x]		 - - 58 N.m (43 lb ft) Rear Bumper Impact Bar Replacement

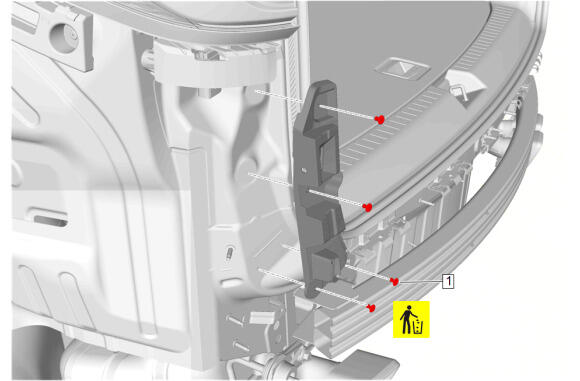

GM6481387Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Tail Lamp Opening Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Bumper Fascia Tail Lamp Opening Bracket Rivet
[4x]		 Yes - - Rear Bumper Fascia Tail Lamp Opening Bracket Replacement
