Installation Procedure

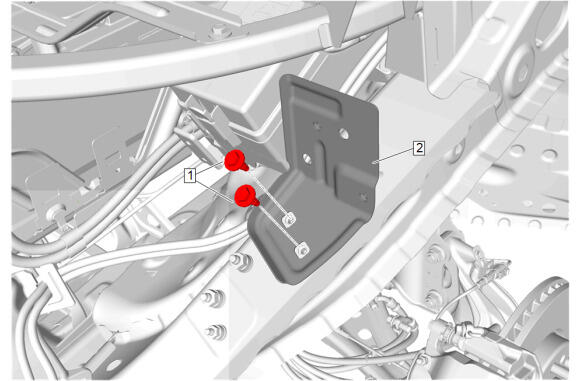

  1. GM6397897Courtesy of GENERAL MOTORS COMPANY

    Front Fender Front Bracket (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Front Fender Front Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

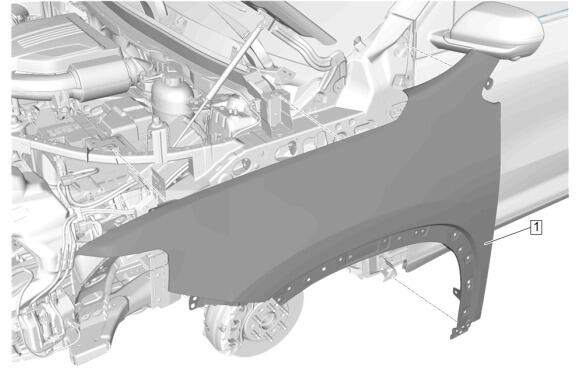

  3. GM6465615Courtesy of GENERAL MOTORS COMPANY

    Front Fender (1) - Install

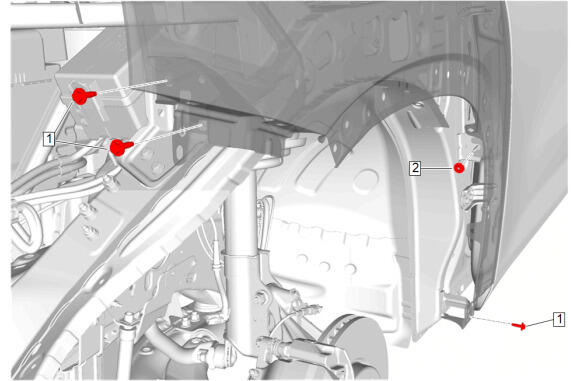

  4. GM6465614Courtesy of GENERAL MOTORS COMPANY

    Front Fender Nut (2) - Install and tighten - Fastener Specifications

  5. Front Fender Bolt (1) - Install and tighten [3x] - Fastener Specifications

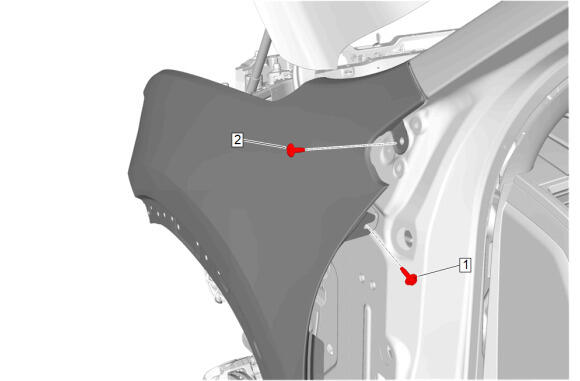

  6. GM6465613Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (2) - Install and tighten - Fastener Specifications

  7. Front Fender Bolt (1) - Install and tighten - Fastener Specifications

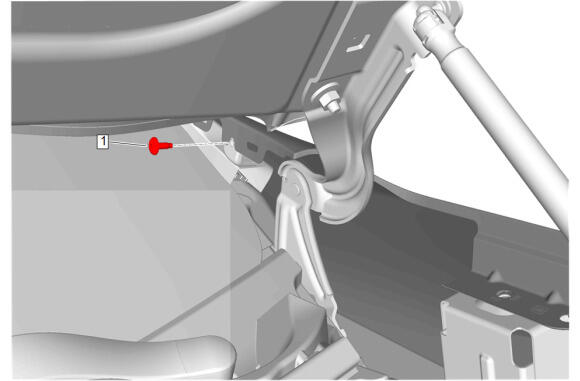

  8. GM6465612Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Install and tighten - Fastener Specifications

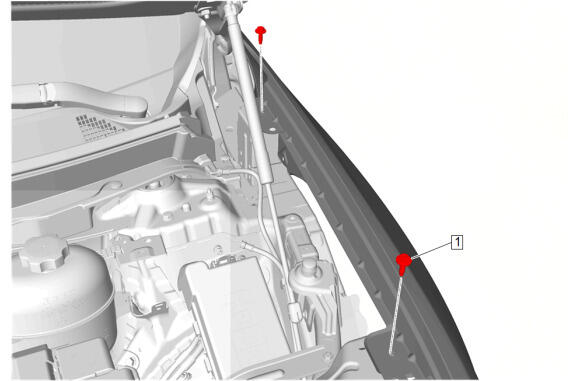

  9. GM6465611Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Install and tighten [2x] - Fastener Specifications

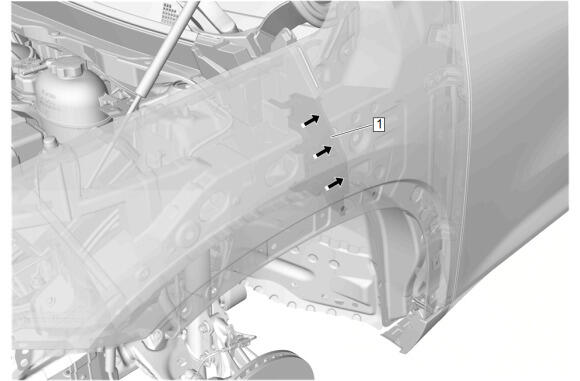

  10. GM6465610Courtesy of GENERAL MOTORS COMPANY

    Apply Structural foam 3M™ NVH Dampening Material or equivalent to the front compartment side rail baffle (1).

  11. GM6465615Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Fender Upper Rear Molding (1) - Install

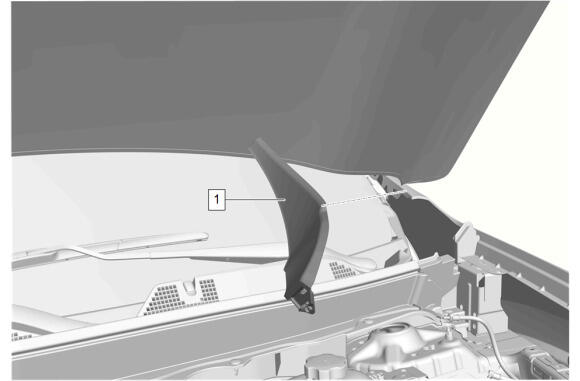

  12. GM6463582Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension (1) - Install

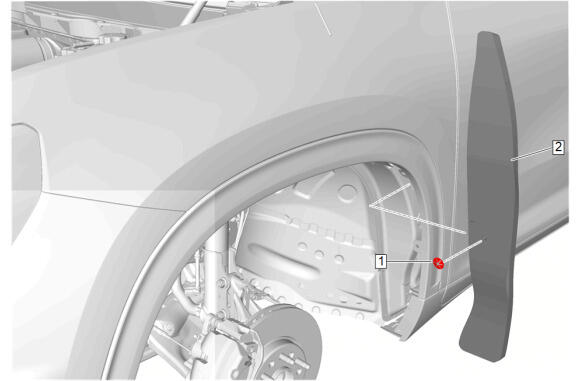

  13. GM6465609Courtesy of GENERAL MOTORS COMPANY

    Front Fender Insulator (2) - Install

  14. Front Fender Washer (1) - Install

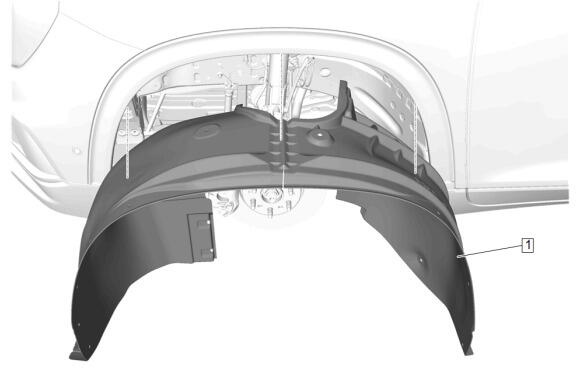

  15. GM6465634Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Install - Front Wheelhouse Liner Replacement

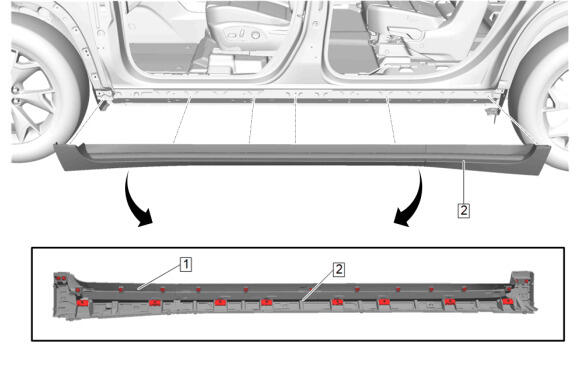

  16. GM6398043Courtesy of GENERAL MOTORS COMPANY

    Position the rocker panel molding (2) to the vehicle and seat the rocker panel molding retainers (1) into the body side outer panel.

  17. Rocker Panel Molding (2) - Install

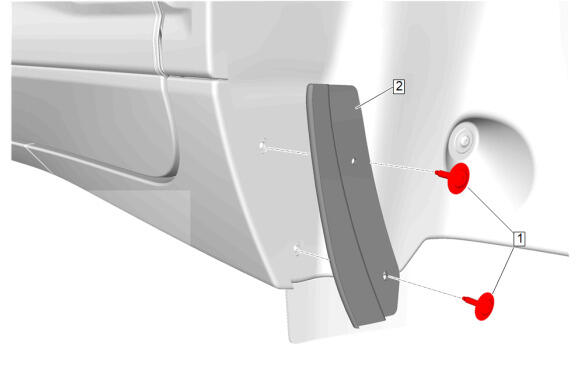

  18. GM6398033Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector- Upper (2) - Install

  19. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications

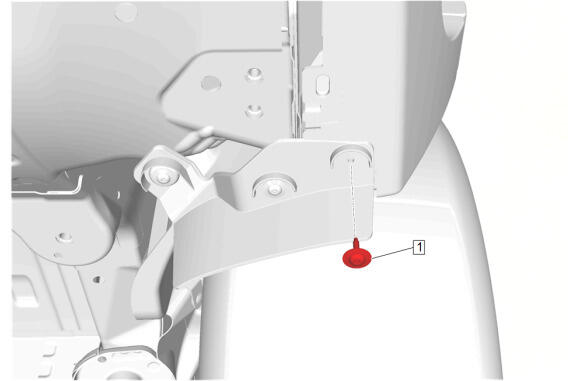

  20. GM6398011Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications

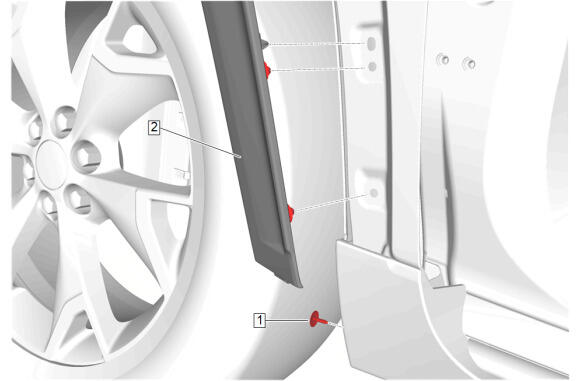

  21. GM6397965Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Opening Molding (2) - Install

  22. Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  23. Close both front and rear side doors.
  24. Lower the vehicle.

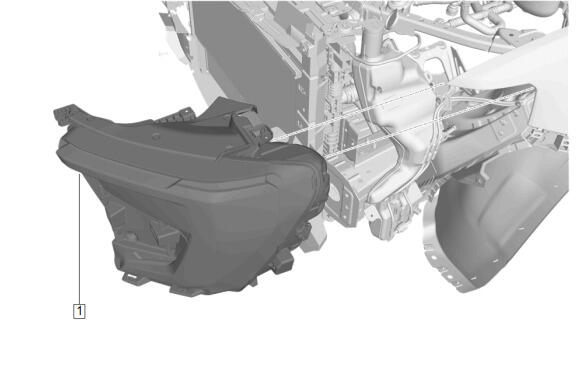

  25. GM6464355Courtesy of GENERAL MOTORS COMPANY

    Front Headlamp (2) - Install

  26. Connect the electrical connector.

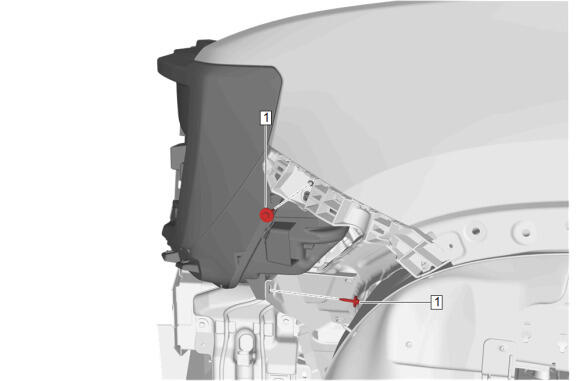

  27. GM6464354Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten [2x] - Fastener Specifications

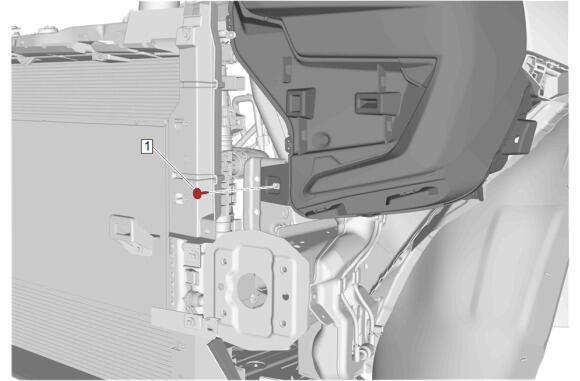

  28. GM6464353Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten- Fastener Specifications

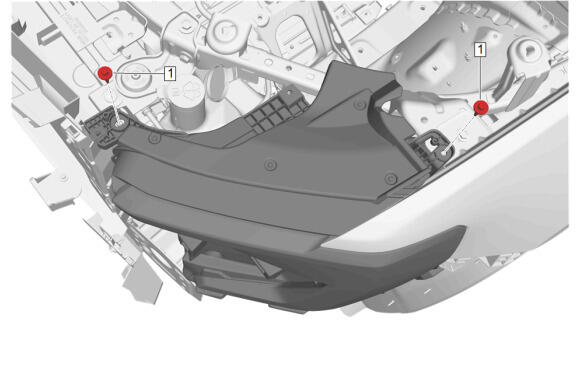

  29. GM6464352Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Install and tighten [2x] - Fastener Specifications

  30. After installation, aim the front headlamps. Front Headlamp Aiming

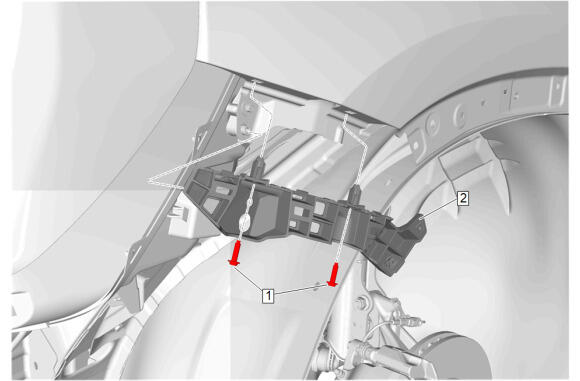

  31. GM6465573Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Guide (2) - Install

  32. Front Bumper Fascia Guide Bolt (1) - Install and tighten [2x] - Fastener Specifications

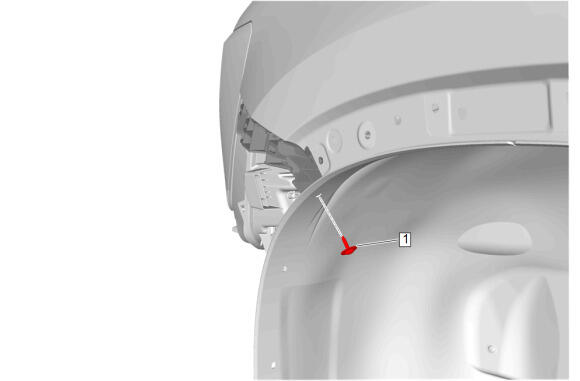

  33. GM6465572Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (1) - Install and tighten - Fastener Specifications

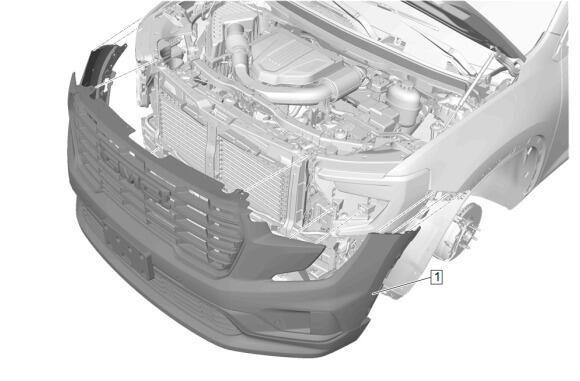

  34. GM6465587Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation (Base) , or Front Bumper Fascia Removal and Installation (AT4)
