Installation Procedure

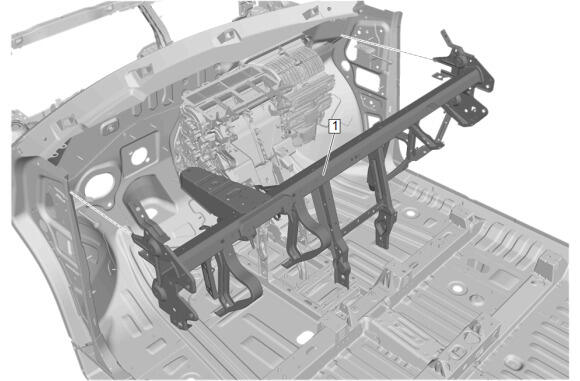

  1. GM6399572Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel tie bar (1) to the vehicle.

  2. Install any wiring harness connectors or retainers secured to the instrument panel tie bar (1).

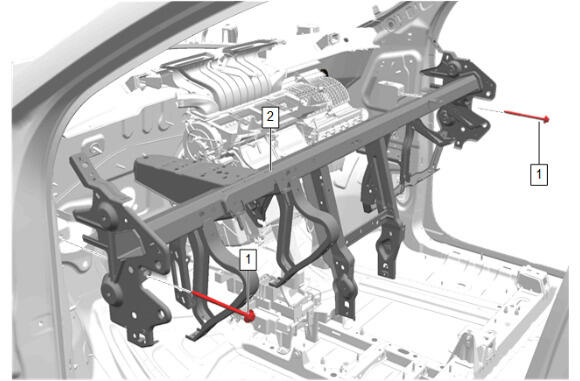

  3. GM6467082Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] - Fastener Specifications

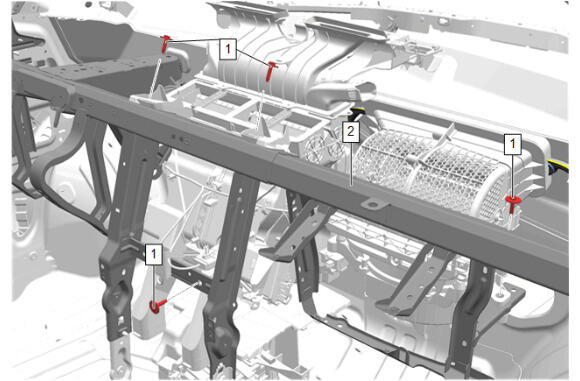

  4. GM6467081Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications

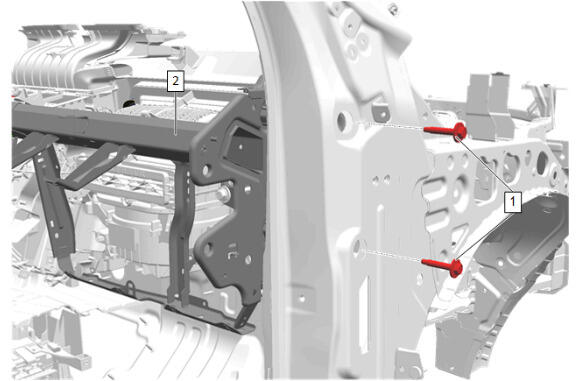

  5. GM6467080Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] - Fastener Specifications

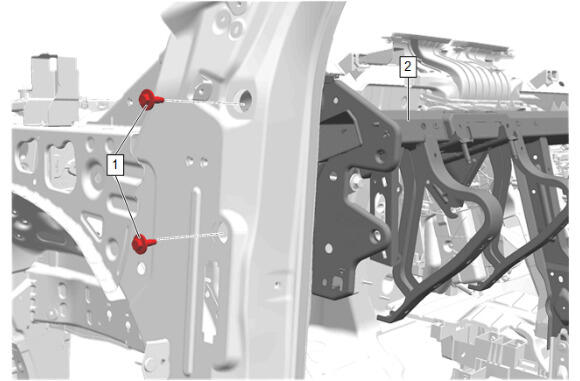

  6. GM6467079Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [2x] - Fastener Specifications

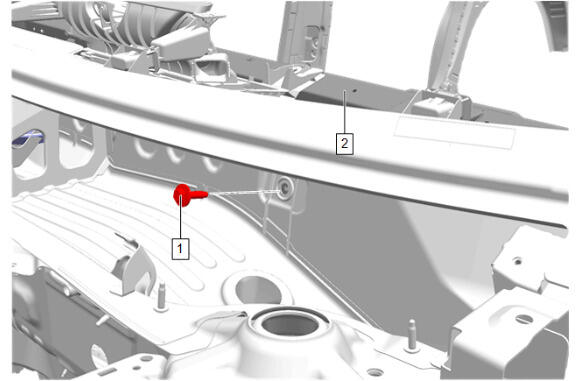

  7. GM6467078Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

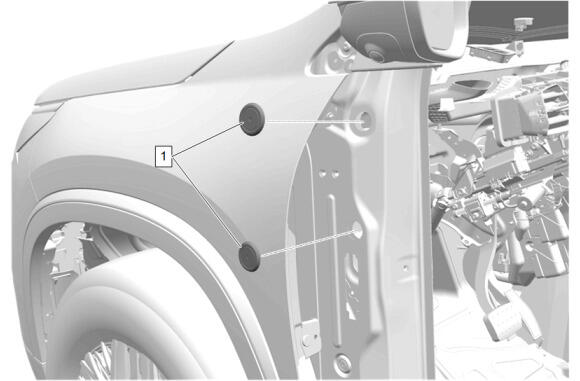

  8. GM6639217Courtesy of GENERAL MOTORS COMPANY

    Body Hinge Pillar Outer Panel Hole Plug - Left Side and Right Side (1) - Install [4x]

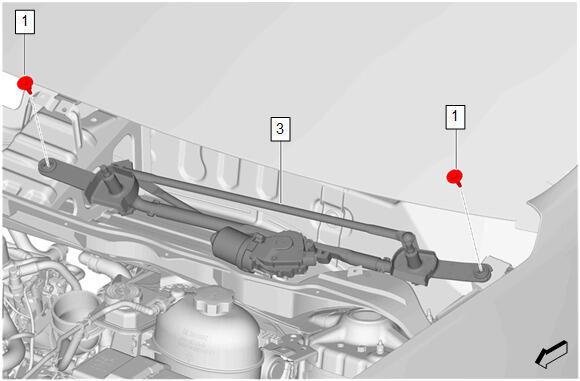

  9. GM6713513Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module (3) - Install

  10. Connect the electrical connector.
  11. Windshield Wiper System Module Bolt (2) - Install and tighten - Fastener Specifications
  12. Windshield Wiper System Module Bolt (1) - Install and tighten - Fastener Specifications

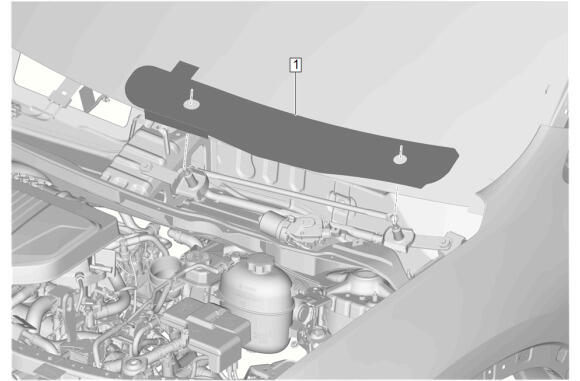

  13. GM6463630Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

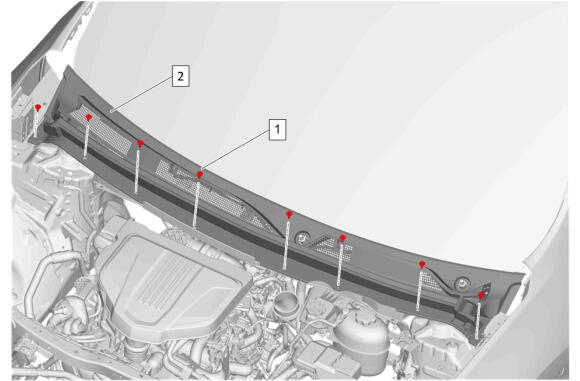

  14. GM6463610Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  15. Air Inlet Grille Panel Retainer (1) - Install [8x]

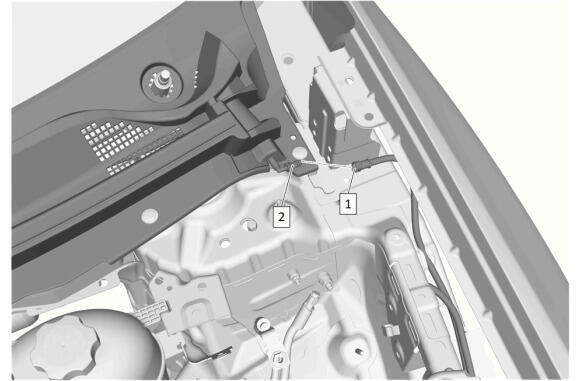

  16. GM6463613Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) @ Windshield Washer Nozzle Hose (2) - Connect

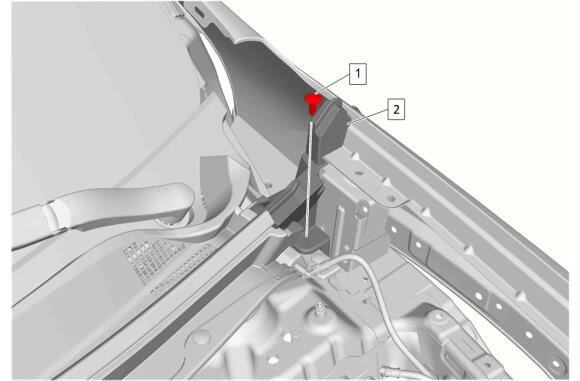

  17. GM6463614Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal - Left Side and Right Side (2) - Install [2x]

  18. Hood Rear Outer Air Inlet Seal Retainer - Left Side and Right Side (1) - Install [2x]
  19. GM6463582Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension - Left Side and Right Side (1) - Install [2x]

  20. Clean the wiper motor pivot shaft knurls with a soft wire brush before installing a new wiper arm.
  21. Position the wiper arm on the wiper motor pivot shaft.

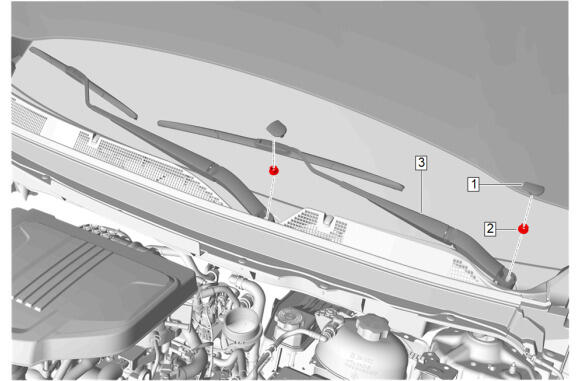

  22. GM6463565Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Install [2x]

  23. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
  24. Windshield Wiper Arm Nut Cap (1) - Install [2x]
  25. Align the windshield wiper arm. Windshield Wiper Arm Adjustment

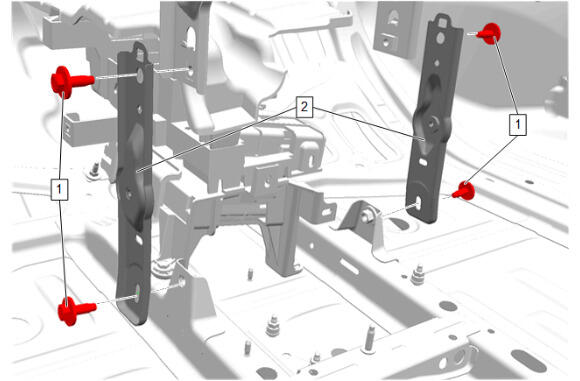

  26. GM6467077Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace (2) - Install [2x]

  27. Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [4x] - Fastener Specifications
  28. Connect the wiring harness retainers as necessary.
  29. GM4285094Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bracket Bolt (1) - Install and tighten - Fastener Specifications

  30. GM5169842Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

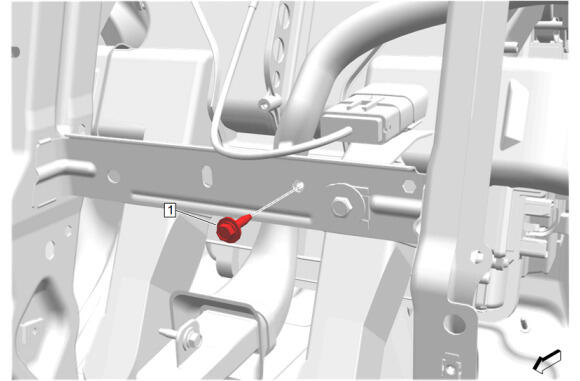

  31. GM6639205Courtesy of GENERAL MOTORS COMPANY

    Radio Cooling Duct Bolt (1) - Install and tighten - Fastener Specifications

  32. GM6467057Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  33. Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications

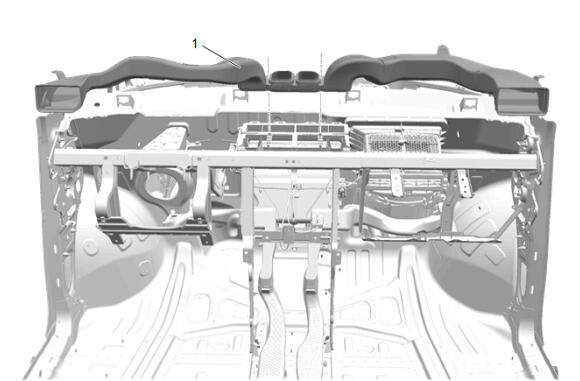

  34. GM6464317Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Air Outlet Duct (1) - Install

  35. Connect the wiring harness retainers as necessary.

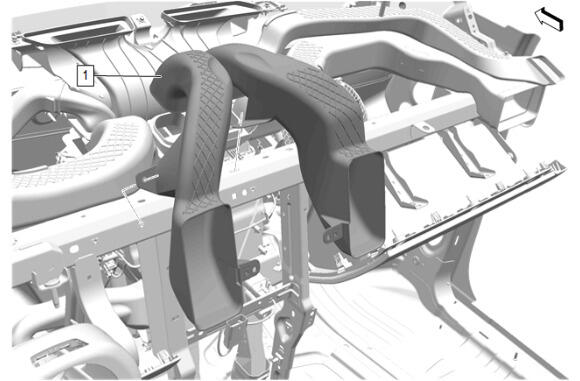

  36. GM6464304Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct (1) - Install

  37. Connect the wiring harness retainers as necessary.

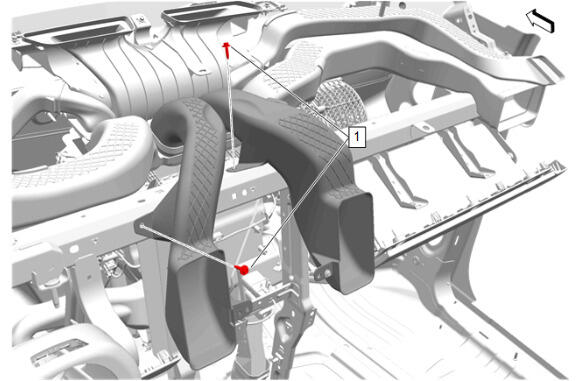

  38. GM6464303Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten [2x] - Fastener Specifications

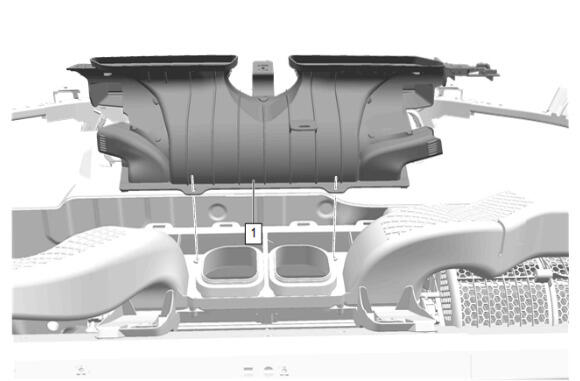

  39. GM6464294Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Install

  40. Connect the electrical connector.
  41. Connect the wiring harness retainers as necessary.

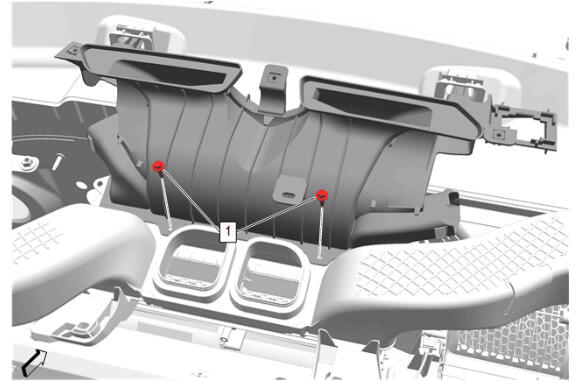

  42. GM6464293Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct Bolt (1) Install and tighten [2x] - Fastener Specifications

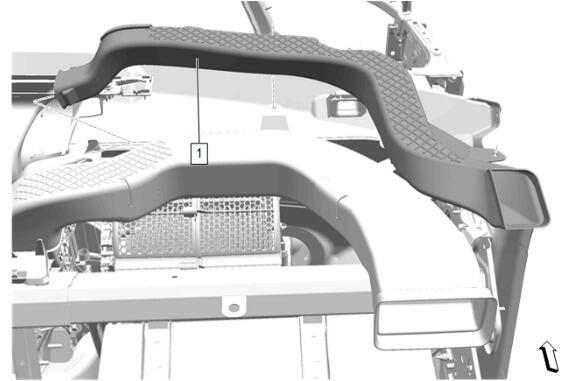

  43. GM6464292Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install

  44. Connect the wiring harness retainers as necessary.

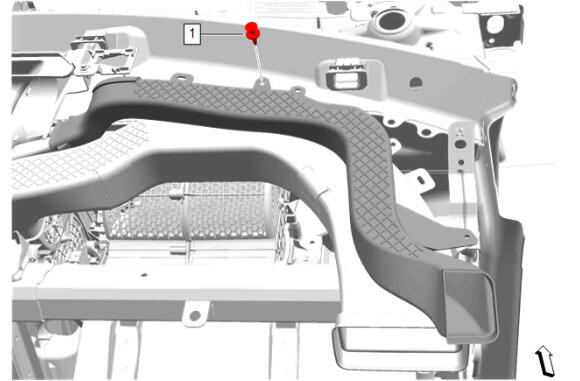

  45. GM6464291Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct Retainer (1) - Install

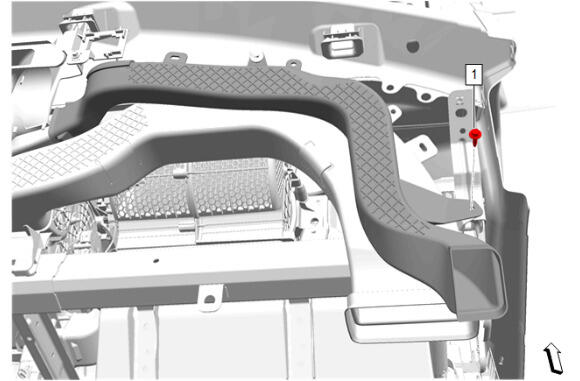

  46. GM6464290Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

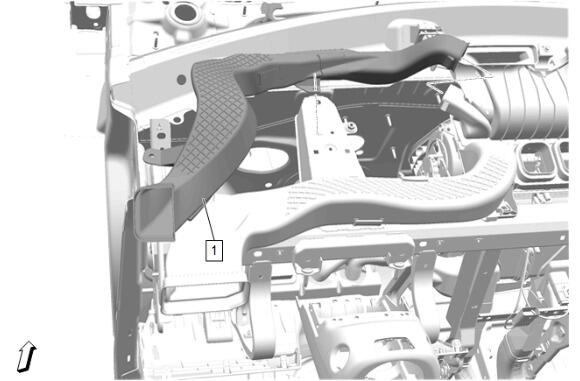

  47. GM6464289Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install

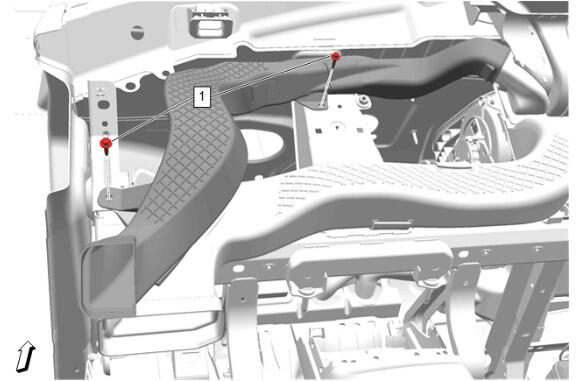

  48. GM6464288Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct Bolt (1) - Install and tighten [2x] - Fastener Specifications

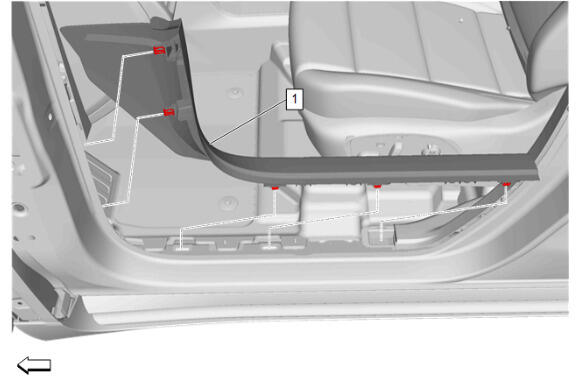

  49. GM6465237Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Sill Garnish Molding - Left Side and Right Side (1) - Install [2x]

  50. GM6463622Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Head - Up Display Bracket (2) - Install

  51. { If equipped } Install the clip.
  52. { If equipped } Head - Up Display Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
  53. GM6463620Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Connect the electrical connector.

  54. { If equipped } Head - Up Display (2) - Install
  55. { If equipped } Head - Up Display Bolt (1) - Install and tighten [4x] - Fastener Specifications
  56. Instrument Panel (1) - Install - Instrument Panel Removal and Installation
  57. GM6475635Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the left side and right side front side doors (1).

  58. Align the left side and right side door hinges with the markings made with the grease pencil.
  59. GM6475634Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Hinge Bolt - Door Side - Left Side and Right Side (2) - Install and tighten [8x] - Fastener Specifications

  60. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  61. Front Side Door Check Link Bolt - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications
  62. GM6475633Courtesy of GENERAL MOTORS COMPANY

    Connect the left side and right side front side door wiring harness (1) electrical connector.

  63. Inspect the left side and right side door for proper operation and alignment.
  64. If necessary, adjust the left side and right side front side door. Front Side Door Adjustment
