Fastener Specifications
Instrument Cluster
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Cluster Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Cluster Control Module Replacement |

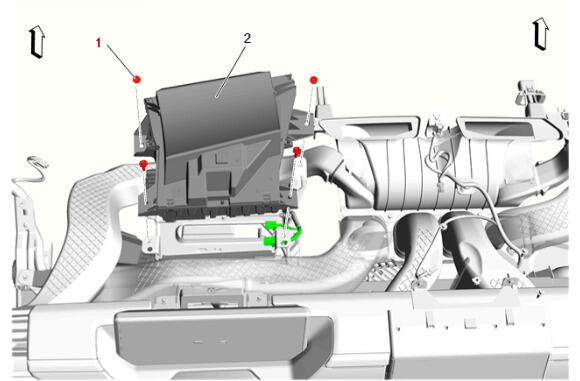

Head - Up Display
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Head - Up Display Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Head - Up Display Replacement |

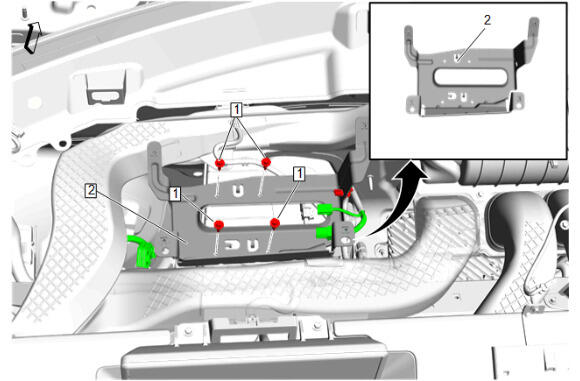

Head - Up Display Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Head - Up Display Bracket Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Head - Up Display Bracket Replacement |
