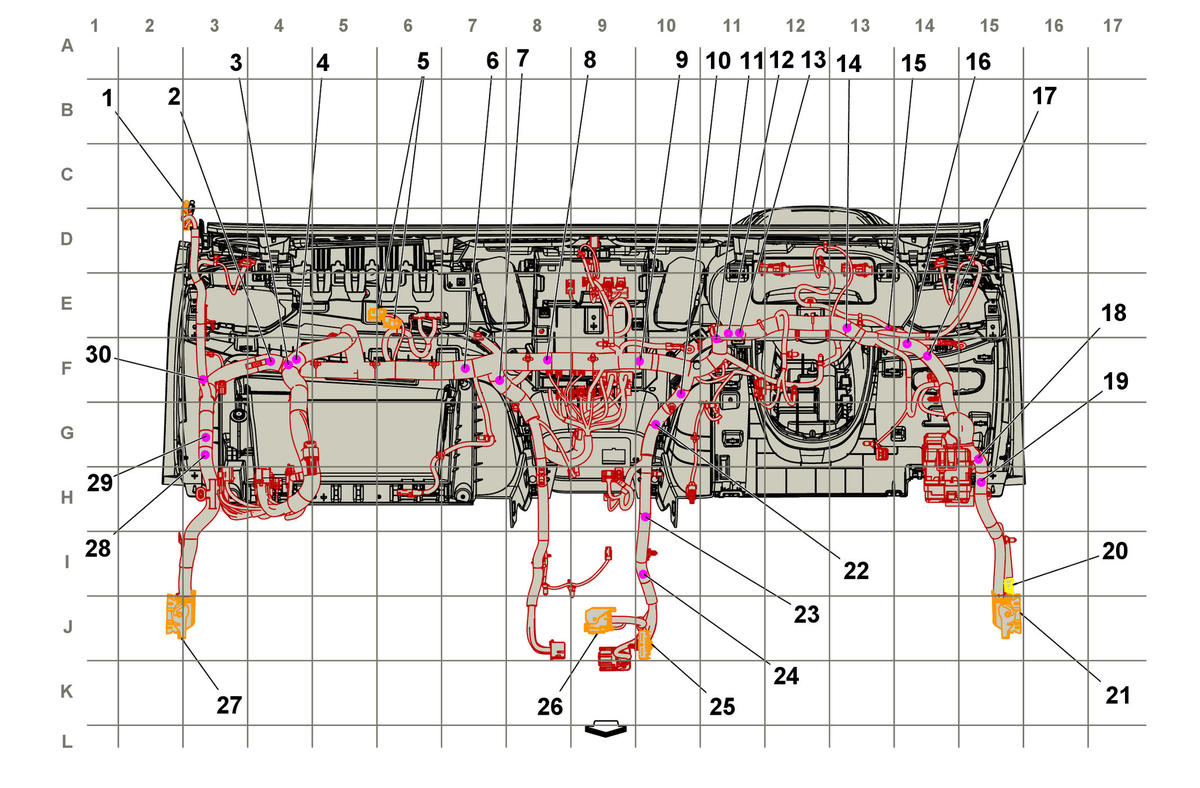

Instrument Panel Harness Routing (Chevrolet)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Harness Routing (Chevrolet)
| Harness Name | Callout |
|---|---|
| X205 Antenna Jumper Harness to Instrument Panel Harness X205 Antenna Jumper Harness to Instrument Panel Harness ((IOS/IOT/IOU)-UE1) , or X205 Antenna Jumper to Instrument Panel Harness (IOR+U2K) , or X205 Antenna Jumper to Instrument Panel Harness (UE1) | 1 |
| J219 Instrument Panel Harness | 2 |
| J218 Instrument Panel Harness | 3 |
| J224 Instrument Panel Harness (CJ2-UE1) | 4 |
| X212 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness (AY0) X212 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness (AY0) | 5 |
| J216 Instrument Panel Harness (KL9) | 6 |
| J217 Instrument Panel Harness | 7 |
| J215 Instrument Panel Harness | 8 |
| J213 Instrument Panel Harness | 9 |
| J209 Instrument Panel Harness | 10 |
| J208 Instrument Panel Harness | 11 |
| J200 Instrument Panel Harness | 12 |
| J207 Instrument Panel Harness | 13 |
| J206 Instrument Panel Harness | 14 |
| J205 Instrument Panel Harness | 15 |
| J204 Instrument Panel Harness | 16 |
| J203 Instrument Panel Harness | 17 |
| J202 Instrument Panel Harness | 18 |
| J201 Instrument Panel Harness | 19 |
| X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness | 20 |
| X202 Instrument Panel Harness to Body Harness X202 Instrument Panel Harness to Body Harness | 21 |
| J210 Instrument Panel Harness | 22 |
| J211 Instrument Panel Harness | 23 |
| J212 Instrument Panel Harness | 24 |
| X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness | 25 |
| X208 Floor Console Harness to Instrument Panel Harness X208 Floor Console Harness to Instrument Panel Harness | 26 |
| X203 Instrument Panel Harness to Body Harness X203 Instrument Panel Harness to Body Harness | 27 |
| J223 Instrument Panel Harness | 28 |
| J222 Instrument Panel Harness | 29 |
| J220 Instrument Panel Harness | 30 |
