X208 Floor Console Harness to Instrument Panel Harness

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

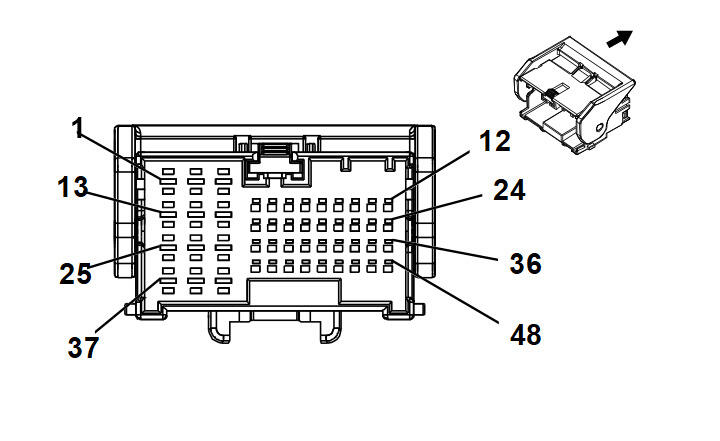

Connector Part Information Harness Type: Floor Console Harness OEM Connector: 13582059 Service Connector: Service by Harness - Description: 48 -Way F 1.2 MCON, 2.8 MCP Series (GY)	Connector Part Information Harness Type: Instrument Panel Harness OEM Connector: 1-2109455-3 Service Connector: 19329738 Description: 48 -Way M 1.2 MCON, 2.8 MCP Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required
II	Not required	J-35616-35 (VT)	No Tool Required
III	Not required	J-35616-4A (PU)	No Tool Required
IV	13505359	J-35616-5 (PU)	J-38125-215A
V	13575529	J-35616-5 (PU)	J-38125-215A
VI	13575574	J-35616-5 (PU)	J-38125-215A
VII	Not Available	No Tool Required	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	BK	1750	III	MCZ	Ground	1	0.35	BK	1750	V	MCR+MCZ
2	0.35	RD / BN	2240	III	MCZ	Battery Positive Voltage	2	0.35	RD / BN	2240	V	MCR+MCZ
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
4	0.35	BU / BK	6108	I	(-EPH)	Park Brake Release Switch Signal	4	-	BU / BK	6108	VII	-
5	0.35	YE / RD	7683	I	(-EPH)	Park Brake Release Switch Voltage Reference	5	-	YE / RD	7683	VII	-
6	0.35	YE	1492	I	(-EPH)	Park Brake Switch Supply Voltage	6	-	YE	1492	VII	-
7	0.35	YE	6817	I	-	LED Backlight Dimming Control 1	7	0.35	YE	6817	V	-
8	0.35	RD / GY	2840	I	KA6	Battery Positive Voltage	8	0.5	RD / GN	1840	IV	KA6
9	0.35	GN / WH	4115	I	-	Body Control Module LIN Bus 5	9	0.35	GN / WH	4115	V	-
10	0.35	GY / GN	1561	I	-	AWD Indicator Control	10	0.35	GY / GN	1561	V	F48
11	0.35	GY	4109	I	-	Driver Mode Switch 5V Reference	11	0.35	GY	4109	V	(F48/EPH)
12	0.35	BU / VT	1134	I	(-EPH)	Park Brake Switch Signal	12	-	BU / VT	1134	VII	-
13	0.35 0.35	WH / GN BU / GY	2911 553	III III	EPH+V92 V92-EPH	Driver Mode 1 Indicator Control Shift Select Switch Performance Signal	13	0.35 -	WH / GN BU / GY	2911 553	V VII	EPH+V92 V92-EPH
14	-	-	-	-	-	Not Occupied	14	-	-	-	-	-
15	-	-	-	-	-	Wireless Charging System Fault Indicator Control	15	0.5	BN	4511	IV	EPH+K4C
16	0.35	RD / YE	2340	I	Z88+KA1	Battery Positive Voltage	16	0.35	RD / YE	2340	V	Z88+KA1
17	0.35	GY / GN	2555	I	-	Rear Parking Assist Disable Signal	17	0.35	GY / GN	2555	V	(UD5/UFQ)
18	0.35	GN / BN	5852	I	-	Rear Parking Assist Disable LED Signal	18	0.35	GN / BN	5852	V	(UD5/UFQ)
19	0.35	WH / YE	7557	I	Z88+TSQ	Interior Door Handle Accent Lighting Control	19	0.35	WH / YE	7557	V	Z88+TSQ
20	0.35 0.35	BN VT	6107 4601	I I	-EPH EPH+K4C	Park Brake Apply Switch Signal Retained Accessory Power Control	20	- 0.35	BN VT	6107 4601	VII V	-EPH EPH+K4C+USS
21	0.35	YE / BU	2912	I	EPH	Driver Mode 2 Indicator Control	21	0.35	YE / BU	2912	V	EPH
22	0.35	BN / VT	2914	I	EPH	Driver Mode 4 Indicator Control	22	0.35	BN / VT	2914	V	EPH
23	0.35	VT / YE	2663	I	EPH+F48	Driver Mode 5 Indicator Control	23	0.35	VT / YE	2663	V	EPH+F48
24	0.35	GY / VT	755	I	(-EPH)	Retained Accessory Power Relay Coil Control	24	-	GY / VT	755	VII	-
25	-	-	-	-	-	Not Occupied	25	-	-	-	-	-
26	1.5	BK	2250	II	-	Ground	26	1.5	BK	2250	VI	KI6/KI7
27	-	-	-	-	-	Not Occupied	27	-	-	-	-	-
28	0.35	BU / YE	6844	I	-	ABS/Traction Control Hill Descent Control Switch Signal	28	0.35	BU / YE	6844	V	EPH+JHD
29	0.35	WH	6816	I	-	Indicator Dimming Control	29	0.35	WH	6816	V	-
30	0.35	GY / RD	7684	I	(-EPH)	Park Brake Apply Switch Voltage Reference	30	-	GY / RD	7684	VII	-
31	0.35	GY / BK	3276	I	-	Immobilizer Control Module Control	31	0.35	GY / BK	3276	V	-
32	0.35	GN / VT	7533	I	-	Immobilizer LIN Bus 1	32	0.35	GN / VT	7533	V	-
33	0.35	GN / GY	3277	I	-	Vehicle Anti-Theft System Immobilizer Low Reference	33	0.35	GN / GY	3277	V	-
34	0.35	BU	3554	I	-	Interior Passive Entry Antenna 2 High Signal	34	0.35	BU	3554	V	-
35	0.35	GY / BK	3555	I	-	Interior Passive Entry Antenna 2 Low Signal	35	0.35	GY / BK	3555	V	-
36	0.5	WH / BN	6815	I	-	Inadvertent Load Control	36	0.5	WH / BN	6815	IV	-
37	1.5	VT	1701	II	KPA	Retained Accessory Power Control	37	-	VT	1701	VII	-
38	1.5	BK	2250	II	-	Ground	38	1.5	BK	2250	VI	-
39	1.5	RD / WH	2040	II	-	Battery Positive Voltage	39	1.5	RD / WH	2040	VI	KI6/KI7
40	0.35	VT	4083	I	-	Retained Accessory Power Relay 2 Coil Control	40	0.35	GY / GN	4083	V	-
41	0.35	WH / VT	4108	I	-	Driver Mode Switch Signal	41	0.35	WH / VT	4108	V	(F48/EPH)
42	0.5	RD / WH	5440	I	USS	Battery Positive Voltage	42	0.35	VT	4601	V	-
43	0.35	GN	4512	I	EPH+K4C	Wireless Charging System Charge Indicator Control	43	0.35	GN	4512	V	EPH+K4C
44	0.35	GN / BU	6133	I	(-EPH)	Body Control Module LIN Bus 2	44	-	GN / BU	6133	VII	-
45	0.35	GY / WH	3153	I	-	Lane Departure Warning Disable Switch Signal	45	0.35	GY / WH	3153	V	EPH+(UEU/UHX)
46	0.35	WH	3152	I	-	Lane Departure Warning Indicator Control	46	0.35	WH	3152	V	(EPH)+(UEU/UHX)
47	0.35	BU / BN	3161	I	-	Parking Assist Parallel Parking Disable Switch Signal	47	0.35	BU / BN	3161	V	UFQ
48	0.35	BK	1650	I	EPH+K4C	Ground	48	0.35	BK	1650	V	EPH+K4C
