X205 Antenna Jumper to Instrument Panel Harness (IOR+U2K)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| - |
 Courtesy of GENERAL MOTORS COMPANY
|

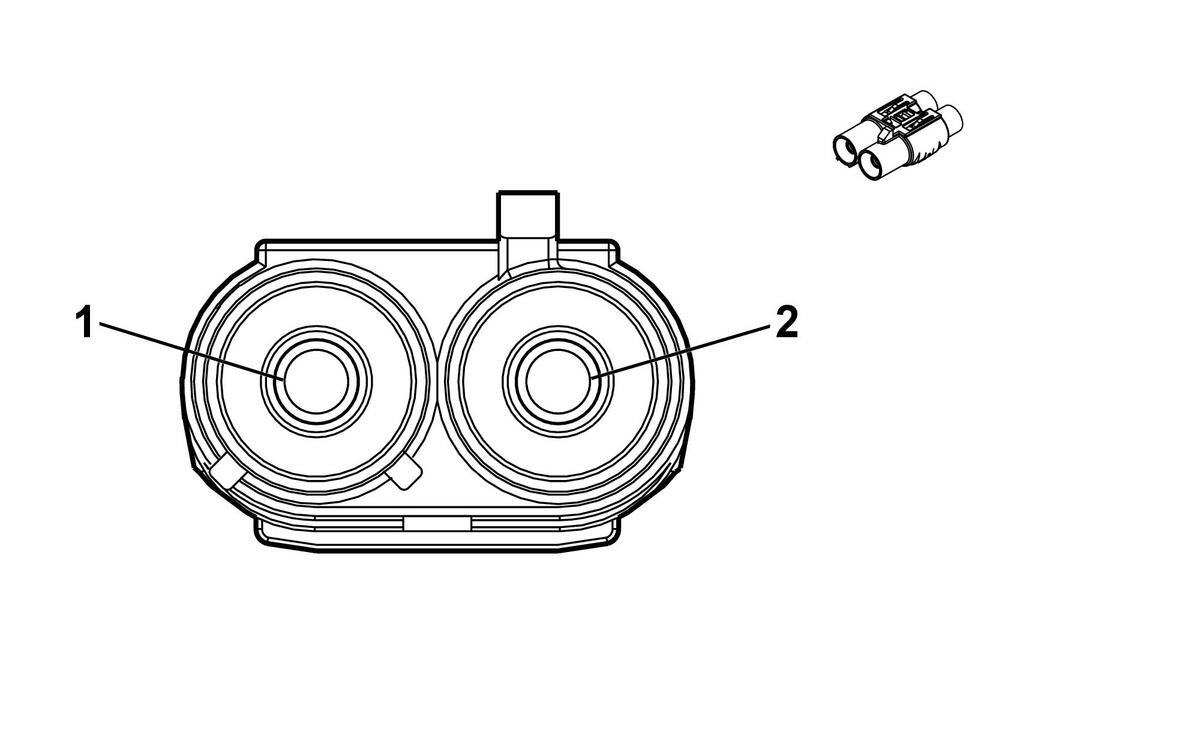

Connector Part Information
- Harness Type: Antenna Jumper Harness COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly -
- Description: 2 -Way F
|
Connector Part Information
- Harness Type: Instrument Panel Harness COAX
- OEM Connector: 1-1924855-0
- Service Connector: Service by Cable Assembly -
- Description: 2 -Way M Coax Type (CU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
(XM +/-HD) Coaxial Antenna XM Signal |
- |
- |
Coax Cable |
- |
I |
- |
