X205 Antenna Jumper Harness to Instrument Panel Harness ((IOS/IOT/IOU)-UE1)
WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

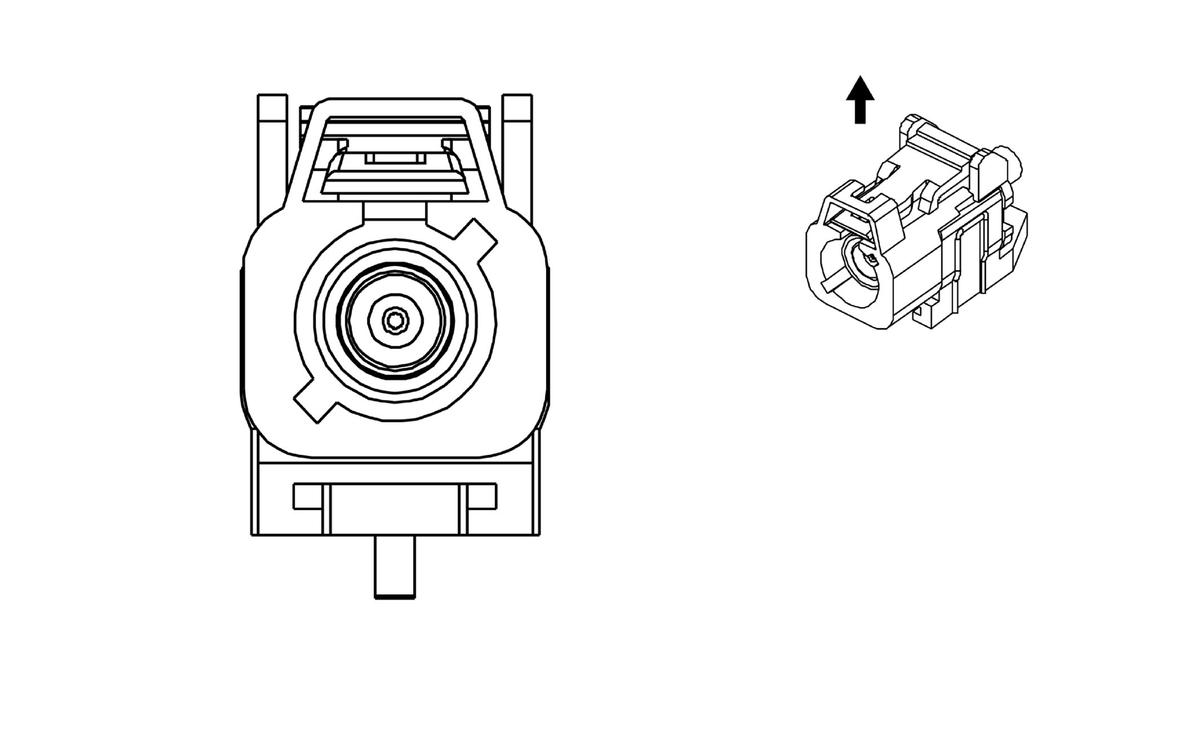

Connector Part Information
- Harness Type: Antenna Jumper Harness COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly -
- Description: 1 -Way F
|
Connector Part Information
- Harness Type: Instrument Panel Harness COAX
- OEM Connector: 13580569
- Service Connector: Service by Cable Assembly -
- Description: 1 -Way M Coax Type (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
(GPS only) Coaxial Antenna GPS Signal |
- |
- |
Coax Cable |
- |
I |
- |
