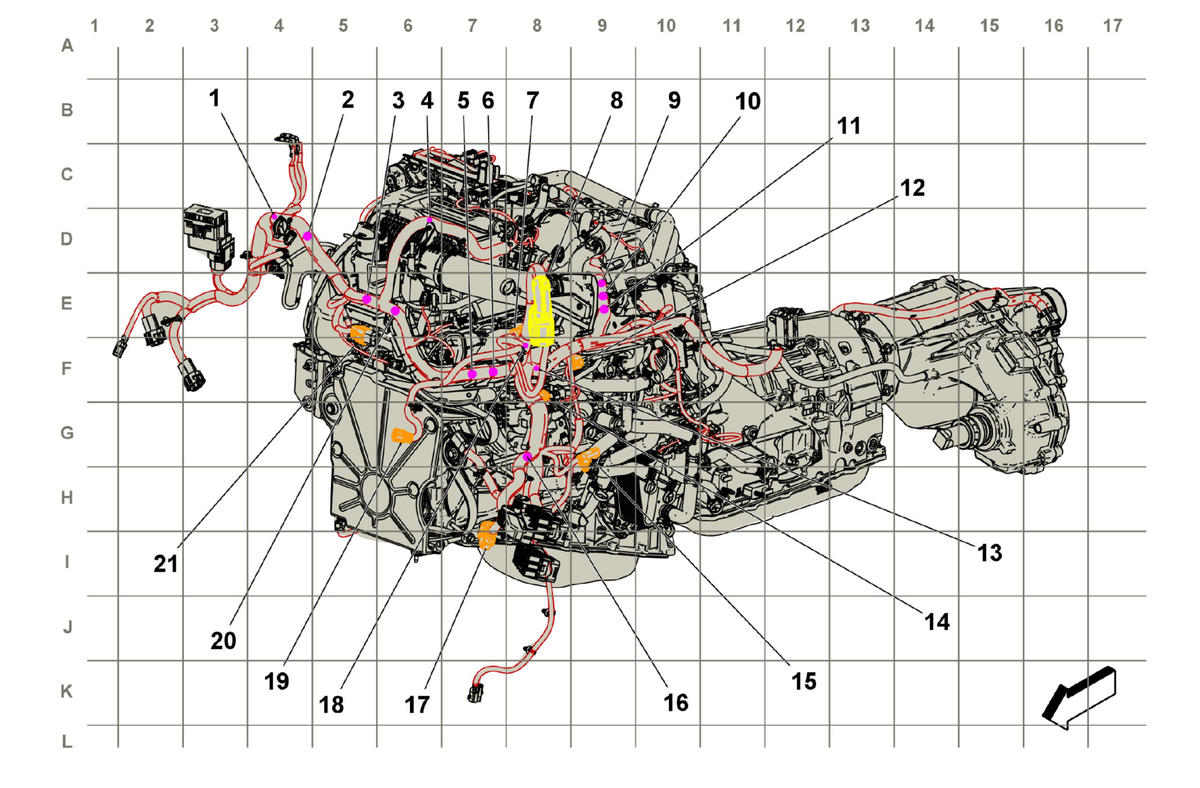

Engine Compartment - Engine Harness - Left Front (LM2)
Engine Compartment - Engine Harness - Left Front (LM2)
| Items |
|---|
| 1. J187 Engine Harness (LM2) |
| 2. J159 Engine Harness |
| 3. J168 Engine Harness |
| 4. J186 Engine Harness (LM2) |
| 5. J189 Engine Harness (LM2) |
| 6. J188 Engine Harness (LM2) |
| 7. X172 Engine Harness to Glow Plug Jumper Harness (LM2) X172 Engine Harness to Glow Plug Jumper Harness (LM2) |
| 8. X115 Engine Harness to Body Harness X115 Engine Harness to Body Harness |
| 9. J181 Engine Harness (LM2) |
| 10. J180 Engine Harness (LM2) |
| 11. J170 Engine Harness (LM2) |
| 12. X153 Engine Harness to Engine Coolant Temperature Jumper Harness (LM2) X153 Engine Harness to Engine Coolant Temperature Jumper Harness (LM2) |
| 13. J169 Engine Harness (LM2) |
| 14. X165 Engine Harness to Engine Block Coolant Flow Control Valve Jumper Harness (LM2) X165 Engine Harness to Engine Block Coolant Flow Control Valve Jumper Harness (LM2) |
| 15. X116 Front Axle Harness to Engine Harness (NP0/NQH) X116 Front Axle Harness to Engine Harness (NP0/NQH) |
| 16. J158 Engine Harness |
| 17. X126 Engine Harness to Chassis Harness X126 Engine Harness to Chassis Harness |
| 18. J154 Engine Harness |
| 19. X114 Engine Harness to Active Grille Air Shutter Harness (VTI/WMI) X114 Engine Harness to Active Grille Air Shutter (VTI+(L84/L87)) , or X114 Engine Harness to Active Grille Air Shutter (VTI+LM2) . |
| 20. J162 Engine Harness (LM2) |
| 21. X160 Engine Harness to Bank 1 Fuel Rail Harness (L82/L84/L87/LV3) (Engine Harness to Fuel Rail Harness (L3B)) X160 Engine Harness to Fuel Injector Harness (LM2) |
