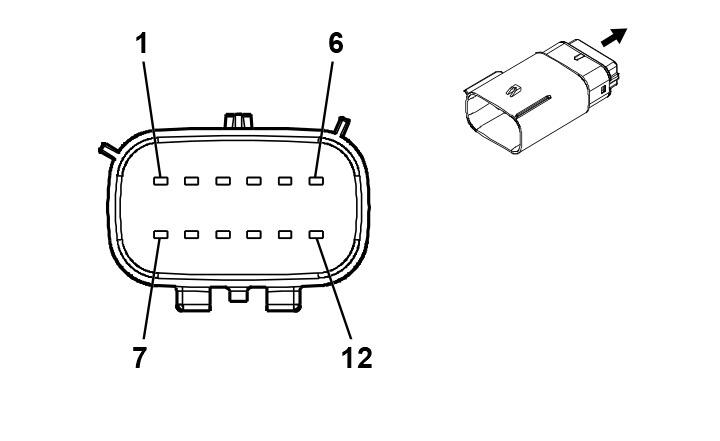

X160 Engine Harness to Fuel Injector Harness (LM2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 33221171
- Service Connector: 19333239
- Description: 12-Way F 1.5 MX Series, Sealed (D-GY)
|
Connector Part Information
- Harness Type: Fuel Injector
- OEM Connector: 33482-6261
- Service Connector: Service by Harness -
- Description: 12-Way M 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
85528055 |
J-35616-14 (GN) |
J-38125-217 |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN/WH |
4901 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 1 |
1 |
1.5 |
BN/WH |
4901 |
II |
- |
| 2 |
1.5 |
BN |
4801 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 1 |
2 |
1.5 |
BN |
4801 |
II |
- |
| 3 |
1.5 |
BU/GY |
4902 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 2 |
3 |
1.5 |
BU/GY |
4902 |
II |
- |
| 4 |
1.5 |
BU |
4802 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 2 |
4 |
1.5 |
BU |
4802 |
II |
- |
| 5 |
1.5 |
GN/GY |
4903 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 3 |
5 |
1.5 |
GN/GY |
4903 |
II |
- |
| 6 |
1.5 |
GN |
4803 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 3 |
6 |
1.5 |
GN |
4803 |
II |
- |
| 7 |
1.5 |
BU/WH |
4904 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 4 |
7 |
1.5 |
BU/WH |
4904 |
II |
- |
| 8 |
1.5 |
GY/BU |
4804 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 4 |
8 |
1.5 |
GY/BU |
4804 |
II |
- |
| 9 |
1.5 |
GN/WH |
4905 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 5 |
9 |
1.5 |
GN/WH |
4905 |
II |
- |
| 10 |
1.5 |
WH/GN |
4805 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 5 |
10 |
1.5 |
WH/GN |
4805 |
II |
- |
| 11 |
1.5 |
VT/GY |
4906 |
I |
- |
Direct Fuel Injector High Voltage Supply Cylinder 6 |
11 |
1.5 |
VT/GY |
4906 |
II |
- |
| 12 |
1.5 |
VT/GN |
4806 |
I |
- |
Direct Fuel Injector High Voltage Control Cylinder 6 |
12 |
1.5 |
VT/GN |
4806 |
II |
- |
