X165 Engine Harness to Engine Block Coolant Flow Control Valve Jumper Harness (LM2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

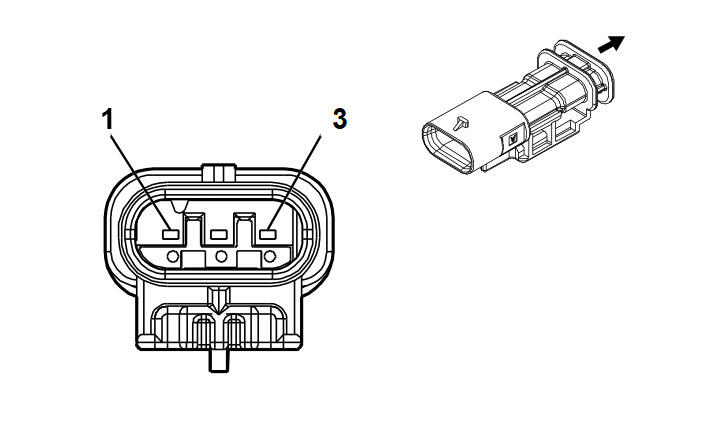

Connector Part Information
- Harness Type: Engine
- OEM Connector: 33358808
- Service Connector: 19371206
- Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Engine Block Coolant Flow Control Valve Jumper
- OEM Connector: 13591344
- Service Connector: Service by Harness -
- Description: 3-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| II |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/BN |
2732 |
I |
- |
Engine Control Module LIN Bus 4 |
1 |
0.5 |
GN/BN |
2732 |
II |
- |
| 2 |
0.5 |
BK |
6550 |
I |
- |
Ground |
2 |
0.5 |
BK |
6550 |
II |
- |
| 3 |
0.5 |
VT/BU |
5294 |
I |
- |
Powertrain Main Relay Fused Supply Voltage 5 |
3 |
0.5 |
VT/BU |
5294 |
II |
- |
