X172 Engine Harness to Glow Plug Jumper Harness (LM2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

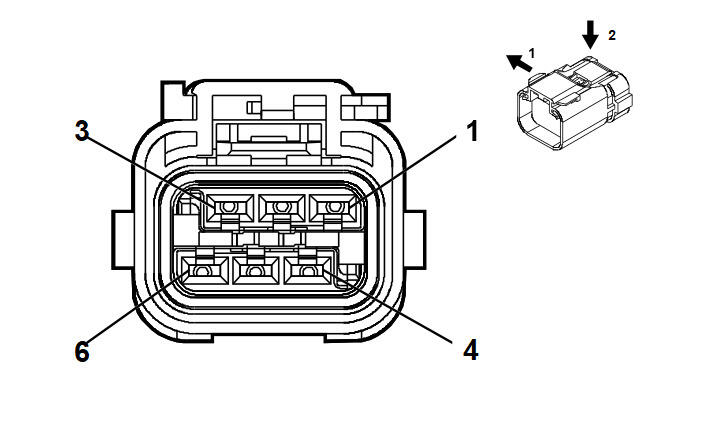

Connector Part Information
- Harness Type: Engine
- OEM Connector: 15419838
- Service Connector: 19371212
- Description: 6-Way F 2.8 APEX Series, Sealed (BK)
|

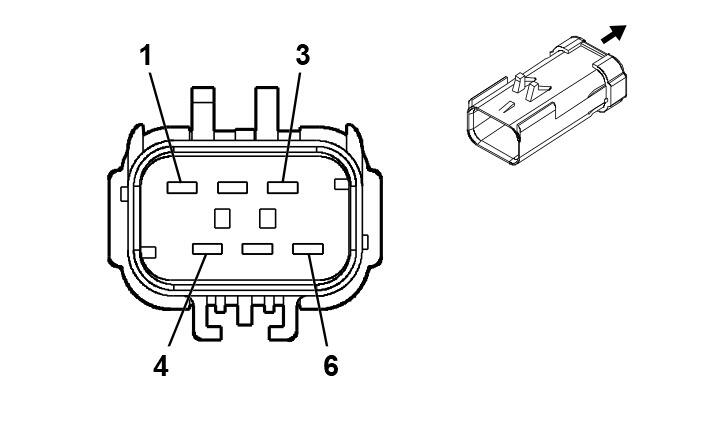

Connector Part Information
- Harness Type: Glow Plug Jumper
- OEM Connector: 54200612
- Service Connector: Service by Harness -
- Description: 6-Way M 2.8 APEX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| II |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY/BU |
1581 |
I |
- |
Glow Plug 1 Control |
1 |
2.5 |
GY/RD |
1581 |
II |
- |
| 2 |
2.5 |
GY/BN |
1582 |
I |
- |
Glow Plug 2 Control |
2 |
2.5 |
GY/BK |
1582 |
II |
- |
| 3 |
2.5 |
GY/GN |
1583 |
I |
- |
Glow Plug 3 Control |
3 |
2.5 |
GY/GN |
1583 |
II |
- |
| 4 |
2.5 |
GY/YE |
1584 |
I |
- |
Glow Plug 4 Control |
4 |
2.5 |
GY/YE |
1584 |
II |
- |
| 5 |
2.5 |
GY/WH |
1585 |
I |
- |
Glow Plug 5 Control |
5 |
2.5 |
GY/WH |
1585 |
II |
- |
| 6 |
2.5 |
GY/VT |
1586 |
I |
- |
Glow Plug 6 Control |
6 |
2.5 |
GY |
1586 |
II |
- |
