Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

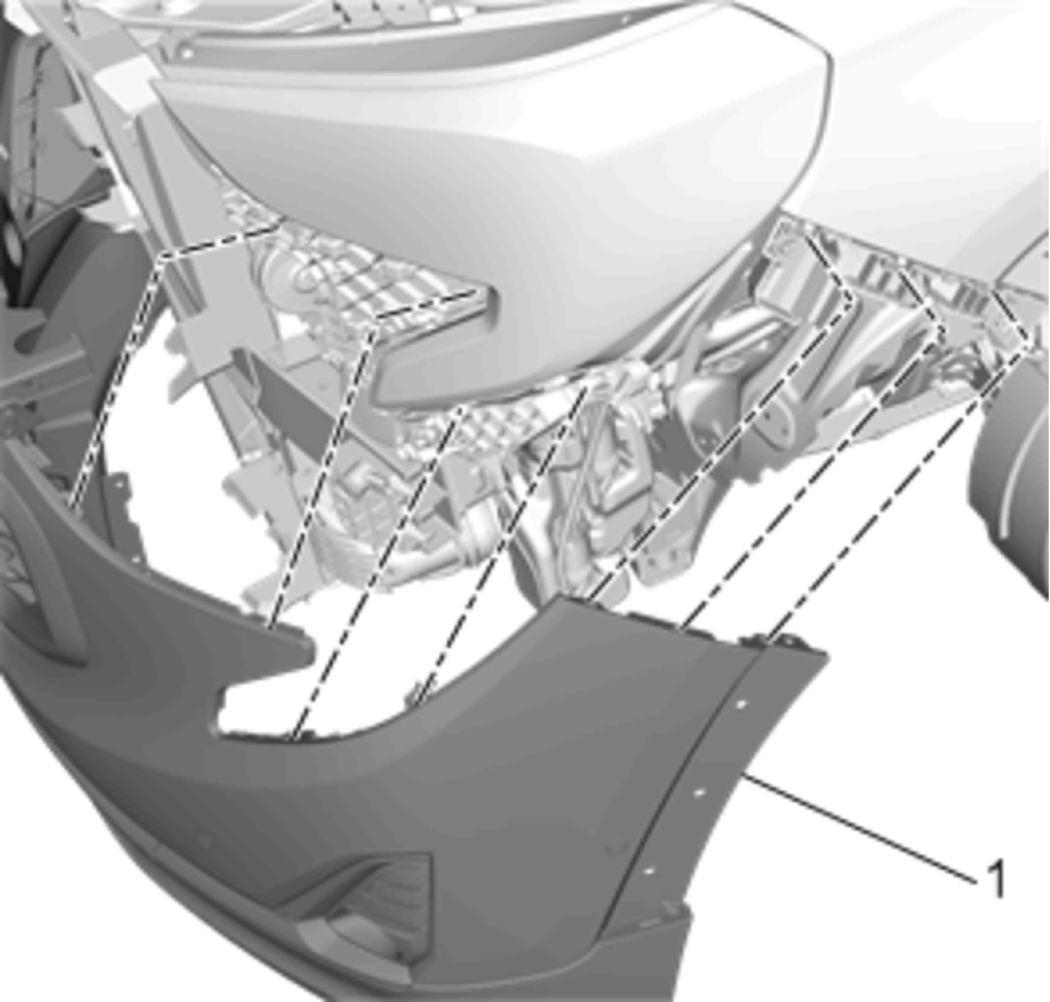

With the aid of an assistant, install the fascia. (1)
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Secure the front bumper fascia (1) to the front bumper fascia guide.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Bumper Fascia Bolt(1) - Install and tighten2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Grille Bolt(1) - Install and tighten[6x]2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Hood Secondary Latch Release Cable(2) - Remove - Hood Secondary Latch Release Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

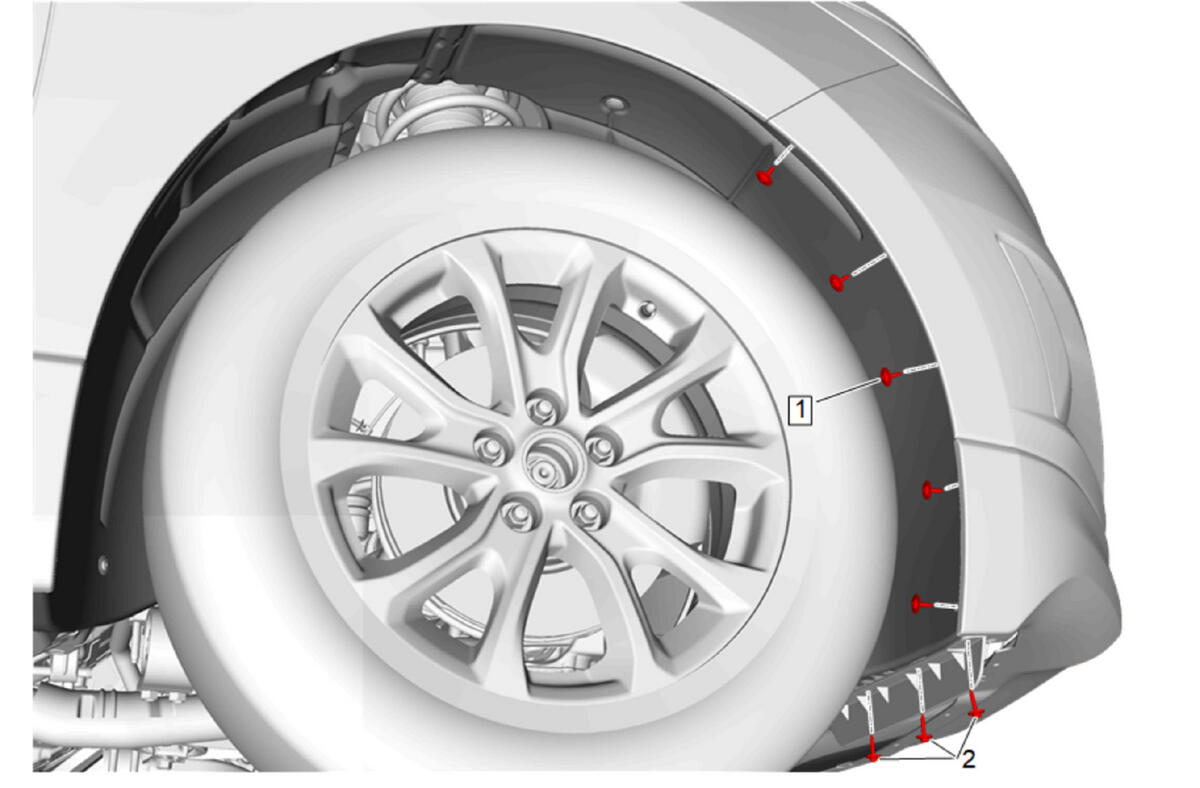

Install the 4 left side front wheelhouse bolts (1) and reposition the wheelhouse panel. Front Wheelhouse Liner Replacement - Left Side (Equinox) ,Front Wheelhouse Liner Replacement - Left Side (Terrain) .
Install the 3 left side front tire front air deflector bolts (2) and reposition. Front Tire Front Air Deflector Replacement (Equinox) ,Front Tire Front Air Deflector Replacement (Terrain) .
Courtesy of GENERAL MOTORS COMPANY

Install the 4 right side front wheelhouse bolts (1) and reposition the wheelhouse panel. Front Wheelhouse Liner Replacement - Right Side (Equinox) ,Front Wheelhouse Liner Replacement - Right Side (Terrain) .
Install the 3 right side front tire front air deflector bolts (2) and reposition. Front Tire Front Air Deflector Replacement (Equinox) ,Front Tire Front Air Deflector Replacement (Terrain) .
Courtesy of GENERAL MOTORS COMPANY

Underbody Front Air Deflector(1) - Install - Underbody Front Air Deflector Replacement (Equinox) ,Underbody Front Air Deflector Replacement (Terrain) .
Courtesy of GENERAL MOTORS COMPANY

Install the front 5 front wheelhouse opening molding retainers (1). Front Wheel Opening Molding Replacement .
