Hood Secondary Latch Release Cable Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

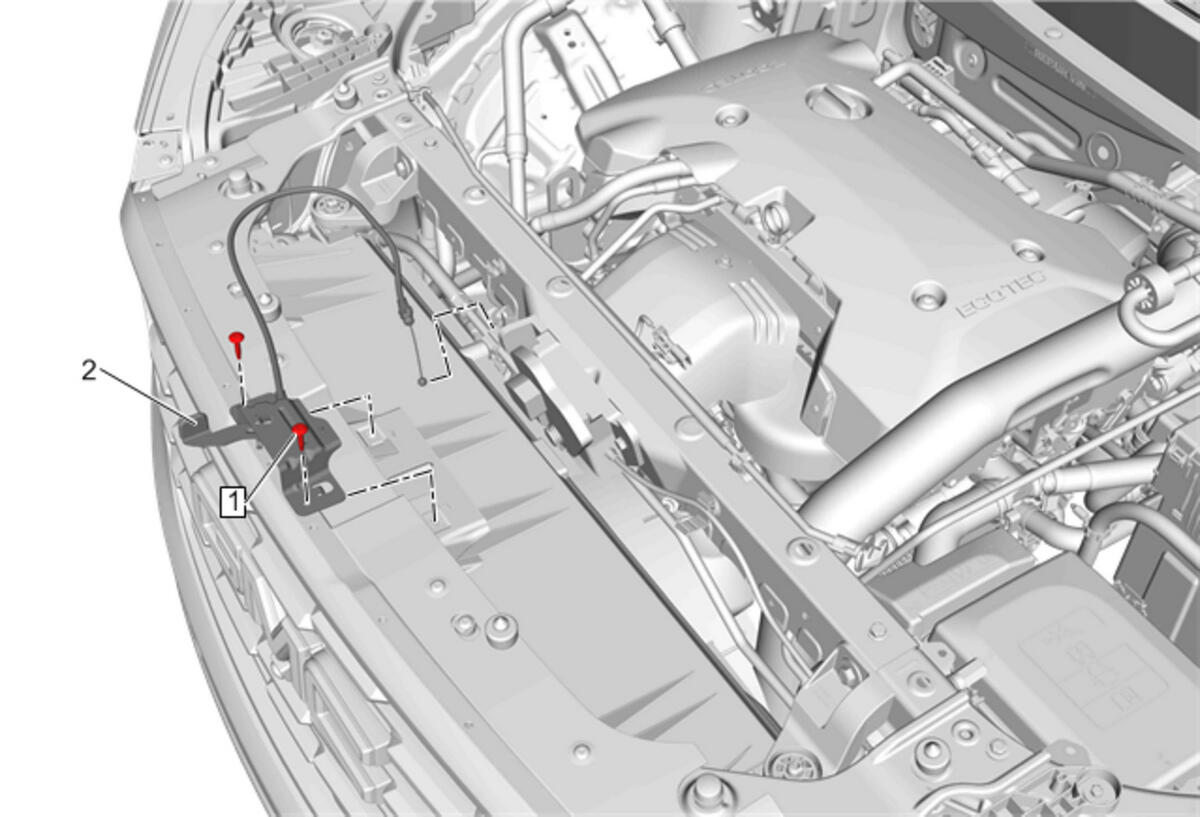

Callout	Component Name
1	Hood Secondary Latch Release Cable Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hood Secondary Latch Release Cable Procedure Disconnect the release cable from the hood primary latch. Disconnect the hood secondary latch release cable retainer from the bracket. Align the hood secondary latch release cable latch if necessary.

Callout

Component Name

Hood Secondary Latch Release Cable Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Hood Secondary Latch Release Cable

Procedure

Disconnect the release cable from the hood primary latch.
Disconnect the hood secondary latch release cable retainer from the bracket.
Align the hood secondary latch release cable latch if necessary.
