Underbody Front Air Deflector Replacement (Equinox)

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

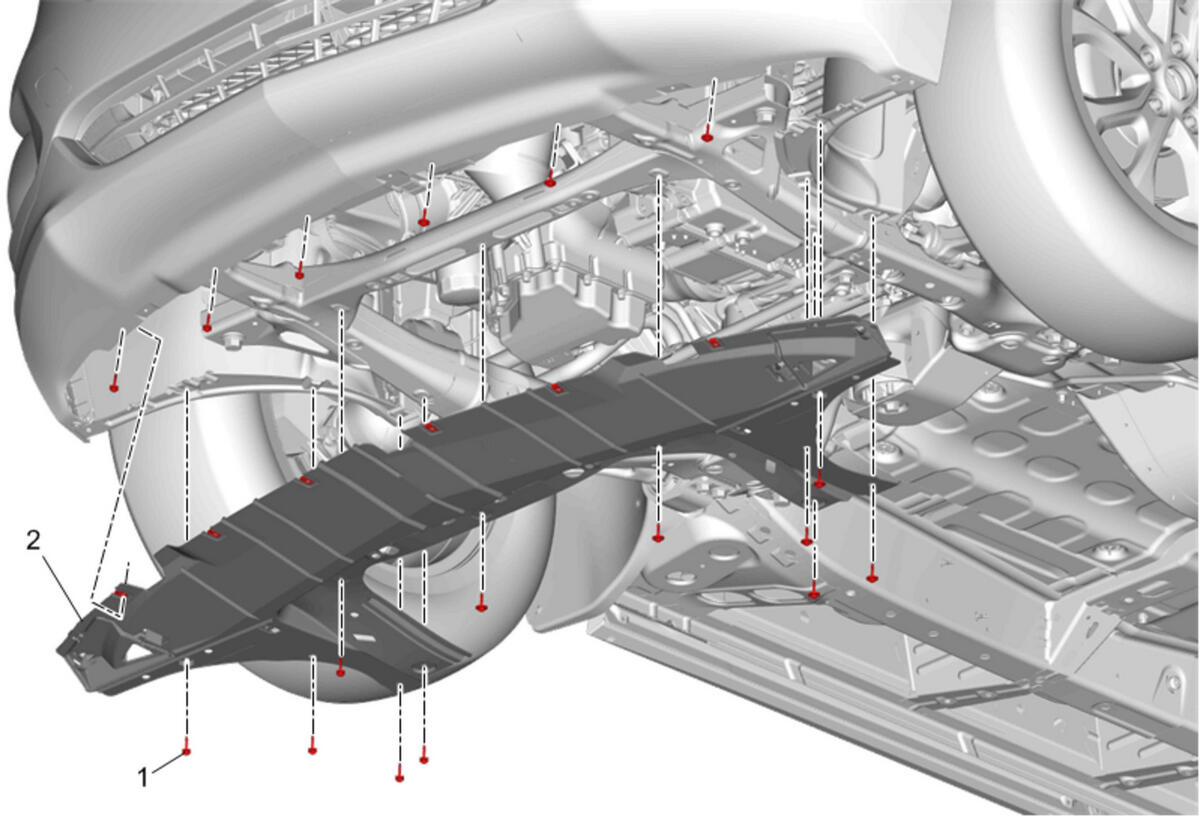

GM4573379Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Front Tire Front Air Deflector Replacement (Equinox)
1 Front Compartment Air Deflector Bolt [17x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Underbody Front Air Deflector
Procedure
  1. Pull rearward and down to remove.
  2. Remove the support and lower the vehicle.
