Front Wheelhouse Liner Replacement - Left Side (Equinox)

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

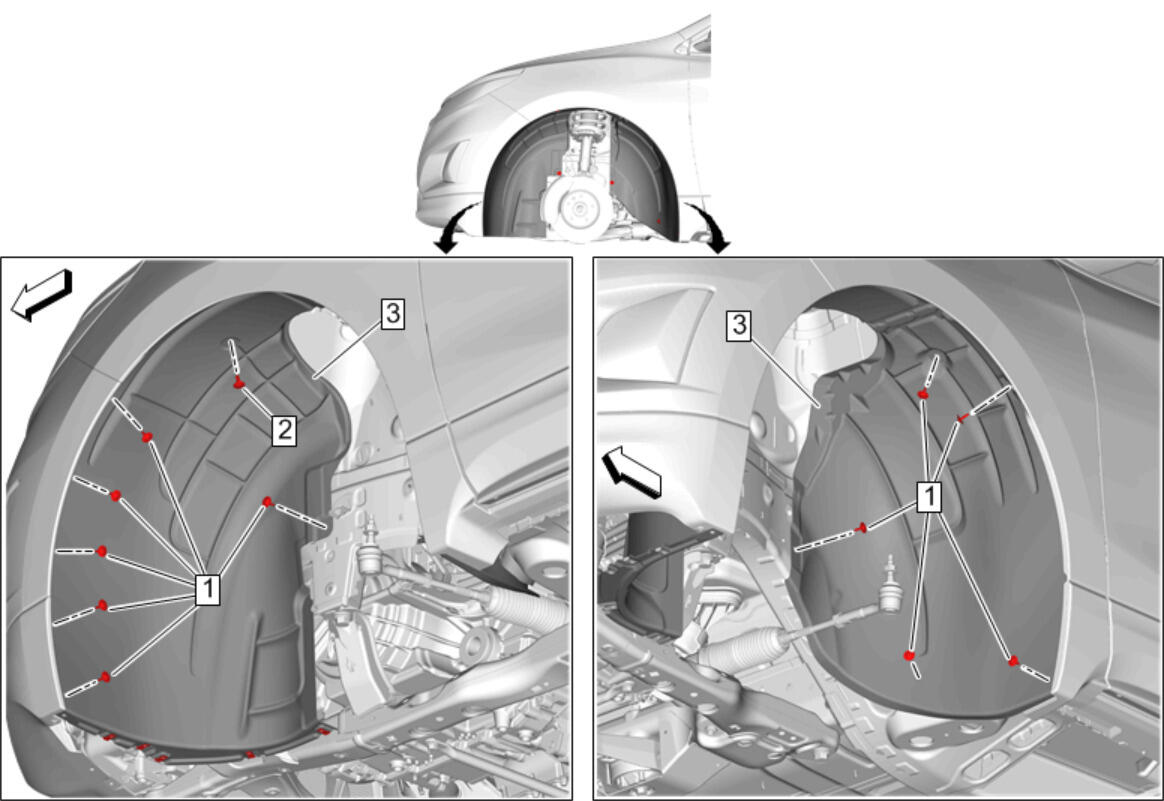

GM4569111Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Front Tire Front Air Deflector Replacement (Equinox)
  3. Underbody Front Air Deflector Replacement (Equinox)
1 Front Wheelhouse Liner Bolt [11x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Wheelhouse Liner Retainer
3 Front Wheelhouse Liner - Left Side
Procedure
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
